Wen DF402iX

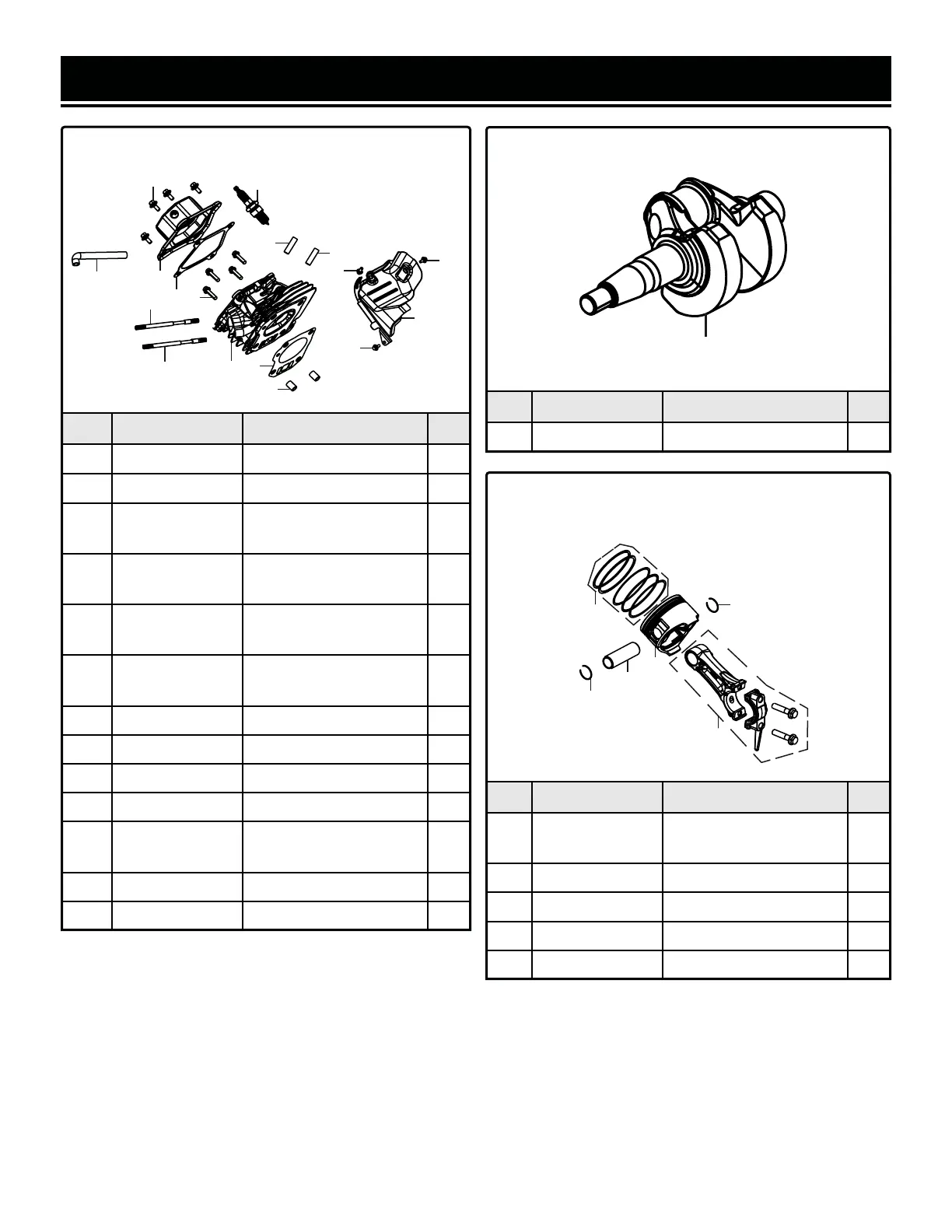

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 GN400i-0301 Breather Tube 1
3-2 56200-1202 Bolt, M6x12 4
3-3 DF402iX-0303
Cylinder Head Cover
Subassembly
1
3-4 GN400i-0304
Cylinder Head Cover
Gasket
1
3-5 56310i-0106
Cylinder Head Bolt,
M8x60
4
3-6 GN400i-0306
Cylinder Head
Subassembly
1
3-7 DF402iX-0307 Cylinder Head Gasket 1
3-8 56380i-0311 Positioning Pin 2
3-9 56310i-0109 Stud Bolt, M8x34 2
3-10 56380i-0309 Stud Bolt, M6x105 2
3-11 56310i-0104
Spark Plug, Torch
F6RTC (NGK BPR6ES)
1
3-12 56200-0706 Bolt, M6x10 3
3-13 DF402iX-0313 Cylinder Body Shroud 1
ASSEMBLY 3 - CYLINDER HEAD
No. Part No. Description Qty.
4-1 GN400i-0401 Crankshaft Assembly 1
ASSEMBLY 4 - CRANKSHAFT
No. Part No. Description Qty.
5-1 GN400i-0501
Connecting Rod
Assembly
1
5-2 56310i-0501 Piston Ring Assembly 1
5-3 GN400i-0503 Piston 1
5-4 56310i-0505 Piston Pin Clip 2
5-5 56310i-0504 Piston Pin 1
ASSEMBLY 5 - CONNECTING ROD,
PISTON, PISTON RING SET
1
1
5
7
8
4
10
10
3
2 11
9
9
12
12
13
12
6
1
5
4
2
4
3
36
