Wen DF402iX

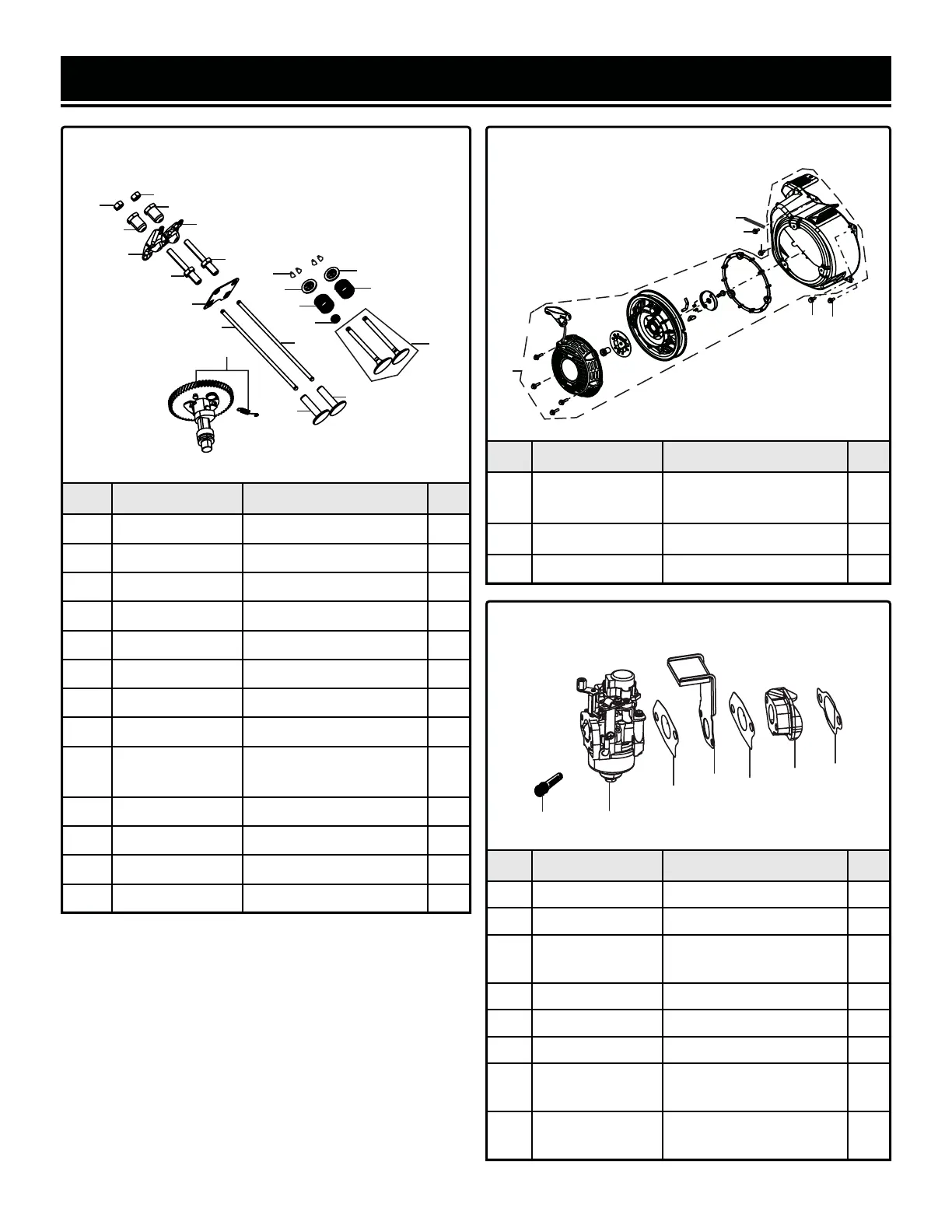

ASSEMBLY 7 - RECOIL STARTER
No. Part No. Description Qty.
6-1 GN400i-0601 Camshaft Assembly 1
6-2 GN400i-0602 Valve Lock Nut 2
6-3 GN400i-0603 Valve Adjustment Nut 2
6-4 GN400i-0604 Valve Rocker Arm 2
6-5 GN400i-0605 Rocker Shaft Bolt 2
6-6 DF402iX-0606 Lifter Stopper Plate 1
6-7 GN400i-0607 Valve Lifter 2
6-8 56310i-0607 Valve Tappet 2
6-9 GN400i-0609
Valve Set (Intake &
Exhaust)
1
6-10 56310i-0603 Seal Guide 1
6-11 56310i-0604 Valve Spring 2
6-12 56380i-0605 Valve Spring Seat 2
6-13 56310i-0606 Valve Lock Clamp 4
EXPLODED VIEW & PARTS LIST
ASSEMBLY 6 - VALVE & CAMSHAFT
No. Part No. Description Qty.
7-1 GN400i-0701
Recoil Starter
assembly
1
7-2 56200-1202 Bolt, M6x12 4
7-3 DF402iX-0703 Clip 1
No. Part No. Description Qty.
8-1 DF402iX-0801 Carburetor Insulator Gasket 1
8-2 GN400i-0802 Carburetor Insulator Plate 1
8-3 DF402iX-0803
Stepper Motor Insulating
Plate
1
8-4 DF402iX-0804 Carburetor Gasket 2
8-5 DF402iX-0805 Carburetor Assembly 1
8-6 56200-1305 Fuel Strainer 1
N.P. DF402IX-HA36
High-Altitude Kit, 3000 -
6000 ft
1
N.P. DF402IX-HA68
High-Altitude Kit, 6000 -
8000 ft
1
ASSEMBLY 8 - CARBURETOR
1
2
3
4
5
6
7
8
9
11
10
12
13
2
3
4
5
7
8
11
12
1
2
2
2
2
3
1
2
3
4
4
5
7
37
