Wen DF402iX

3938
No. Part No. Description Qty.
10-1 DF402iX-1001 Air Filter Gasket 1
10-2 GN400i-1002 Air Filter Assembly 1
10-3 56200-0506 Flanged Hex Nut, M6 2
10-4 56310i-1420 Bolt, M6x25 1
No. Part No. Description Qty.
9-1 56310i-1101 Flywheel Nut, M14-1.5 1
9-2 56200-0706 Bolt, M6x12 4
9-3 GN400i-0903 Starter Pulley 1
9-6 GN400i-0906 Impeller 1
9-7 56310i-1103
Socket Head Cap
Screw, M6x60
3
9-8 DF402iX-0908 Rotor 1
9-9 DF402iX-0909 Stator 1
9-10 GN400i-0910 Trigger 1
9-11 56310i-1106 Bolt, M5x16 2
9-12 GN400iX-0912 Flat Washer, 6mm 3

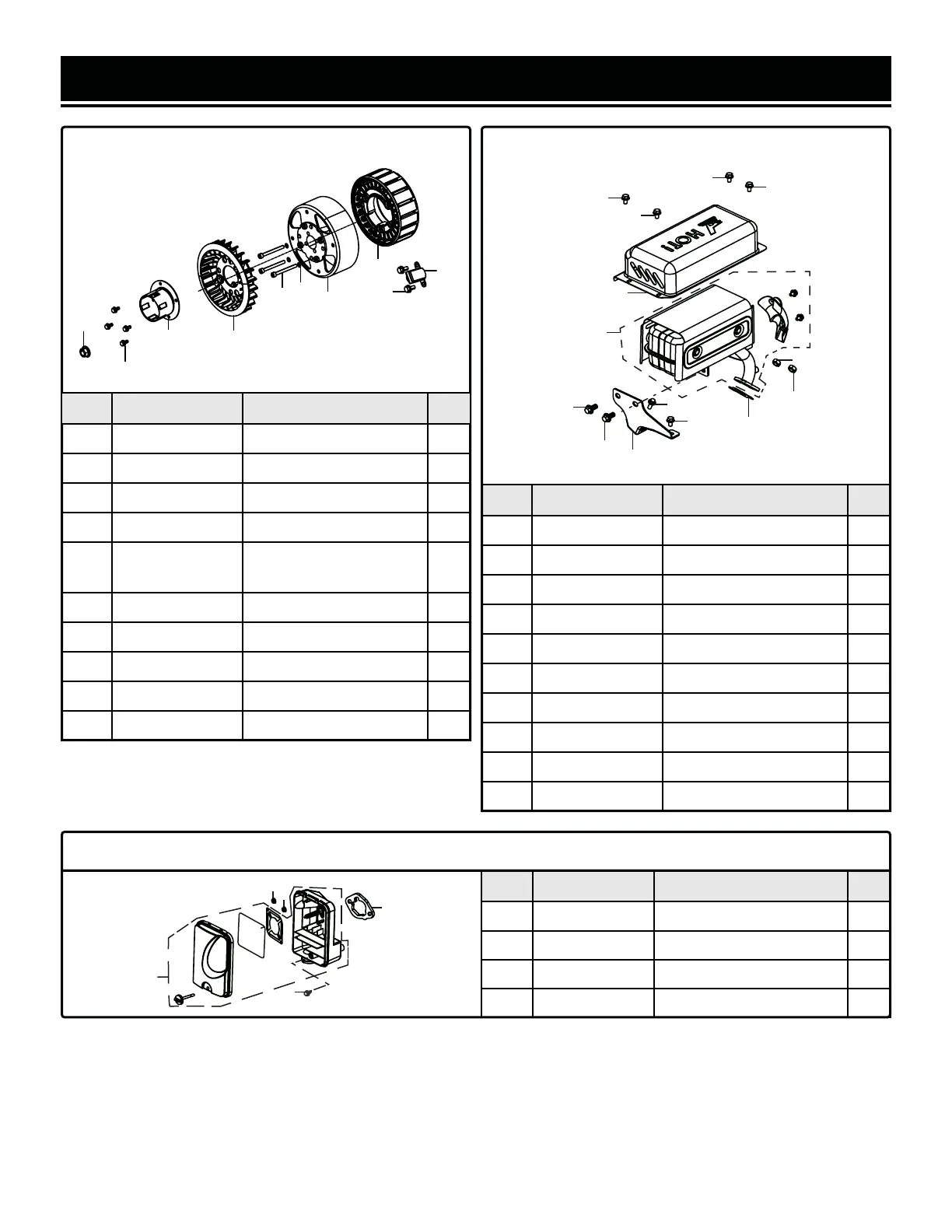

EXPLODED VIEW & PARTS LIST
ASSEMBLY 9 - FLYWHEEL, ALTERNATOR
No. Part No. Description Qty.
11-1 GN400i-1101 Muffler Assembly 1
N.P. GN400i-1101.1 Spark Arrestor 1
11-2 GN400i-1102 Outer Muffler Cover 1
11-3 GN400i-1103 Muffler Bracket 1
11-4 GN400i-1104 Bolt, M8x16 2
11-5 56200-1202 Bolt, M6x12 1
11-6 GN400i-1106 Bolt, M8x16 1
11-7 GN400i-1107 Muffler Gasket 1
11-8 GN400i-1108 Nut, M8 2
11-9 56380I-0313 Bolt, M6x12 4
ASSEMBLY 11 - MUFFLER
ASSEMBLY 10 - AIR FILTER
