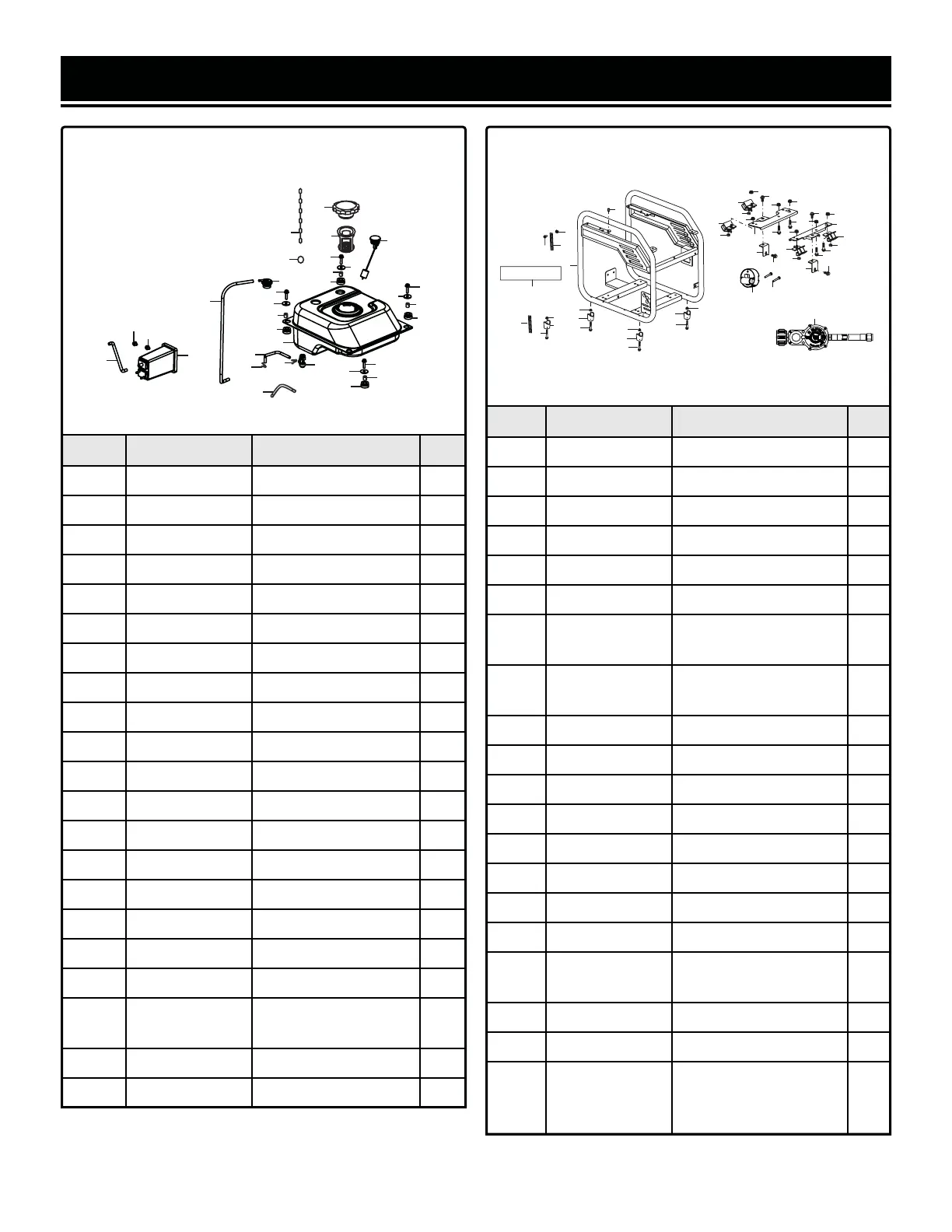

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
12-1 GN400i-1201 Fuel Tank 1
12-2 GN400i-1202 Fuel Tank Cap 1
12-3 GN400i-1203 Fuel Strainer 1
12-4 GN400i-1204 Fuel Gauge 1
12-5 GN400i-1205 Breather Valve 1
12-6 GN400i-1206B Breather Tube 1
12-7 GN400i-1207 Fuel Valve 1
12-8 GN400i-1208 Fuel Tube 1
12-9 GN400i-1209 Bolt, M6x25 4
12-10 GN400i-1210 Flat Washer 4
12-11 56380i-1207 Fuel Tank Damper 4
12-12 GN400i-1212 Carbon Tank 1
12-13 GN400i-1213 Air Filter Tube 1
12-14 GN400i-1214 Fuel Tank Cap Chain 1
12-15 DF402iX-1215 Bolt, M6x10 2
12-16 GN400i-1216 Rubber Cover 1
12-17 GN400i-1217 Fuel Tube Clamp A 1
12-18 GN400i-1218 Fuel Tube Clamp B 1
12-19 GN400iX-1219
Fuel Tank Cap Chain
Clip
1
12-20 GN400i-1220 Bushing 4
12-21 DF402iX-1221 Tube Clip 1
ASSEMBLY 12 - FUEL TANK
No. Part No. Description Qty.
13-1 DF402iX-1301 Frame Assembly 1
13-2 GN400i-1302 Foot 4
13-3 GN400i-1303 Flanged Hex Nut, M6 4
13-4 GN400i-1304 Bolt, M6x35 4
13-5 GN400i-1305 Engine Plate, Rear 1
13-6 GN400i-1306 Engine Plate, Forward 1
13-7 56310i-1409
Engine Frame
Cushion, Left
3
13-8 56310i-1411
Engine Frame
Cushion, Right
1
13-9 56310i-1404 Flanged Hex Nut, M8 11
13-10 GN400i-1310 Bolt, M8x35 4
13-11 GN400i-1311 Bolt, M6x8 1
13-12 GN400i-1312 Clip 2
13-13 GN400i-1313 Nut, M6 1
13-14 GN400i-1314 Shipping Bracket 2
13-15 GN400i-1315 Bolt, M8x16 4
13-16 GN400i-1316 Rubber Damper 1
13-17 GN400iX-1317
Pan Head Screw,
M4x25
2
13-18 GN625iX-1430 CO Sensor Module 1
13-19 GN400iX-1319 Thermal Baffle 1
13-20 DF400i-1332
Primary LPG
Regulator Hose
Assembly
1
ASSEMBLY 13 - FRAME
