Wen DF402iX

4140

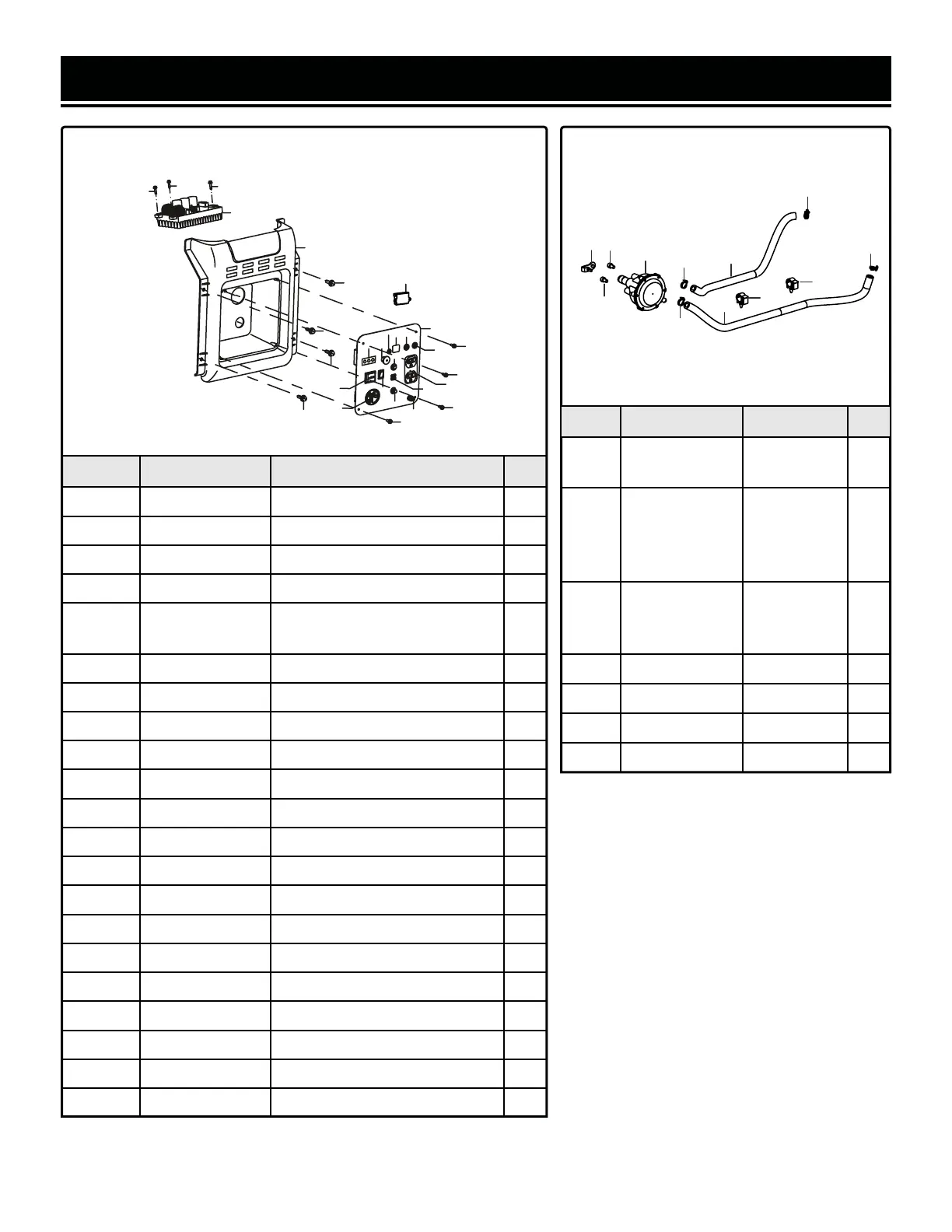

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 GN400iX-1401 Control Panel Subassembly 1
14-2 GN400i-1402 Panel Seat 1
14-3 GN400i-1403 Bolt, M6x14 4
14-4 GN400i-1404 Self-tapping Screw, ST4.2x16 4
14-5 GN625iX-1430
CO Sensor Engine Control
Module
1
14-6 GN400i-1406 Ignitor 1
14-7 GN400i-1407 Choke Button and Cable 1
14-8 GN400i-1408 Rectifier Bridge 1
14-9 56380i-1423 Parallel Port, Negative 1
14-10 56380i-1424 Parallel Port, Positive 1
14-11 GN400i-1411 Reset Button 1
14-12 56380i-1421 NEMA 5-20R Duplex Outlet 1
14-13 GN400i-1413 Grounding Nut 1
14-14 GN400i-1414 USB Port Assembly 1
14-15 GN400i-1415 AC Breaker, 20A 1
14-16 56380i-1422 Eco-Mode Switch 1
14-17 GN400i-1417 Engine Switch 1
14-18 GN400i-1418B NEMA TT-30R Outlet 1
14-19 DF402iX-1419 Inverter 1
14-20 GN400i-1420 Bolt, M6x20 3
14-21 GN400iX-1421 CO Sensor LED 1
ASSEMBLY 14 - CONTROL PANEL
1
2
3
3
3
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
No. Part No. Description Qty.
15-1 DF400i-1437
LPG Inlet
Plug
1
15-2 DF402iX-1502
Socket
Head Cap
Screw,
M6x10
2
15-3 DF402iX-1503
Secondary
LPG
Regulator
1
15-4 DF402iX-1504 Hose Clamp 4
15-5 DF402iX-1505 LPG Hose 1 1
15-6 DF402iX-1506 LPG Hose 2 1
15-7 DF402iX-1507 Hose Clip 2
ASSEMBLY 15. LPG REGULATOR
1
2
3
4
4
4
5
7
7
6
4
2
