Fig. 16
CHECKING/ADDING OIL
Check the oil level before each use and every 8 hours of operation.
The oil capacity of the generator engine is 20.3 fl. ounces (0.6 L). Add oil when the oil level is low. For proper type
and weight of oil refer to “add oil” portion of the “Generator Preparation” section. This is a critical step for proper
engine starting. The generator is equipped with an automatic shutoff to protect it from running on low oil.
To check the oil level and add oil:
1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will flow into engine areas and cause
damage. Keep generator level!
2. Clean around the oil fill. Remove the dipstick and wipe the it with a clean rag.
3. Insert the dipstick into the oil fill opening without screw-
ing in. Remove the dipstick to check the oil mark (Fig. 15).
Add oil if the oil mark covers less than one half of the dip-
stick.
4. Using a funnel or appropriate dispenser, slowly add more
oil. Repeat step 3 until the oil mark reaches the top of the
dipstick (you can see oil coming up the threads of the oil
fill). Do not over fill.
5. Reinstall dipstick and wipe clean any spilled oil with a rag.
Reinstall the oil access cover.
DRAINING/CHANGING OIL
Change the oil according to the Recommended Mainte-
nance Schedule.
Change the oil more often if operating under heavy load or
high ambient temperatures. It is also necessary to drain the
oil from the crankcase if it has become contaminated with
water or dirt. Changing the oil when the engine is warm al-
lows for complete drainage.
To drain the oil from the generator:
1. Place generator on elevated platform. Prepare an ap-
proved gasoline-storage container underneath the oil drain
bolt next to the oil dipstick to catch the oil as it drains.
2. Unscrew the oil drain bolt (Fig. 16) and allow oil to drain
from the engine completely.
3. Reinstall the oil drain bolt and tighten it securely. Wipe
clean any oil spillage.
NOTE: Never dispose of used engine oil in the trash or down
a drain. Please call a local recycling center or auto garage to
arrange proper oil disposal.
MAINTENANCE

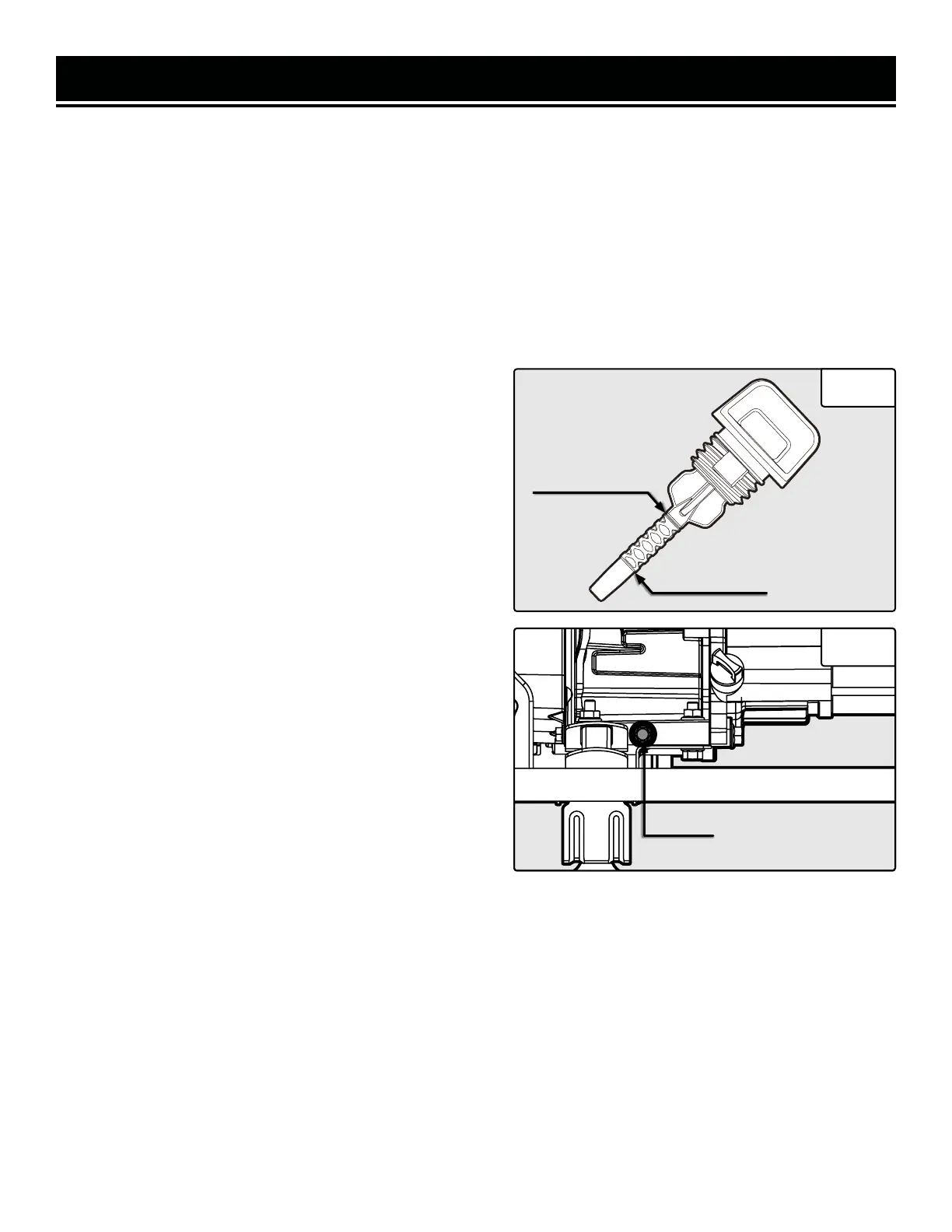

Fig. 15
28
Lower Limit
Upper Limit
Oil Drain Bolt
