Wen DF451i User Manual

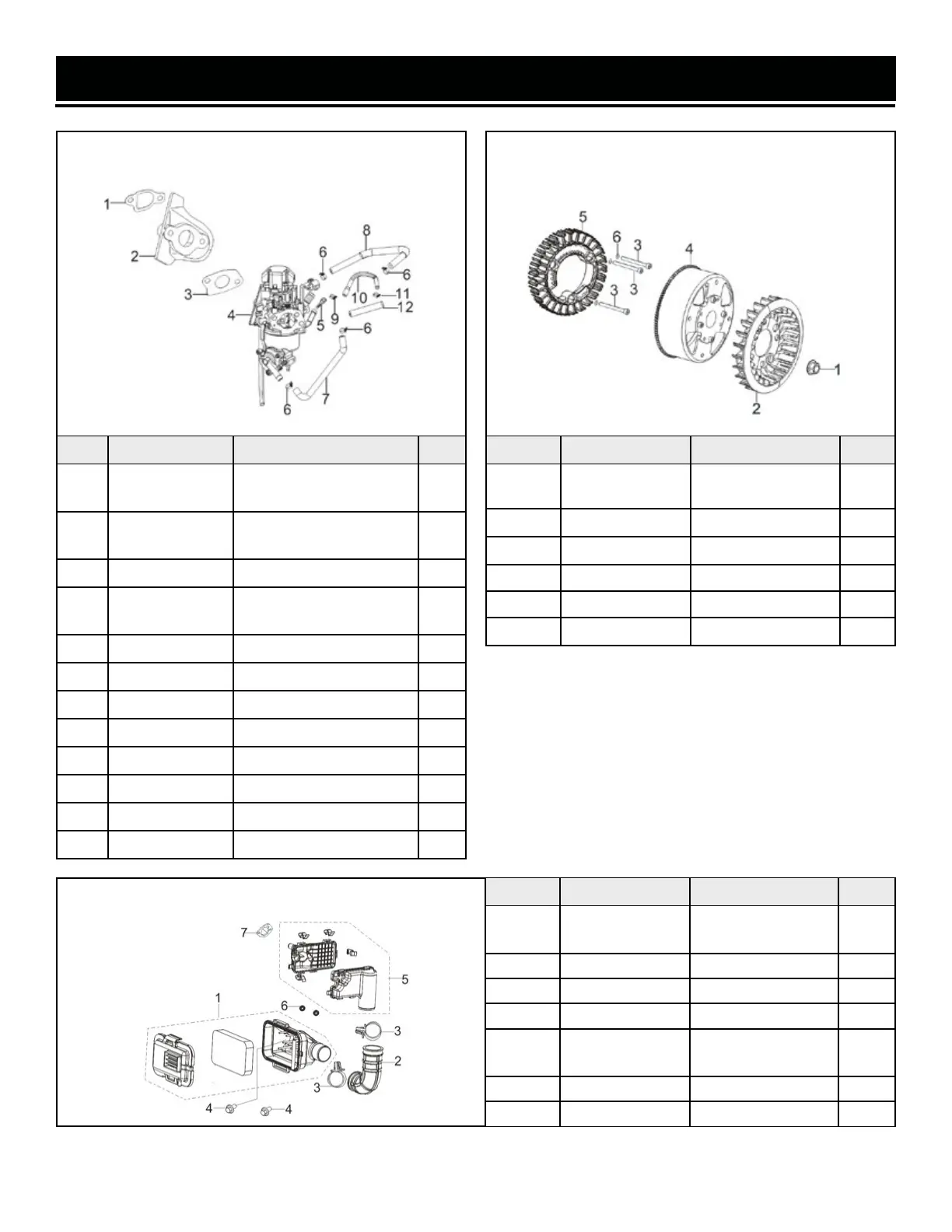

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
8-1 56380i-0801
Gasket, Carburetor
Insulator
1
8-2 56380i-0802
Carburetor Insulator
Plate
1
8-3 56380i-0803 Gasket, Carburetor 1
8-4 DF400i-0804
Carbureto
Assembly
1
8-5 56200-1305 Fuel Strainer 1
8-6 DF400i-0806 Clamp 4
8-7 DF400i-0807 Pressure Hose 1 1
8-8 DF400i-0808 Pressure Hose 2 1
8-9 56380i-0805 Clamp 1
8-10 56380i-0806 Fuel Tube 1
8-11 DF400i-0811 Clamp 1
8-12 DF400i-0812 Rubber Jacket 1
No. Part No. Description Qty.
10-1 56310i-1101
Flywheel Nut, M14-
1.5
1
10-2 56380i-0902 Impeller 1
10-3 56310i-1103 Bolt, M6x60 3
10-4 56380i-0904 Rotor 1
10-5 56380i-0905 Stator 1
10-6 56380i-0906 Flat Washer, 6mm 3
No. Part No. Description Qty.
10-1 DF400-1001
Air Filter
Assembly
1
10-2 56380i-1002 Intake Tube 1
10-3 56380i-1003 Intake Tube Clamp
2
10-4 56310i-1701 Bolt
2
10-5 56380i-1005
Secondary Air
Filter
1
10-6 56200-0506 Nut
2
10-7 56310i-0901 Gasket, Air Filter
1
FIG. 8. CARBURETOR ASSEMBLY FIG. 9. FLYWHEEL, IMPELLER,
STARTER PULLEY, IGNITION COIL
FIG. 10. AIR FILTER
45
