No. Part No. Description Qty.

11-1 DF400i-1101 Shroud 1

11-2 56380i-1102B Mufﬂer Cover Support 1

11-3 56380i-1103 Impeller 1

11-5 56380i-1105 Mufﬂer Insulation Plate 1

11-6 56380i-1106 Mufﬂer Assembly 1

11-7 56310i-1010 Gasket, Mufﬂer 2

11-8 56380i-1108 Nut, M8 1

11-9 56310i-1009 Bolt, M8x16 5

11-11 56310i-1004 Bolt, M8x20 1

11-12 56380i-1112 Bolt, M6x35 1

11-13 DF400i-1113 Bolt, M6x12 2

11-14 56380i-1114 Bolt, PT4x13 1

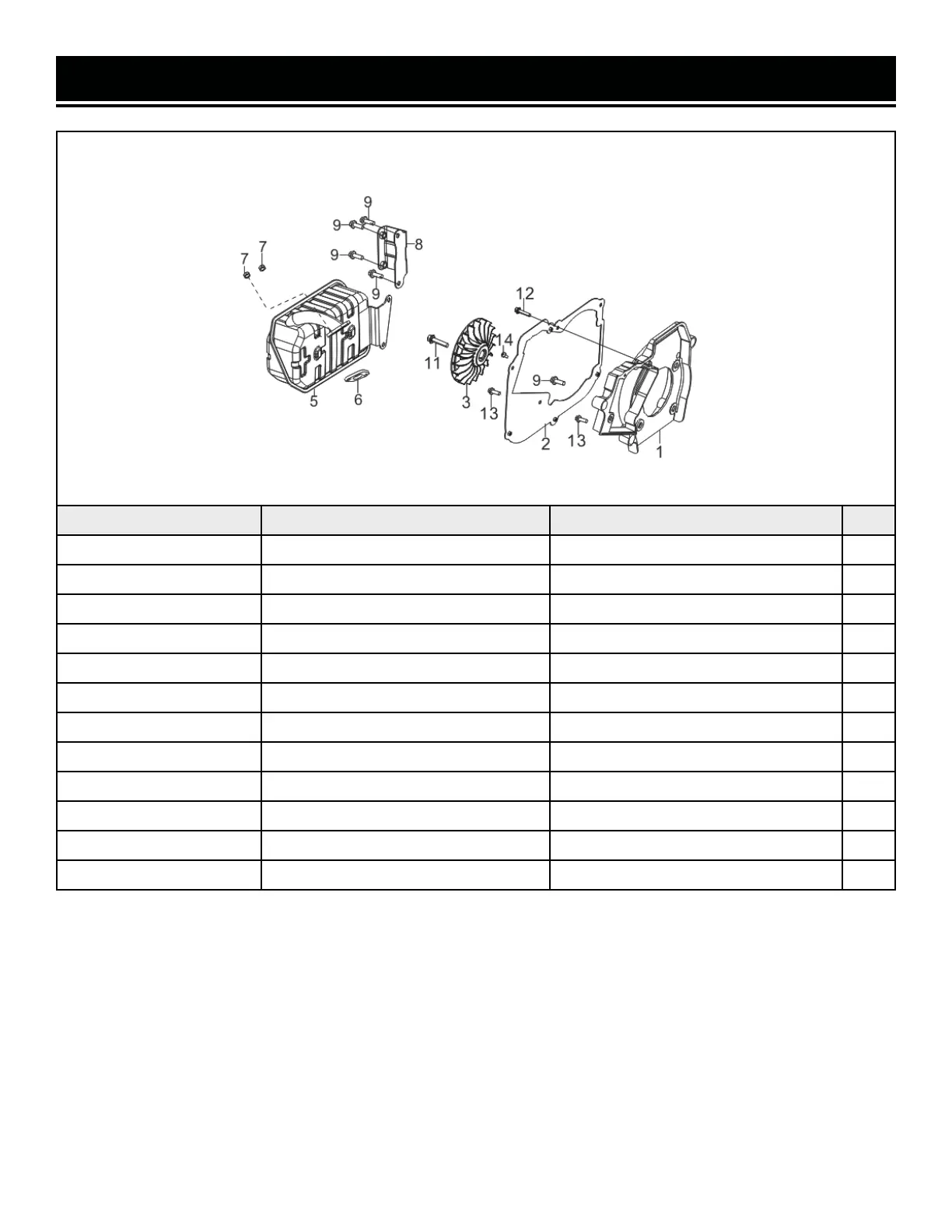

EXPLODED VIEW & PARTS LIST

FIG. 11. MUFFLER ASSEMBLY
