Wen DF451i User Manual

No. Part No. Description Qty.
13-1 56380i-1301B
Engine Frame As-
sembly
1
13-2 56380i-1302 Battery Case 1
13-3 56200-1202 Bolt, M6x12 14
13-4 56380i-1304 Battery, 12V, 1.6Ah 1
13-5 56380i-1305 Battery Bracket 1
13-6 56380i-1306B
Anode Wire (Nega-
tive)
1
13-7 56380i-1307
Cathode Wire
(Positive)
1
13-8 56310i-1420 Bolt, M6x25 3
13-9 56310i-1419 Bushing 3
13-10 56310i-1421 Rubber Jacket 3
13-11 56450i-1311 Inverter 1
13-12 56310i-1201 Bolt, M6x16 1
13-13 56380i-1313 Rubber Jacket 1
13-14 56380i-1314
Carbon Tank
Mounting Bracket
1
13-15 DF400i-1315 Carbon Tank 1
Fig. No. Part No. Description Qty.
13-16 56380i-1316
Carbon Tank Hose,
Primary
1
13-17 56380i-1317B Air Filter Hose 1
13-18 56380i-1318
Carbon Tank Hose,
Secondary
1
13-19 56380i-1319 Clamp 2
13-20 56380i-1321 Clamp 2
13-21 DF400i-0812 Rubber Jacket 1
13-22 56310i-1009 Bolt, M8x16 2
13-23 56380i-1323 Front Handle 1
13-24 56380i-1324 Handle 1
13-25 56380i-1325 Bolt, M8x30 2
13-26 56380i-1326 Screw, M4x8 1
13-27 56380i-1327 Grounding Wire 1
13-28 DF400i-1328 LPG Regulator 1
13-29 DF400i-1329 Hose Clamp 1
13-30 DF400i-1330 LPG Hose 1
13-31 DF400i-1331 Rubber Jacket 1
N.P. DF400i-1332
Primary LPG
Regulator Hose
Assembly
1

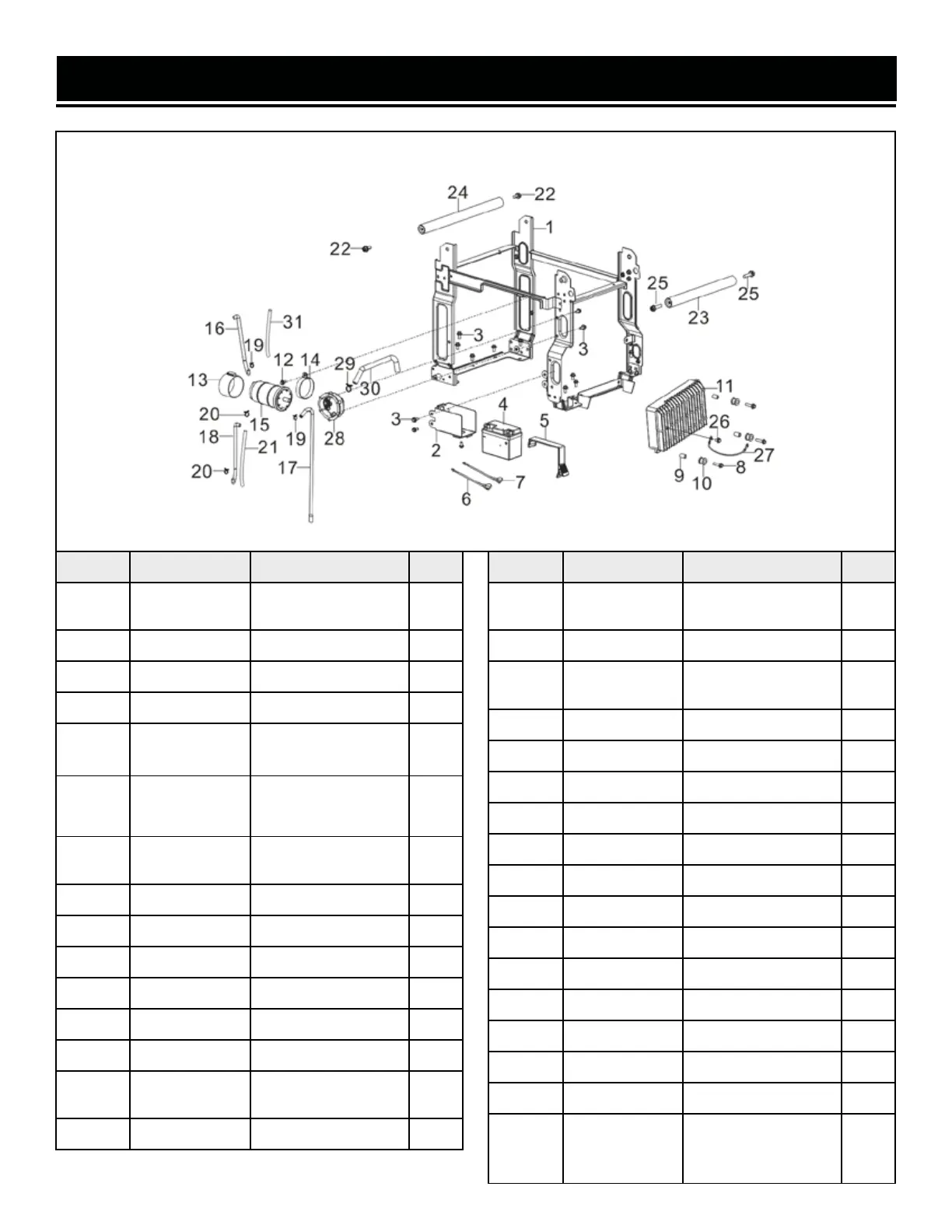

EXPLODED VIEW & PARTS LIST
FIG. 13. FRAME
