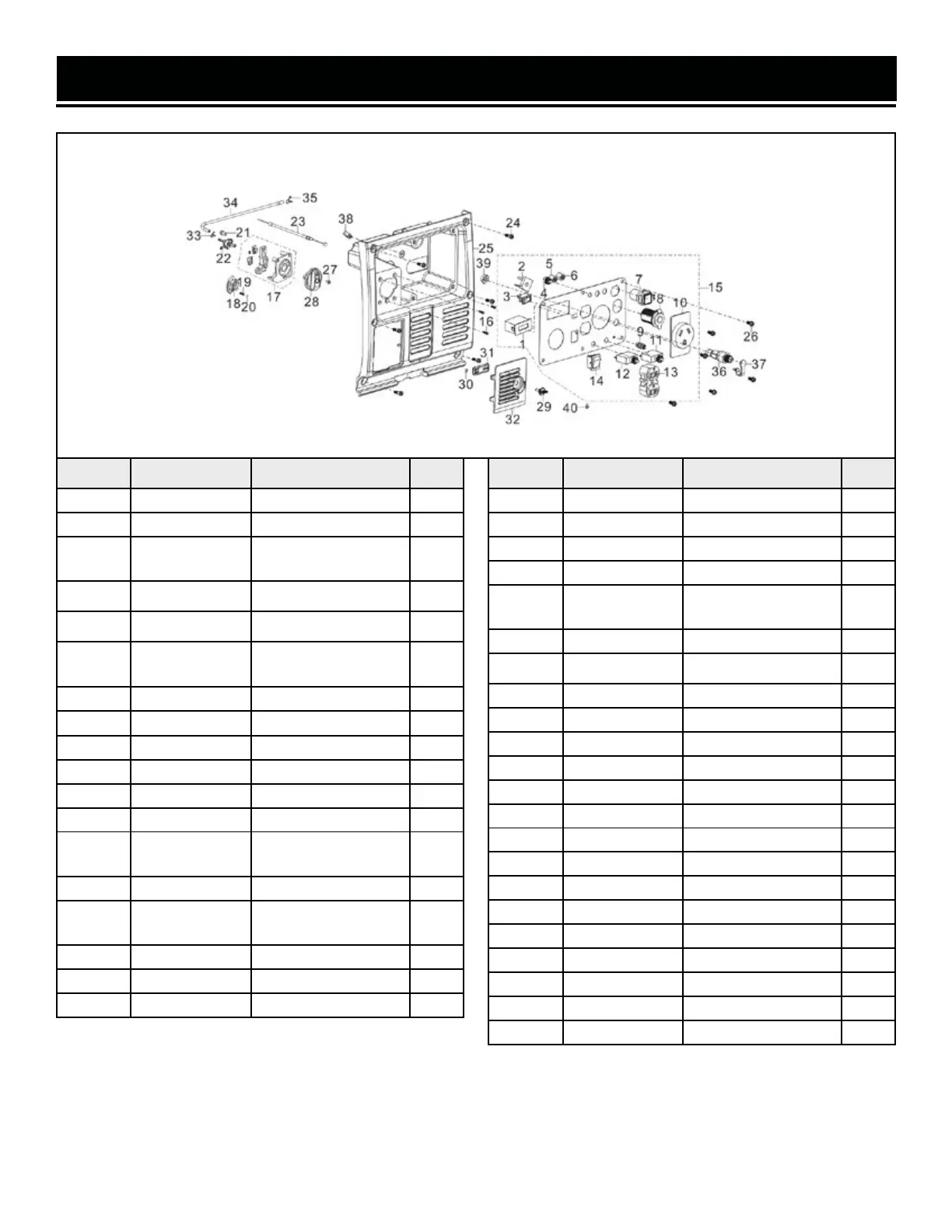

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 56380i-1419 Multi-meter 1
14-2 56380i-1432 Rectifier Bridge 1
14-3 56380i-1422
Eco-Mode Switch
Subassembly
1
14-4 56380i-1420 Reset Button 1
14-5 56380i-1424 Parallel Port, Positive 1
14-6 56380i-1423
Parallel Port,
Negative
1
14-7 56380i-1426 USB Outlet 1
14-8
56380i-1425
12V DC Outlet 1
14-9 56380i-1427 Grounding Nut 1
14-10 56380i-1428 NEMA TT-30R Outlet 1
14-11 56380i-1429 DC Breaker, 10A 1
14-12 56380i-1430 AC Breaker, 20A 1
14-13 56380i-1421
NEMA 5-20R Duplex
Outlet
1
14-14 DF400i-1414 Engine Switch 1
14-15
DF400i-
1415ASM
Control Panel
Assembly
1
14-16 56200-0615 Screw, ST4.2x16 3
14-17 56380i-1402 Switch Subassembly 1
14-18 56200-0621B Cover Plate 1
No. Part No. Description Qty.
14-19 56200-0624B Adjustment Spring 1
14-20 56200-0623 Steel Ball 1
14-21 56200-0502 Bolt, M6x14 1
14-22 56200-0628 Fuel Cock Assembly 1
14-23 56310i-1628B
Choke Handle
Subassembly
1
14-24 56380i-1409 Bolt, M5x16 6
14-25 DF400i-1425 Panel Seat 1
14-26 56200-0302 Screw, M5x12 6
14-27 56200-0514 Screw, M4x16 1
14-28 DF400i-1428 Knob 1
14-29 56200-0425B Bolt, M5x16 1
14-30 56200-0427B Nylon Nut, M5 1
14-31 56380i-1417 Blocker 1
14-32 56380i-1418 Battery Cover 1
14-33 DF400i-0811 Clamp 1
14-34 56380i-1434 Fuel Tube 1
14-35 56380i-0805 Clamp 1
14-36 DF400i-1436 LPG Inlet 1
14-37 DF400i-1437 LPG Inlet Plug 1
14-38 DF400i-1438 Clamp 1
14-39 DF400i-1439 Nut, M14-1.5 1
14-40 56380i-1326 Screw, M4x8 1
FIG. 14. CONTROL PANEL
