Long-Range Laser Distance Sensors
Order No.
Technical Data
P1PY
101 111 102 103 113 104 107 108
Setting range 50 – 10,000 mm —
Measuring range — 50 – 10,000 mm
Switching hysteresis < 15 mm —
Current consumption (operat-
ing voltage = 24 V)
< 35 mA < 40 mA
Switching frequency 50 Hz* —
Response time 15 ms —
Measuring rate — 100/s*
Acceleration sensor — Yes — — Yes — —
Connection diagram no. 243 241 242
Connection type 1x M12; 5-pin
Cable with
1×M12
5-pin plug
1×M12; 5-pin
Cable with
1×M12
5-pin plug
1×M12;
5-pin
1×M12;
5-pin
Cable length (L) — 500 mm — 500 mm — —
Output function 2× PNP NO 2× NPN NO
Analog
0 – 10 V
Analog
4 – 20 mA
MTTFd (EN ISO 13849-1) 574,59 a 543,26 a 574,59 a 574,59 a 543,26 a 574,59 a 508,83 a 512,61 a
Depends on mode, see chapter “3.4 Mode-Dependent Data” on page 10

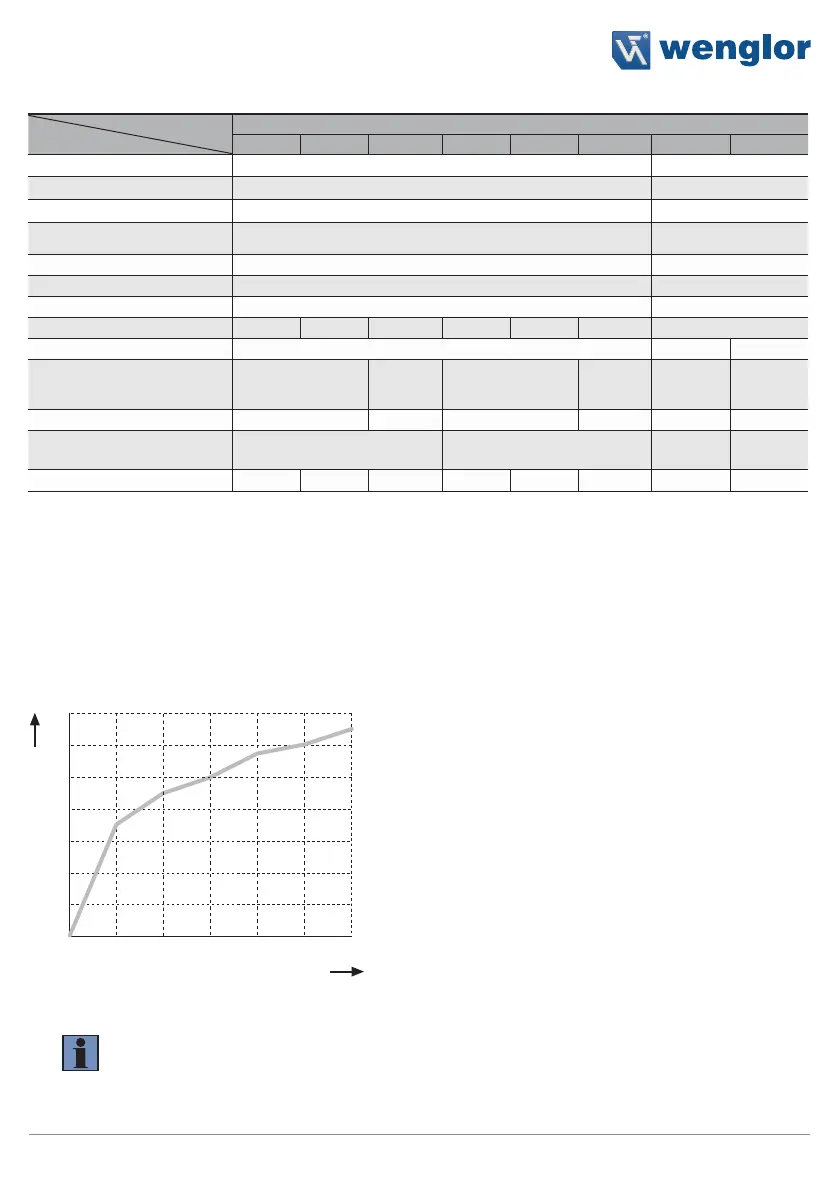

3.2 Warm-up phase
The warm-up phase lasts 6 minutes. The switching on drift during that time can be seen in the following
diagram.
060 120 180 240300
–7
–5
–6
–4
–3
–2
Time in sec.
Typ. deviation in mm
–1
Switching On Drift
360
0
NOTE!
Specifiations related to the measured value without load. For the analog versions this spec-
ification can deviate due to the load on the analog output.
