Werner Weitner WW-1 - Page 10

Seite 10 von 18 WH-1, WH-2, WH-3, WH-4
Operating Instructions
hydraulic handpump
1 - 9
10 - 18
WW – WH – 1
WW – WH – 2
WW – WH – 3
WW – WH – 4

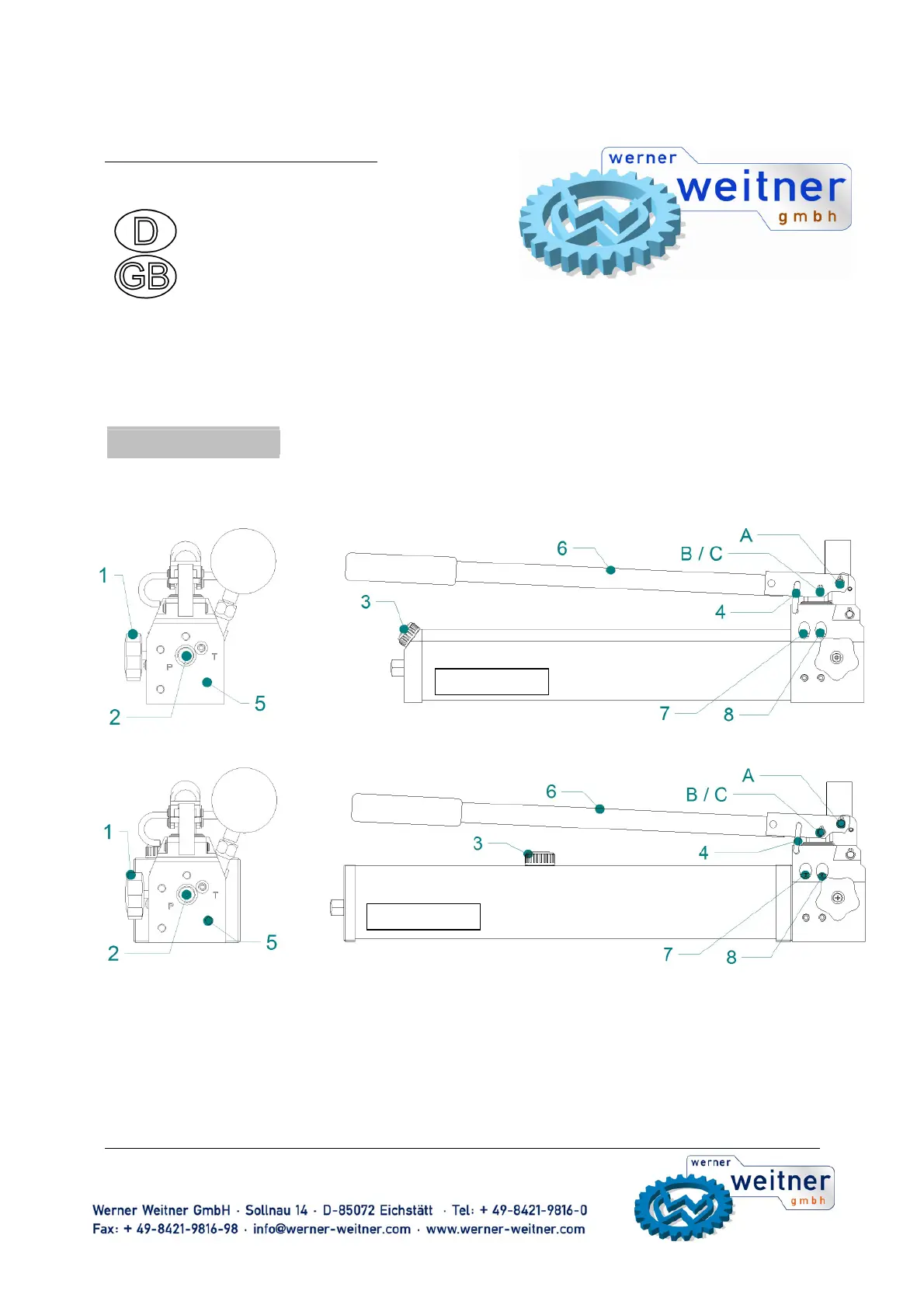

1 drain valve
2 Connection P (NPT 3/8”)
3 Venting- / filling cap
4 locking mechanism
5 Fixing holes for respectively
6 Pump lever
7 low pressure valve 290 psi
Issue 02.10
WH
-
1 / WH
-
2
WH
-
3 / WH
-
4
