WERTHEIM SE2000 - Filling the Water Tank; Using the Extractor

Carpet Shampooer SE2000
7

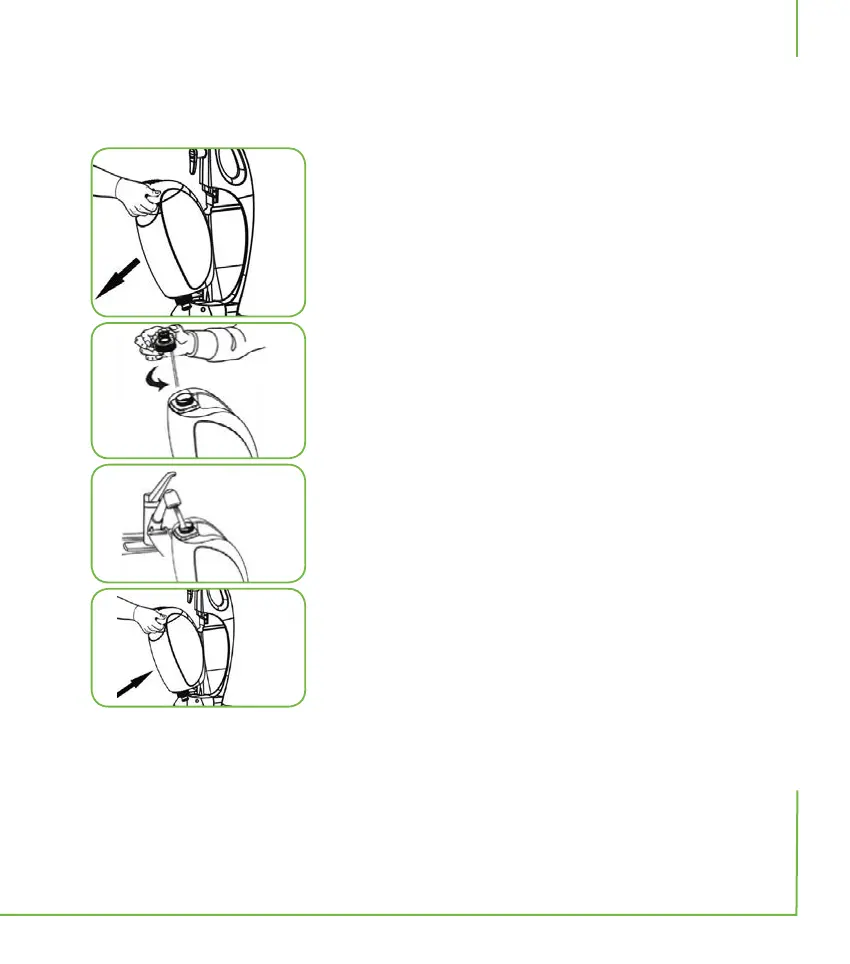

Filling the Water Tank
1. Hold the fresh water tank by the handle
and pull up the unlocking lever. The tank is
released from the locking mechanism.
2. Remove the fresh water tank from the
appliance.
3. Unscrew the ring cap on the bottom of
the tank and remove the valve together
with the water hose.
4. Add solution into the tank. Note: The dosage
of the cleaning solution.
5. Fill the fresh water tank up to the MAX lling
line with warm water (max. 38°C). Preferably
use distilled water to prevent calcication.
6. Then close the tank using the valve and ring
cap.
7. Insert the fresh water tank into the
centrepiece.
Using the Extractor
IMPORTANT: Never leave the appliance unattended with the power on.
Turn off when emptying and lling tanks. Do not oversaturate the carpet.
Note: Cleaning solution may leak out of the shampooer once it is
