6. Attach the Storage Latch (14) to the left Upright (11) with
two Screws (80). Do not overtighten the Screws.
Tighten all of the bolts used in steps 3 and 4.
Place the 3-lb. Weights (79) in the center of the Weight
Rack (90). Place the 2-lb. Weights and the 1-lb. Weights
(not shown) beside the 3-lb. Weights.
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the
floor or carpet, place a mat under the treadmill.
80
14
11
79
90
6
5. Place the Console Base (46) on the Uprights (11) (only
the right Upright is shown). Make a loop with the indi-
cated plastic tie and insert the two Wires (21) through the
loop. Pull the plastic tie tight and cut off the end. Connect
the two Wires to the connectors in the Console Base.
Important: Make sure that the Wires are fully in-
serted. WARNING: Do not disconnect or connect the
Wires while the treadmill power cord is plugged in.
Thread four Screws (80) into the Uprights (11) and the
Console Base (46). After all four Screws have been
started, tighten the Screws until they are snug; do not
overtighten the Screws.
80
Tie
21
Connectors
46
11
5

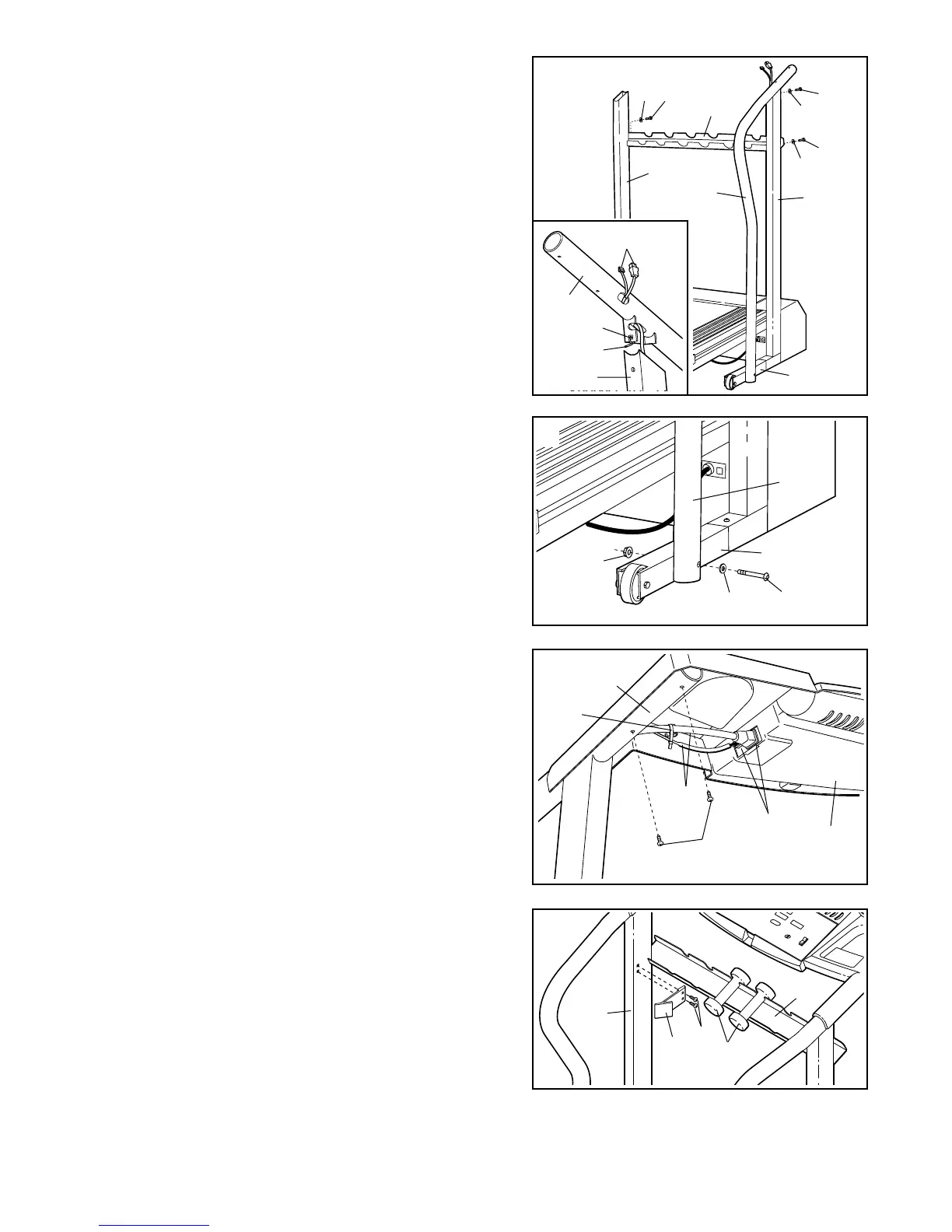

3. Attach the Weight Rack (90) to the Uprights (11) with two
Rack Bolts (89) and two Washers (39). Do not tighten
the Rack Bolts yet. Note: It may be necessary to spread
the Uprights apart slightly to align the holes in the Weight
Rack with the holes in the Uprights.
Refer to the inset drawing. If there is a plastic tie holding
the Cage Nut (70) in the Right Handrail (88), remove the
plastic tie. Feed the Wire Harness (21) in the right Upright
(11) up through the Right Handrail as shown. Note: It may
be helpful to use needlenose pliers to pull the Wire
Harness out of the hole in the Right Handrail.
Insert the bracket on the Right Handrail (88) into the
upper end of the right Upright (11), with the lower end of
the Right Handrail on the side of the Extension Leg (34)
as shown. Hand tighten a Short Handrail Bolt (89) with a
Washer (39) into the upper end of the Upright.
11
89
89
39
39
89
39
90
34
88
11
3
4. Attach the lower end of the Right Handrail (88) to the
Extension Leg (34) with a Handrail Bolt (91), a Handrail
Washer (92), and a Handrail Nut (93) as shown. Do not
tighten the Handrail Bolt yet. Note: It may be neces-
sary to push on the lower end of the Handrail to align the
hole in the Handrail with the hole in the Extension Leg.
Attach the Left Handrail to the left Extension Leg (not
shown) as described in steps 3 and 4.
4
92
91
93
34
88
6
21
88
70
Tie
11
To Next Page
