ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , and wire cutters .

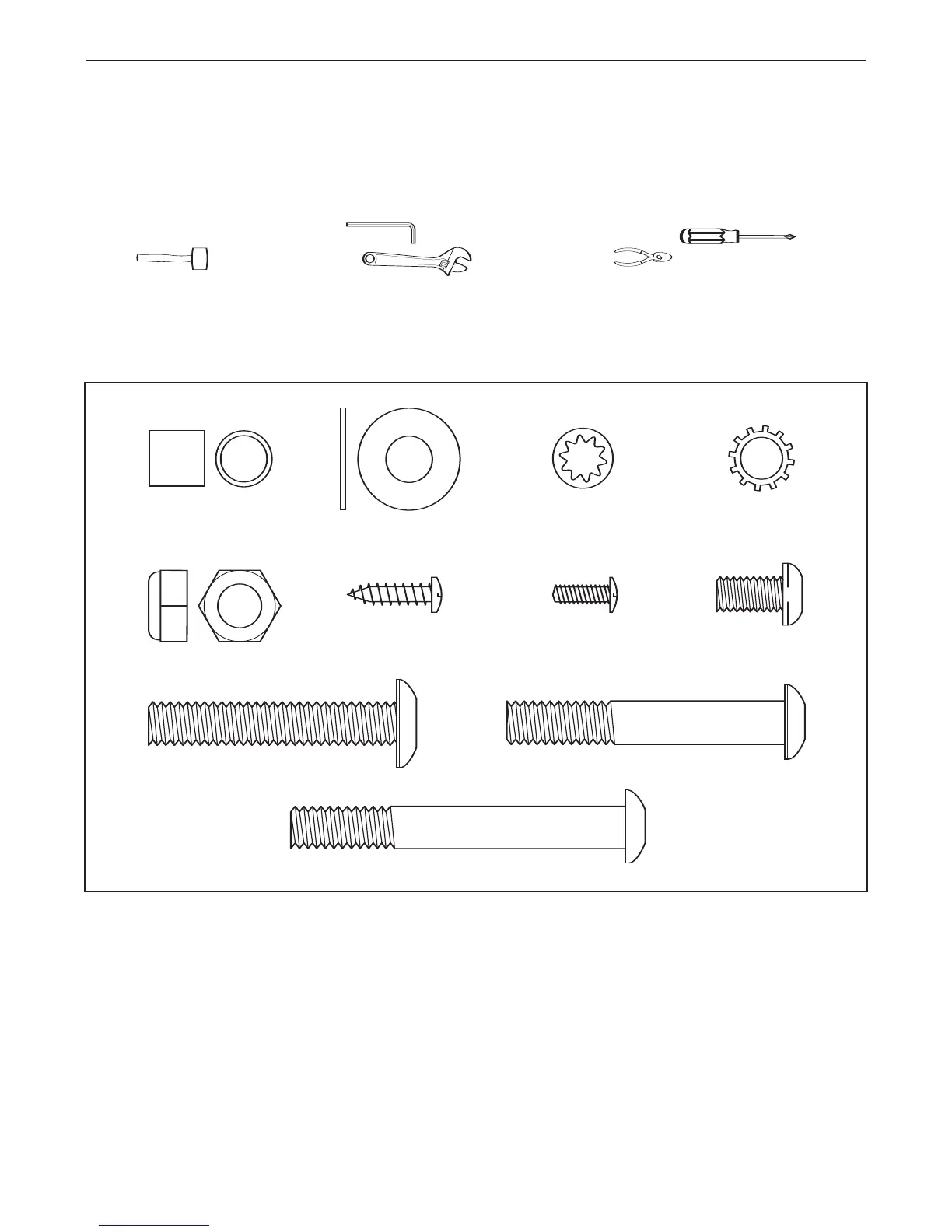

For help identifying the assembly hardware, see the drawings below.
The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 24. The number following the parentheses is
the quantity needed for assembly.
Note: If a part is not in the parts bag, check to see if it has been preassem-
bled. To avoid damaging plastic parts, do not use power tools for assembly.
1/2” Screw (119)–1
3/4” Tek Screw (58)–8
1
Écrou (12)–4
Vis de 3/4" (3)–8
Boulon du Montant (4)–4
Rondelle du
Montant (7)–2
H
Vis de Mise à Terre
en Argent (10)–2
Rondelle Étoilée
du Montant (6)–4
L
Rondelle Étoilée
de la Rampe
(11)–4
Boulon de la
Rampe (9)–4
Bague
d’Espacement de
la Roue (94)–4
F
Boulon du Cadre(1)–2
Boulon de la Roue(5)–2
6
