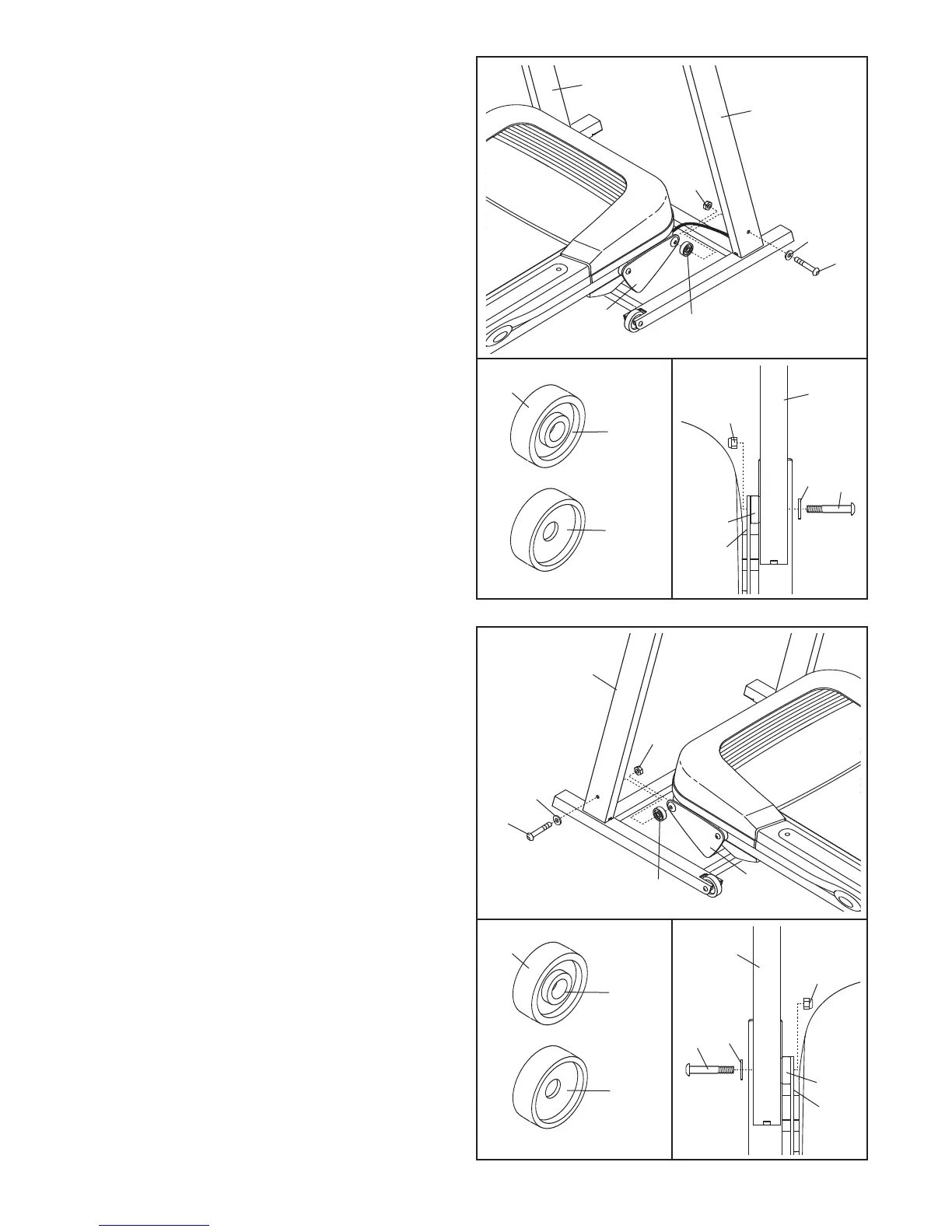

4. See the left inset drawing. Identify the two Frame
Spacers (45). Open the included packet of
g
rease, and apply grease to both sides of both
Frame Spacers. Next, identify the outer side of
e
ach Frame Spacer.
Hold a Frame Spacer (45) between the Right
Upright (39) and the Lift Frame (41), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a Frame Bolt (1), an Upright
Washer (7), and a Nut (12);
do not tighten the
Nut yet.
4
38
39
1
1
45
45
7
12
1
2
41
7
41
Outer
Side
Inner
Side
45
39
5. Hold the remaining Frame Spacer (45) between
the Left Upright (38) and the Lift Frame (41),
with the outer side of the Frame Spacer fac-
ing the Left Upright. Attach the Left Upright to
the Lift Frame with a Frame Bolt (1), an Upright
Washer (7), and a Nut (12); do not tighten the
Nut yet.
5
38
1
1
45
45
7
12
12
41
7
41
Outer
Side
Inner
Side
45
38
