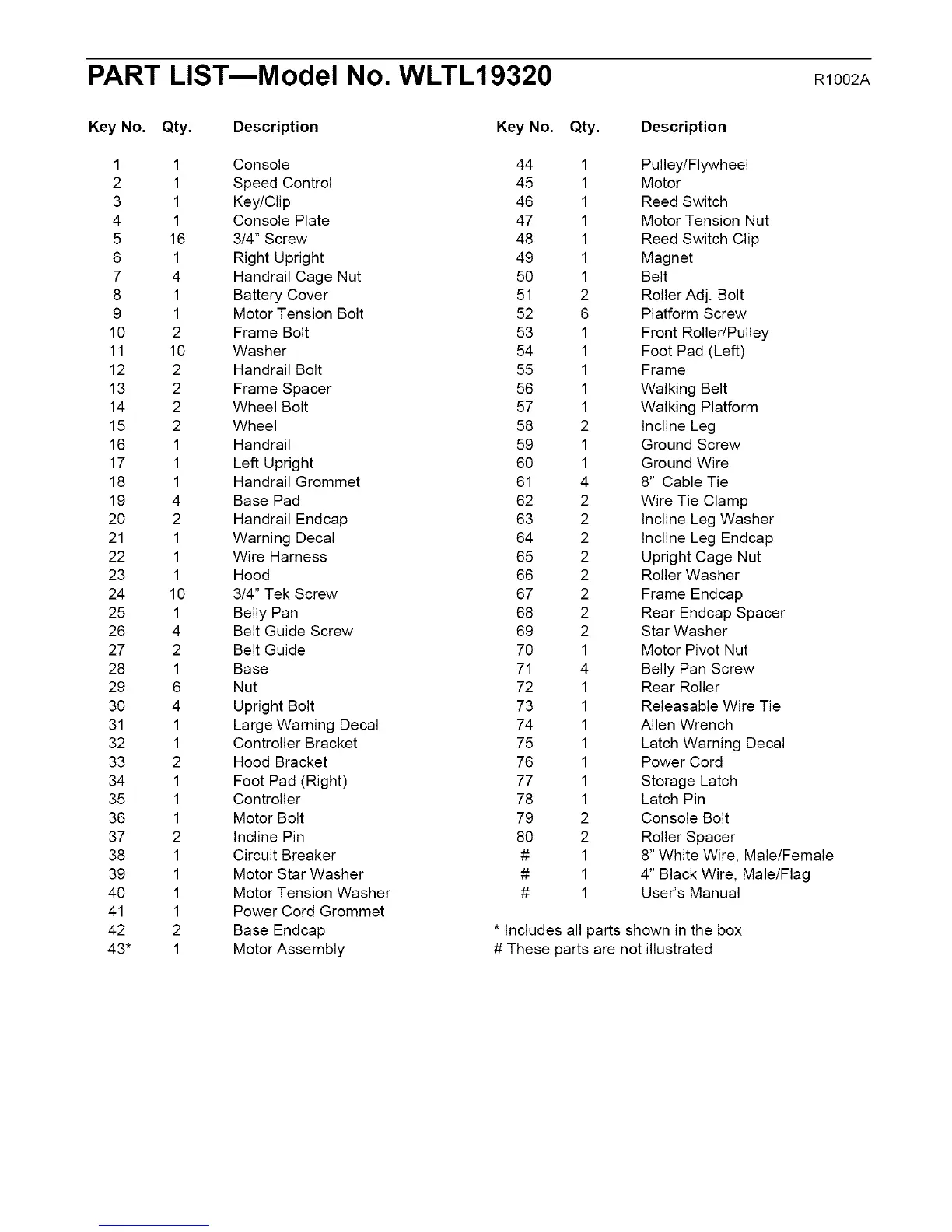

PART LISTmModel No. WLTL19320 R OO2A
Key No. Qty. Description
1 1 Console
2 1 Speed Control
3 1 Key/Clip
4 1 Console Plate
5 16 3/4" Screw
6 1 Right Upright
7 4 Handrail Cage Nut
8 1 Battery Cover
9 1 Motor Tension Bolt
10 2 Frame Bolt
11 10 Washer
12 2 Handrail Bolt
13 2 Frame Spacer
14 2 Wheel Bolt
15 2 Wheel
16 1 Handrail
17 1 Left Upright
18 1 Handrail Grommet
19 4 Base Pad
20 2 Handrail Endcap
21 1 Warning Decal
22 1 Wire Harness
23 1 Hood
24 10 3/4" Tek Screw
25 1 Belly Pan
26 4 Belt Guide Screw
27 2 Belt Guide
28 1 Base
29 6 Nut
30 4 Upright Bolt
31 1 Large Warning Decal
32 1 Controller Bracket
33 2 Hood Bracket
34 1 Foot Pad (Right)
35 1 Controller
36 1 Motor Bolt
37 2 Incline Pin
38 1 Circuit Breaker
39 1 Motor Star Washer
40 1 Motor Tension Washer
41 1 Power Cord Grommet
42 2 Base Endcap
43* 1 Motor Assembly
Key No. Qty. Description
44 1 Pulley/Flywheel
45 1 Motor
46 1 Reed Switch
47 1 Motor Tension Nut
48 1 Reed Switch Clip
49 1 Magnet
50 1 Belt
51 2 Roller Adj. Bolt
52 6 Platform Screw
53 1 Front Roller/Pulley
54 1 Foot Pad (Left)
55 1 Frame
56 1 Walking Belt
57 1 Walking Platform
58 2 Incline Leg
59 1 Ground Screw
60 1 Ground Wire
61 4 8" Cable Tie
62 2 Wire Tie Clamp
63 2 Incline Leg Washer
64 2 Incline Leg Endcap
65 2 Upright Cage Nut
66 2 Roller Washer
67 2 Frame Endcap
68 2 Rear Endcap Spacer
69 2 Star Washer
70 1 Motor Pivot Nut
71 4 Belly Pan Screw
72 1 Rear Roller
73 1 Releasable Wire Tie
74 1 Allen Wrench
75 1 Latch Warning Decal
76 1 Power Cord
77 1 Storage Latch
78 1 Latch Pin
79 2 Console Bolt
80 2 Roller Spacer
# 1 8" White Wire, Male/Female
# 1 4" Black Wire, Male/Flag
# 1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
To Next Page
