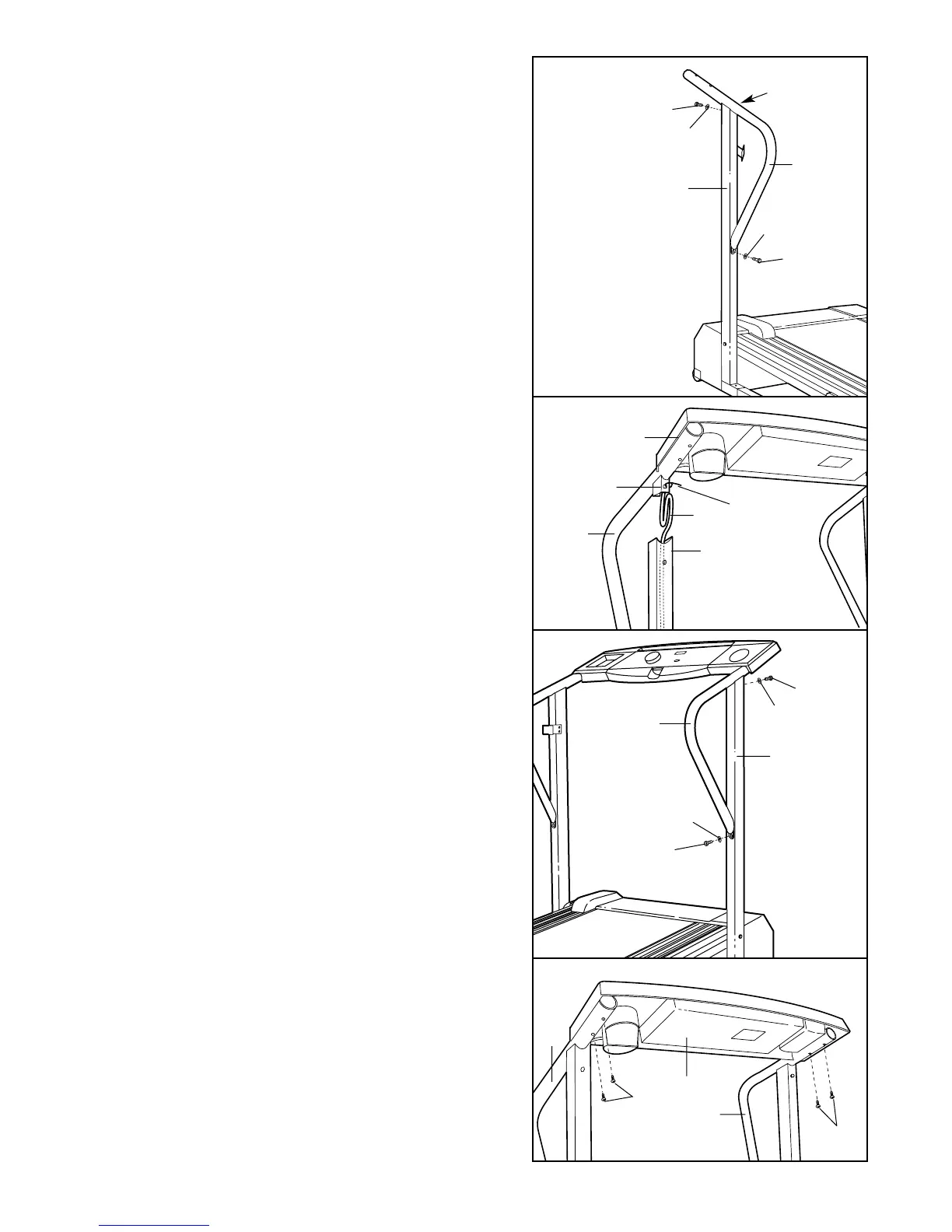

3. Cut the indicated plastic tie off the Left Handrail (2).
Position the Left Handrail (2) on the left Upright (14).
Loosely thread a Handrail Bolt (15) with a Handrail
Washer (16) into the lower end of the Left Handrail and
the left Upright. Next, loosely thread a Handrail Bolt (15)
with a Handrail Washer (16) into the upper end of the
Left Handrail and the left Upright. Do not tighten the
Handrail Bolts yet.
15
16
15
16
14
2
Plastic Tie
3
6
26
Bracket
Plastic Tie
57
14
4
6
15
15
16
16
14
57
5
55
6
55
2
57
6
4. Have a second person hold the Console Base (6) and the
Right Handrail (57) near the right Upright (14) as shown.
Fold the Wire Harness (26) as shown and insert the folded
Wire Harness into the Right Upright.
Cut the indicated plastic tie off the Handrail (57).
Make sure that the Wire Harness (26) is inside of the
bracket on the Right Handrail (57) and insert the bracket
into the right Upright (14). Make sure that the Wire
Harness is not pinched.
5. Position the Right Handrail (57) on the right Upright (14).
Loosely thread a Handrail Bolt (15) with a Handrail
Washer (16) into the lower end of the Right Handrail and
the right Upright. Next, loosely thread a Handrail Bolt (15)
with a Handrail Washer (16) into the upper end of the
Right Handrail and the right Upright. Do not tighten the
Handrail Bolts yet.
6. Attach the Console Base (6) to the Left and Right
Handrails (2, 57) with four 3/4” Screws (55 ).
Tighten all parts used in this step and steps 3 to 5.
7. Make sure that all parts are tightened before you use
the treadmill. Keep the included allen wrench in a se-
cure place. The allen wrench is used to adjust the walk-
ing belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
To Next Page
