7
9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the
floor or carpet, place a mat under the treadmill.
8. Raise the Frame to the vertical position (55). Make sure
that the Latch Pin (69) is in the Storage Latch (41) as
shown. Attach the Storage Latch to the Frame (55) with
three Latch Screws (70).
Do not tighten the Screws yet.
See the inset drawing. Position the Storage Latch (69) so
the Latch Pin (69) is aligned with the hole in the Left
Handrail (7). Slide the Latch Pin into the hole, as shown.
Tighten the three Latch Screws (70).
41
55
70
41
Hole
69
7
69
7. Attach the Console Back (4) to the Console (1) with four
Console Back Screws (58).
Make sure that no wires are
pinched.
See step 4. Tighten the four Handrail Bolts (12).
1
58
4
58
58

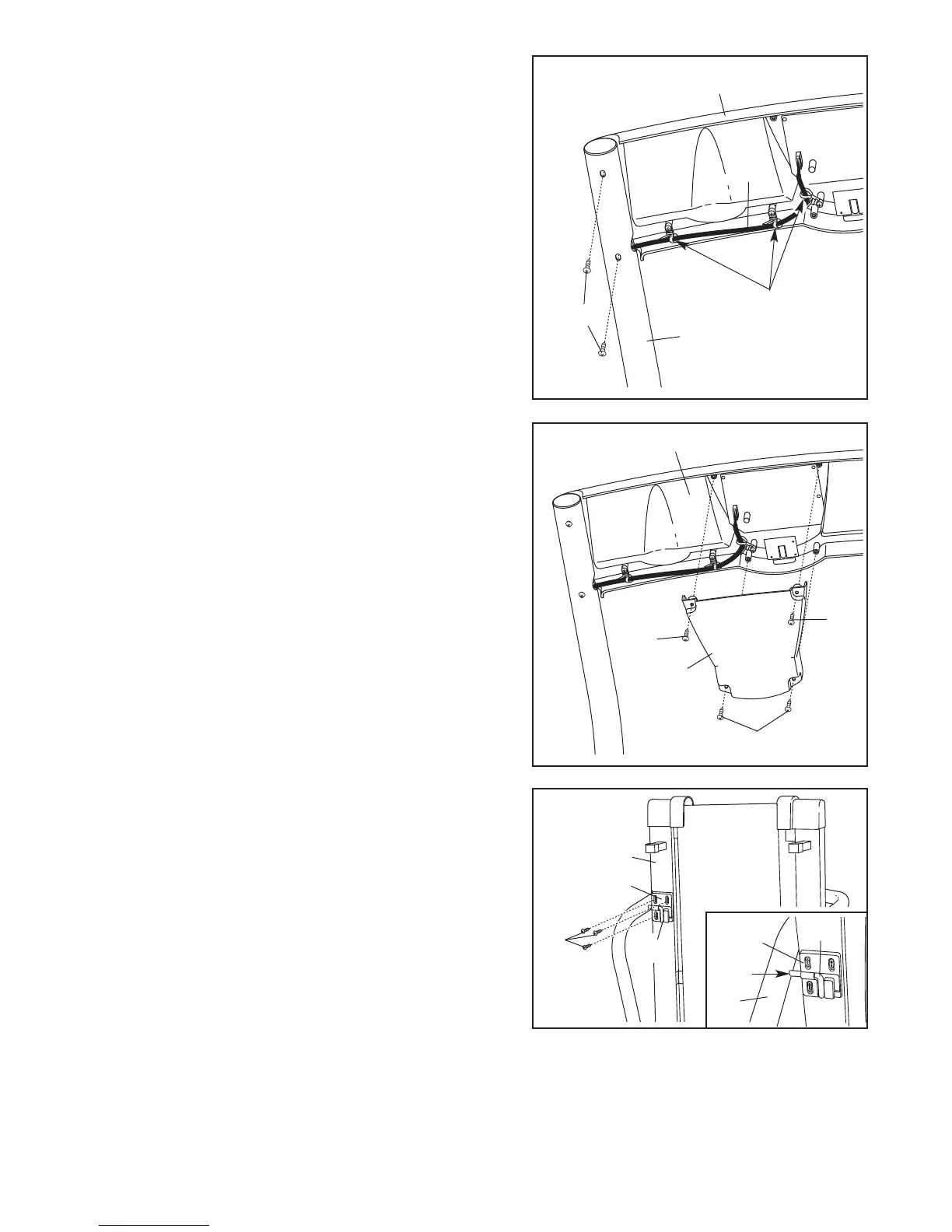

6. Set the Console (1) on the Right Handrail (6) and the Left
H
andrail (not shown). Start four Console Screws (70)
(only two are shown) into the Console. After you have
started all four Console Screws, tighten them.
Insert the excess Wire Harness (22) down into the Right
H
andrail (6). Tighten the three plastic ties around the Wire
Harness, and then cut off the ends of the plastic ties.
22
Plastic
Ties
1
6
70
6
7
8
To Next Page
