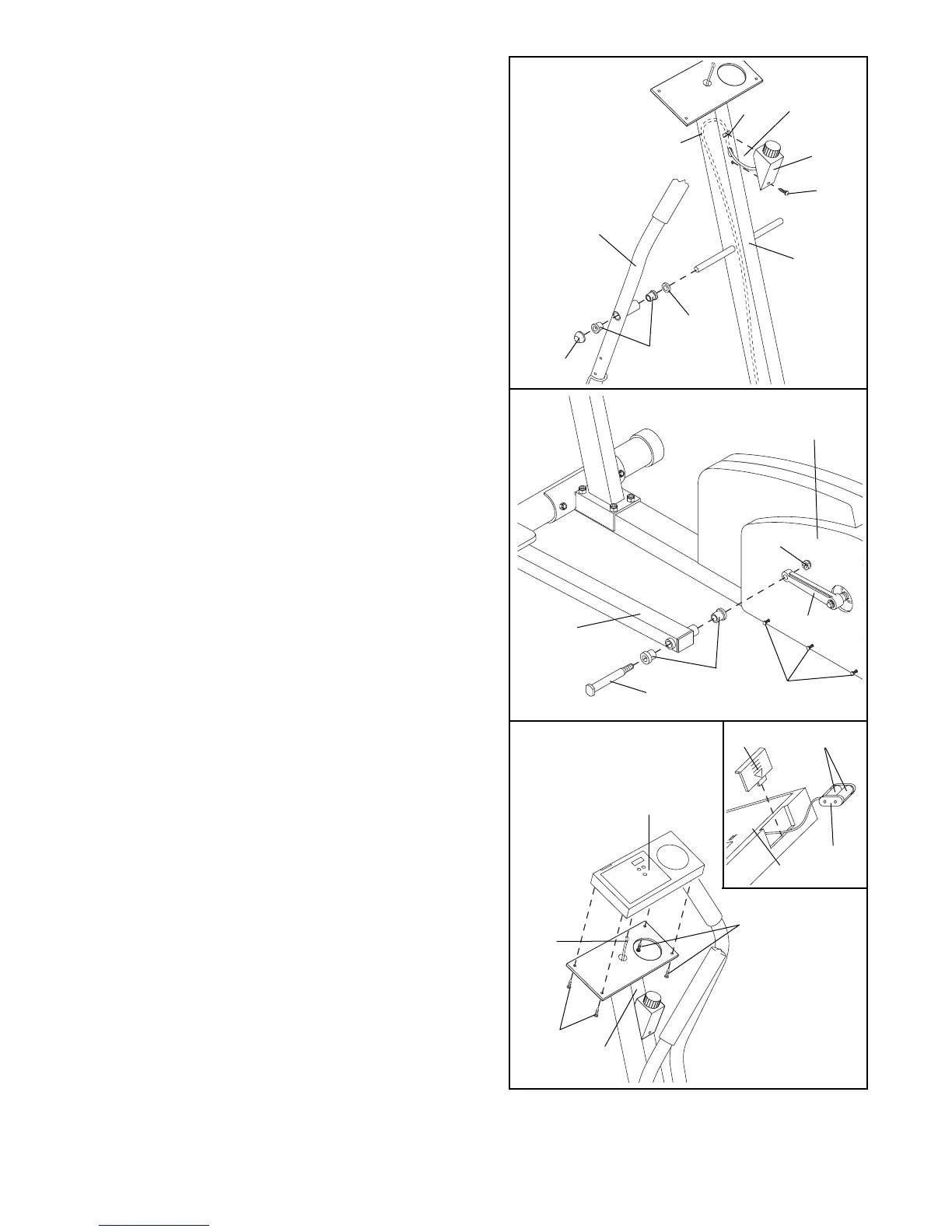

6. Plug the Extension Wire (49) into the socket in the
back of the Console (52). Feed the wire down into the
Upright (2). Attach the Console (52) to the Upright with
four M4 x 18mm Screws (69). Be careful to avoid
pinching the wire.
The Console (52) requires two “AA” batteries (not
included). Alkaline batteries are recommended.
To install batteries, first slide up the Battery Cover (60)
and carefully remove the battery clip from the Console
(52). Insert two batteries into the battery clip as shown.
Make sure that the negative ends of the batteries
(marked “–”) are touching the springs in the
battery clip. Replace the battery clip and close the
Battery Cover.
5. Tighten the three M4 x 38mm Screws (4) on each side
of the Side Shield (27).
Press two Bushings (39) into the Left Pedal Leg (3) as
shown. Insert a Pedal Bolt (8) into the Pedal Leg.
Tighten the Pedal Bolt into the left Crank Arm (10).
Tighten a 1/2” Nylon Locknut (9) onto the Pedal Bolt. If
the these parts are not tight the product may be
damaged.
Repeat this step to attach the Right Pedal Leg (not
shown).
5
49
69
2
69
52
4. Slide a Handlebar Spacer (46) onto the left axle on the
Upright (2). Make sure that the open side of the
Handlebar Spacer is facing the Upright. Make sure that
there are two Bushings (39) in the Left Handlebar.
Slide the Left Handlebar onto the left axle on the
Upright (2). Tap a 5/8” Axle Cap (43) onto the axle.
Repeat this step to attach the Right Handlebar (not
shown).
Feed the Resistance Cable (33) up into the Upright (2)
to form a loop as shown. Insert the tab on the Cable
Cover (53) into the indicated slot in the Upright. Attach
the Cable Cover with an M4 x 16mm Screw (42).
39
4
8
10
3
9
27
4
39
43
46
6
2
33
53
Slot
Loop
42
Batteries
60
Battery
Clip
52
7. Make sure that all parts of the ECLIPSE II are properly tightened. To protect the floor or carpet from
damage, place a mat under the ECLIPSE II.
To Next Page
