6
1. Hold one of the Stabilizers (68) against the saddle on
the front of the Base (1). Make sure that the Stabilizer
is turned so the square holes are facing away from the
saddle. Attach the Stabilizer with two M10 x 75mm
Carriage Bolts (66) and two M10 Nylon Locknuts (54).
Attach the other Stabilizer to the saddle on the back of
the Base (not shown).
2. While another person holds the Upright (2), gently
pull the Extension Wire (49) and the Resistance
Cable (33) up through the Upright until there is no
slack between the Upright and the Base (1).
Insert the four M10 x 68mm Bolts (67) up through the
Base (1). Slide the Upright (2) onto the Bolts. Be
careful to avoid pinching the Extension Wire (49)
and the Resistance Cable (33). Tighten an M10
Nylon Locknut (54) onto each Bolt.

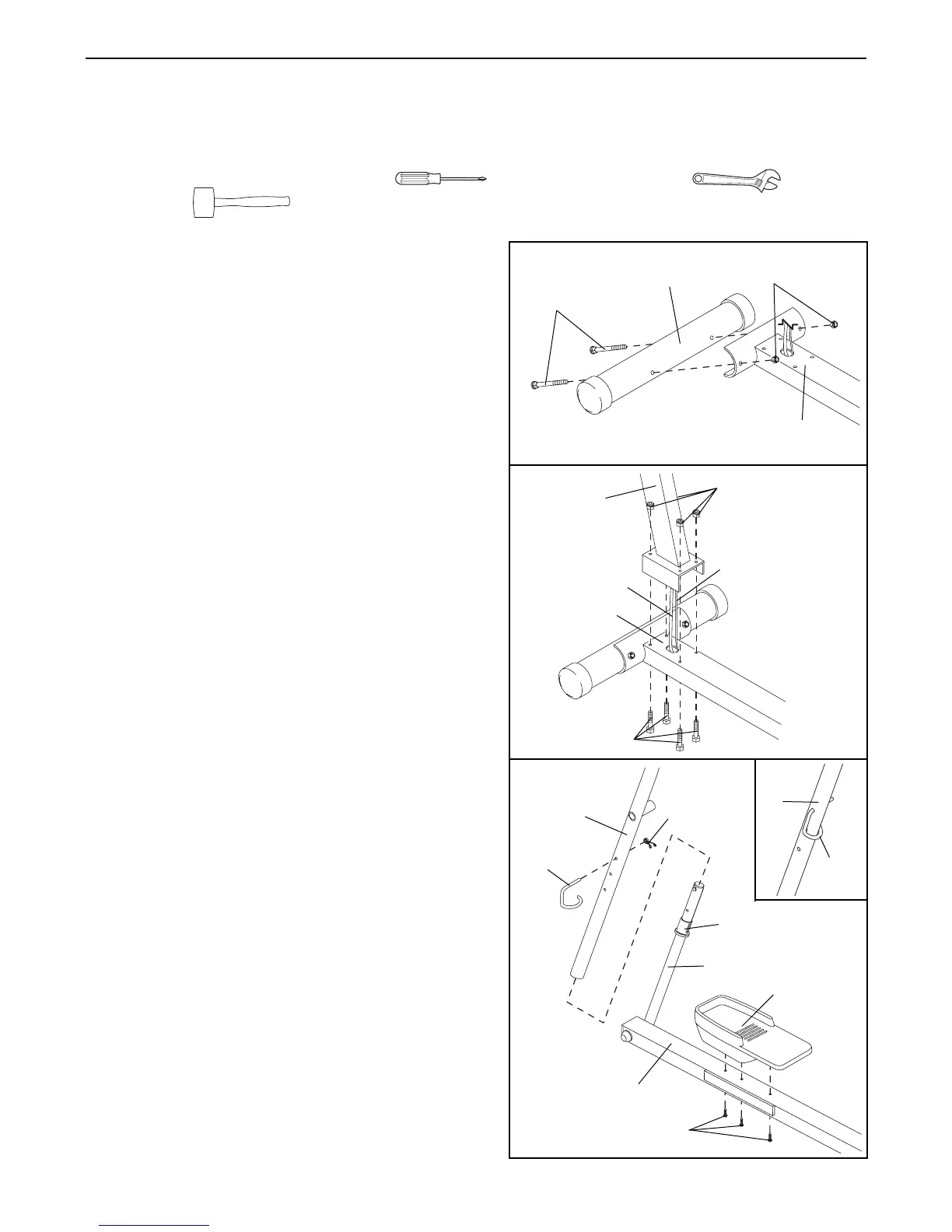

ASSEMBLY
Assembly requires two persons. Place all parts of the WESLO
®
ECLIPSE II in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , two adjustable wrenches , and a
rubber mallet .
2
1
54
49
2
66
54
1
68
1
33
67
3
3. Identify the Left Handlebar (6) and the Left Pedal Leg
(3) (there are stickers on the Handlebars and Pedal
Legs for identification).
Slide the Left Handlebar (6) onto the left Extension
Tube (5). Press the Handlebar Bushing (45) up into
the Left Handlebar. Align one of the three holes in the
Left Handlebar with the hole in the Extension Tube.
Insert the Left Lock Pin (37) into the holes, make sure
the Left Lock Pin is in the position shown in drawing
3a, and attach a Spring Clip (38) to the Left Lock Pin.
Attach a Pedal (29) to the Left Pedal Leg (3) with
three M4 x 16mm Screws (42).
Repeat this step to attach the Right Handlebar, right
Extension Tube, and Right Pedal Leg (not shown).
3a
6
6
37
29
3
42
45
5
37
38
