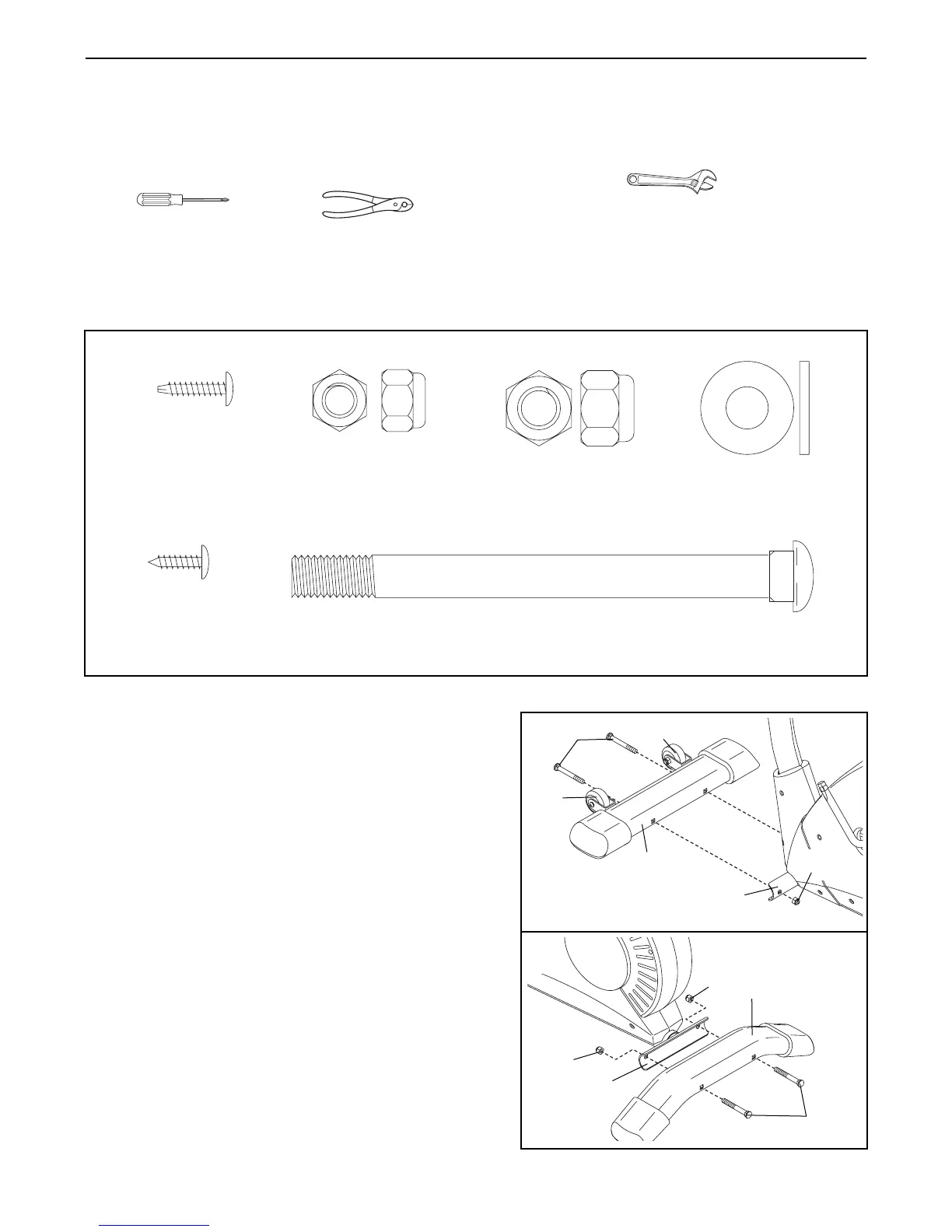

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable spanner , Phillips screw-
driver , and pliers .
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 18. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
3/8” Nylon
Locknut (33)–4
M8 Nylon
Locknut (10)–3
M8 Flat
Washer (51)–3
Ground
Screw (27)–1
M5 x 12mm
Screw (49)–4
3/8” x 114mm Carriage Bolt (30)–4
1. Orient the Front Stabiliser (2) so that the Wheels (23)
are on the side shown. Whilst another person lifts the
front of the Frame (1) slightly, attach the Front
Stabiliser with two 3/8” x 114mm Carriage Bolts (30)
and two 3/8” Nylon Locknuts (33). Make sure that the
Front Stabiliser is turned so the Wheels are not
touching the floor.
2
23
23
33
30
1
1
2. Whilst another person lifts the rear of the Frame (1)
slightly, attach the Rear Stabiliser (6) with two 3/8” x
114mm Carriage Bolts (30) and two 3/8” Nylon
Locknuts (33).
30
6
1
2
33
33
