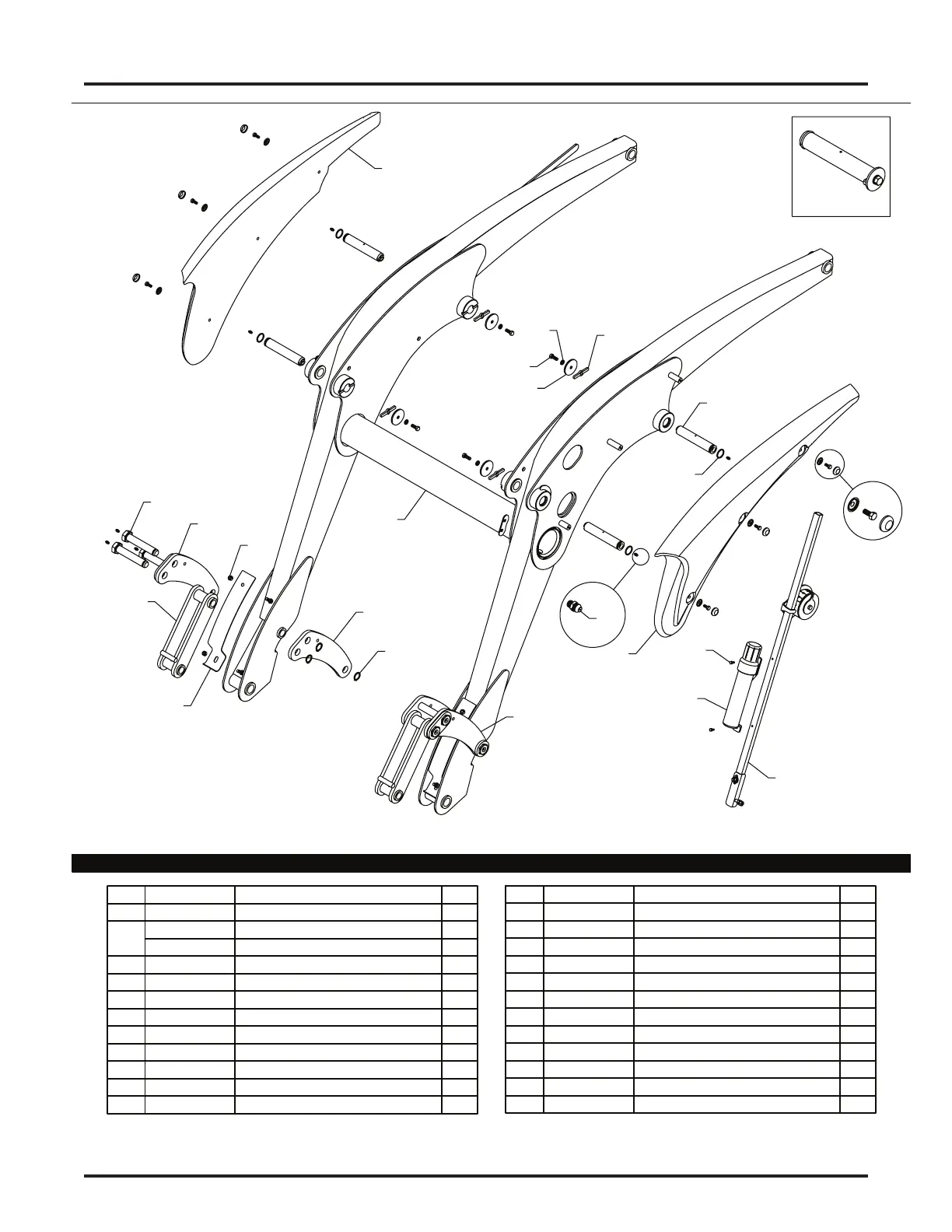

WESTENDORF MAX440 - Frame

25
Westendorf Manufacturing Co., Inc. WESTENDORFMFG RR315270
MAX Loaders
SECTION 5: SERVICE & MAINTENANCE
0$;6(5,(6/2$'(5)5$0(5(3/$&(0(173$576















127(
*When ordering replacement pin, order FMF-254 Kit. FMF-254 Kit includes one each of 9, 10, 13, 16, 18, 19, & 21.
**Specify decal color when ordering replacement jacket kit. Jacket kit contains jacket, decals, and mounting hardware.







)0).,7

5() 3$57 '(6&5,37,21 47<

RZF-101 TOP CAP 2

RZF-104AS FRAME (MAX 420) 1
RZF-204AS FRAME (MAX 440) 1

RZF-110 BUCKET LINKAGE 2

RZF-110AS-L BUCKET LINKAGE (LEFT) 1

RZF-110AS-R BUCKET LINKAGE (RIGHT) 1

RZF-115AS BUCKET LINKAGE 2

**RZF-151 KIT JACKET KIT (RIGHT) 1

**RZF-152 KIT JACKET KIT (LEFT) 1

RZF-226 WASHER 4

RZF-227 PIN LOCK 4

LAC-15-28 ROTATIONAL BUCKET INDICATOR 1
5() 3$57 '(6&5,37,21 47<

GP-2 MANUAL CANISTER 1

FMF-254 LINKAGE PIN 4

RAF-226 GREASEABLE PIN 6

SR-C08 SNAP RING 6

SR-B10 1 3/8" O.D. WIRE RING 4

EC-M03 SELF TAPPING SCREW 2

HHS0616016 3/8" X 1" BOLT 4

LWM06 3/8" LOCK WASHER 4

HTN0616 3/8" LOCK NUT 4

ZER1805 GREASE FITTING 12

FMF-254 KIT PIN KIT *

RZF-156 KIT JACKET ATTACH HARDWARE -
:(67(1'25)0)*6-*
