WESTENDORF MAX440 - Rotational Bucket Indicator

MAX Loaders
26
WESTENDORFMFG RR315270 Westendorf Manufacturing Co., Inc.

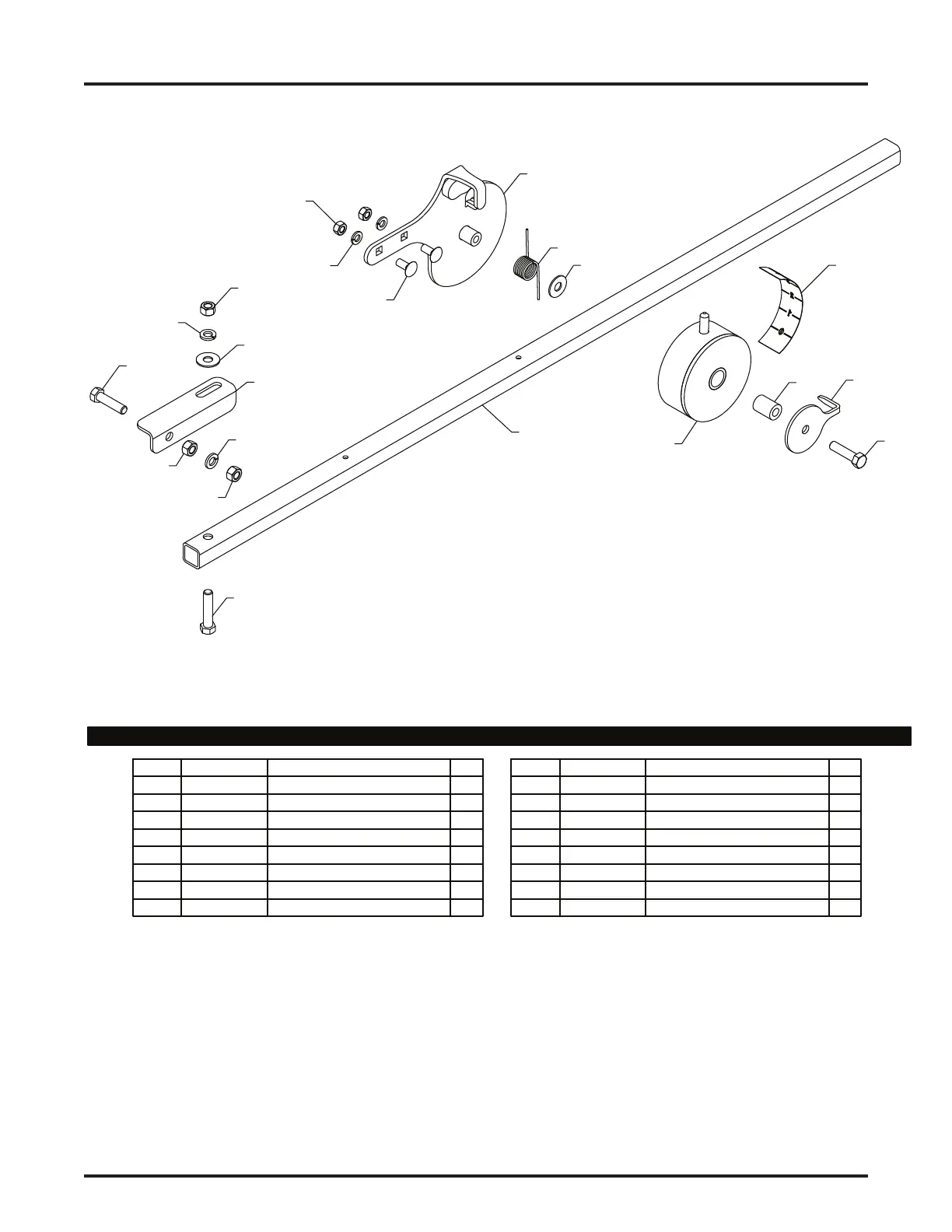

SECTION 5: SERVICE & MAINTENANCE
527$7,21$/%8&.(7,1',&$725/$&5(3/$&(0(173$576

















127(
Order LAC-15-28 when ordering a complete Rotational Bucket Indicator Kit.




5() 3$57 '(6&5,37,21 47<

GRD-60 GAUGE TUBE 1

GRD-61 ADJUSTMENT PLATE 1

GRD-175 POINTER 1

GRD-262AS BUCKET INDICATOR 1

GRD-269AS MOUNTING PLATE 1

GRD-272 TORSION SPRING 1

DE-GRD DECAL 1

LM-4 NYLON BUSHING 1
5() 3$57 '(6&5,37,21 47<

HHS0616024 3/8" X 1 1/2" BOLT 2

HHS0616028 3/8" X 1 3/4" BOLT 1

CBF0518012 5/16" X 3/4" CARRIAGE BOLT 2

LWM05 5/16" LOCK WASHER 2

LWM06 3/8" LOCK WASHER 2

FWW06 3/8" FLAT WASHER 2

HFN0518 5/16" NUT 2

HFN0616 3/8" NUT 3
:(67(1'25)0)*6-*
