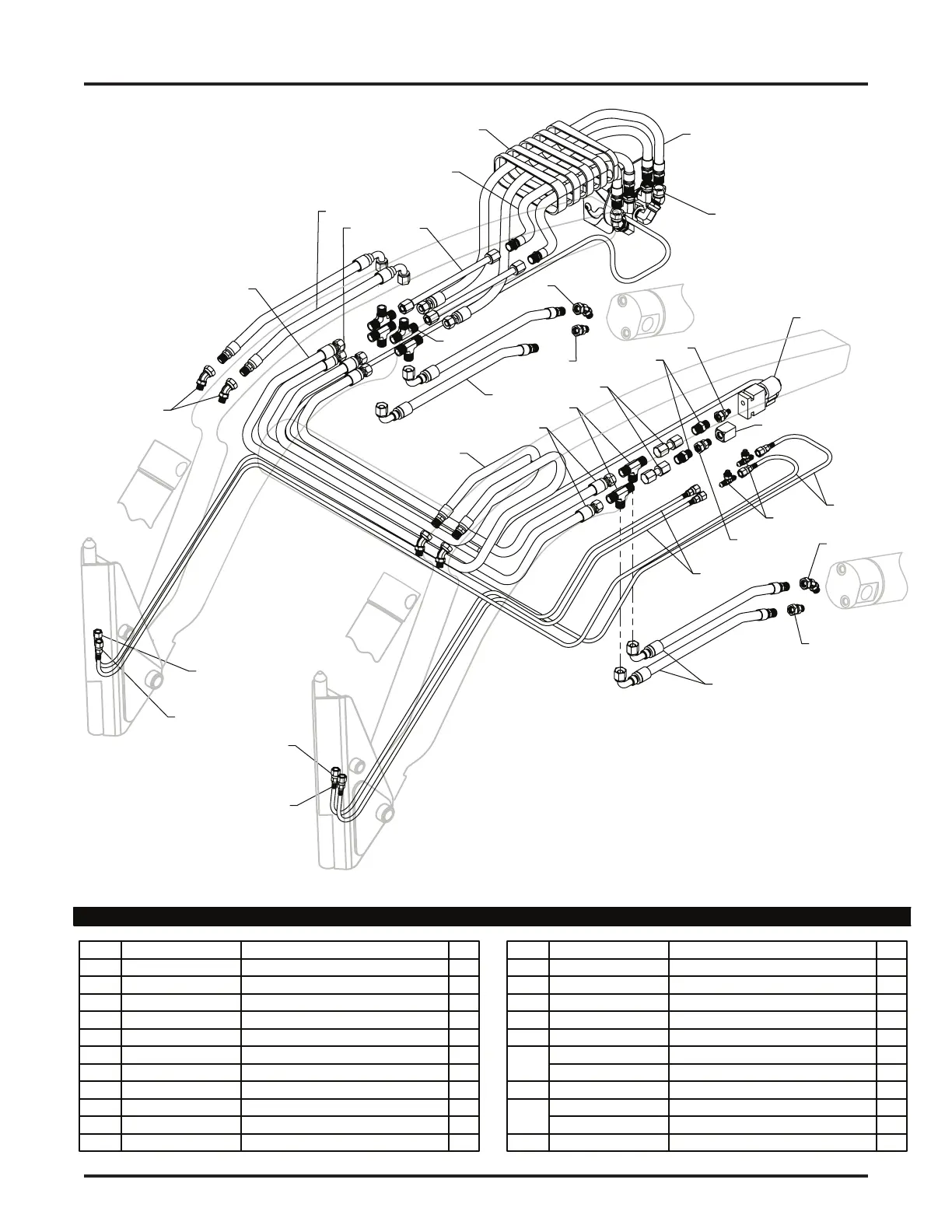

WESTENDORF MAX440 - Hydraulics

27
Westendorf Manufacturing Co., Inc. WESTENDORFMFG RR315270
MAX Loaders
0$;6(5,(6+<'5$8/,&6
































5() 3$57 '(6&5,37,21 47<

LM-308COM FEMALE COUPLER 1

VB-36 VALVE BLOCK 1

VB-39 VALVE 1

OLT-439 OIL LINE 2

OLT-713 OIL LINE 2

PF-8-JU-S TEE 6

PF-FMC0608 1/2" TUBE TO 3/8" NPT 2
 PF-O45S06
9/16" O-ring TO 3/8" 45° SWIVEL ELBOW
6

PF-OS0406 7/16" O-ring TO 3/8" FNPT SWIVEL 1
 PF-OS06 9/16" O-ring TO 3/8" FNPT SWIVEL 3

PF-STBT04 7/16" JIC - O-RING BRANCH TEE 2
5() 3$57 '(6&5,37,21 47<

H02080-RRDYNA MICRO HOSE 2

H02110-RRDYNA MICRO HOSE 2

H06016-6Q HYDRAULIC HOSE 2

H06028-6Q HYDRAULIC HOSE 4

H06054-8F HYDRAULIC HOSE 2

H06060-PP HYDRAULIC HOSE (MAX 420) 2
H06068-PP HYDRAULIC HOSE (MAX 440) 2

H06064-8P HYDRAULIC HOSE 2

H06086-6P HYDRAULIC HOSE (MAX 420) 2
H06094-6P HYDRAULIC HOSE (MAX 440) 2

FHW32024-B 24" FLEX HOSE WRAP (BLACK) 1
:(67(1'25)0)* 6-*
