WESTENDORF MAX440 - Cylinders; Coupler Installation; Cosmetics

MAX Loaders
28
WESTENDORFMFG RR315270 Westendorf Manufacturing Co., Inc.
&260(7,&6
5(027(&21752/&283/(5.,7

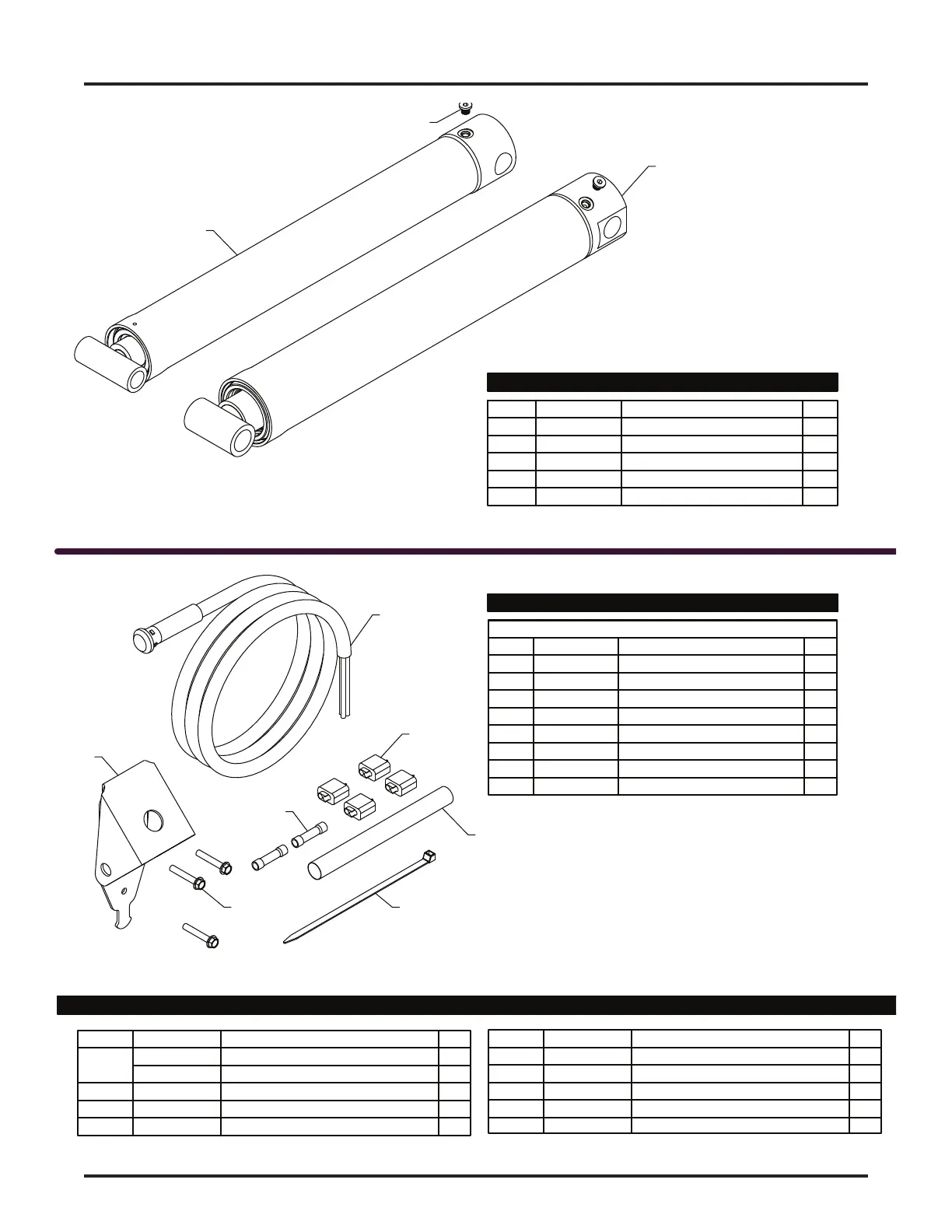

60$573$&&</,1'(53$576










127(
*Seal kit contains parts to repair one cylinder
(&&.,7
5() 3$57 '(6&5,37,21 47<

EC-C22 BLUE BUTT CONNECTOR 2

EC-C27 SCOTCHLOCK 4

EC-C31 SWITCH WIRING HARNESS 1

EC-C33 HEAT SHRINK TUBING 1

EC-M11 MOUNTING BRACKET 1

STW0814016 #8 X 1" SELF TAPPING SCREW 3

DE-ACK DECAL (NOT SHOWN) 1

BAND-6R 6" PLASTIC BAND RED 1
5() 3$57 '(6&5,37,21 47<

B-67 CYLINDER 1

L-63 LIFT CYLINDER 1

PF-POHH04 7/16" HOLLOW HEX PLUG 2

#54CK SEAL KIT (B-67) 1

#52CK SEAL KIT (L-63) 1
5() 3$57 '(6&5,37,21 47<

DEC-420 DECAL KIT (MAX 420) 1
DEC-440 DECAL KIT (MAX 440) 1

V-Q3800-A GUN METAL BLACK SPRAY PAINT 1

V-Q3800-P PINT GUN METAL BLACK PAINT 1

V-Q3800-Q QUART GUN METAL BLACK PAINT 1
5() 3$57 '(6&5,37,21 47<

V-Q3800-G GALLON GUN METAL BLACK PAINT 1

V-72187-A GRANITE SPRAY PAINT 1

V-72187-P PINT GRANITE PAINT 1

V-72187-Q QUART GRANITE PAINT 1

V-72187-G GALLON GRANITE PAINT 1
