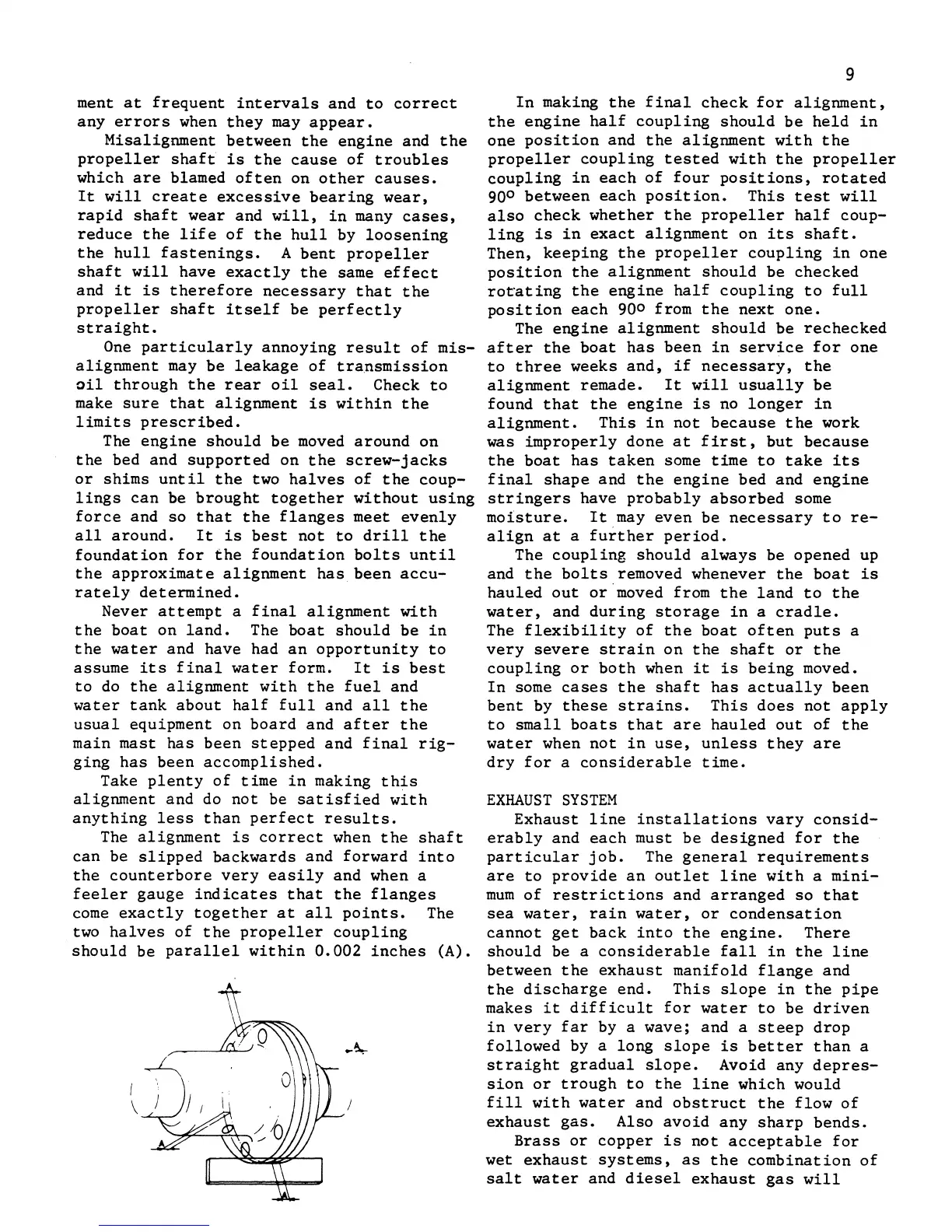

ment
at
frequent
intervals
and
to
correct
any
errors
when
they
may
appear.
Misalignment
between
the
engine
and
the
propeller
shaft
is
the
cause
of
troubles
which
are
blamed
often
on
other
causes.
It
will
create
excessive
bearing
wear,
rapid
shaft
wear and
will,
in
many
cases,
reduce
the
life
of
the
hull
by
loosening
the
hull
fastenings.
A
bent
propeller
shaft
will
have
exactly
the
same
effect
and
it
is
therefore
necessary
that
the
propeller
shaft
itself
be
perfectly
straight.
One
particularly
annoying
result
of
mis-
alignment
may
be
leakage
of
tra.nsmission
oil
through
the
rear
oil
seal.
Check
to
make
sure
that
alignment
is
within
the
limits
prescribed.
The
engine
should
be
moved
around
on
the
bed and
supported
on
the
screw-jacks
or
shims
until
the
two
halves
of
the
coup-
lings
can
be
brought
together
without
using
force
and
so
that
the
flanges
meet
evenly
all
around.
It
is
best
not
to
drill
the
foundation
for
the
foundation
bolts
until
the
approximate
alignment
has
been
accu-
rately
determined.
Never
attempt
a
final
alignment
with
the
boat
on
land.
The
boat
should
be
in
the
water
and have had
an
opportunity
to
assume
its
final
water
form.
It
is
best
to
do
the
alignment
with
the
fuel
and
water
tank
about
half
full
and
all
the
usual
equipment
on
board
and
after
the
main
mast
has
been
stepped
and
final
rig-
ging
has
been
accomplished.
Take
plenty
of
time
in
making
this
alignment
and do
not
be
satisfied
with
anything
less
than
perfect
results.
The
alignment
is
correct
when
the
shaft
can
be
slipped
backwards
and
forward
into
the
counterbore
very
easily
and when a
feeler
gauge
indicates
that
the
flanges
come
exactly
together
at
all
points.
The
two
halves
of
the
propeller
coupling
should
be
parallel
within
0.002
inches
(A).
I
\
)
9
In
making
the
final
check
for
alignment,
the
engine
half
coupling
should
be
held
in
one
position
and
the
alignment
with
the
propeller
coupling
tested
with
the
propeller
coupling
in
each
of
four
positions,
rotated
90
0
between
each
position.
This
test
will
also
check
whether
the
propeller
half
coup-
ling
is
in
exact
alignment
on
its
shaft.
Then,
keeping
the
propeller
coupling
in
one
position
the
alignment
should
be
checked
rot"ating
the
engine
half
coupling
to
full
position
each
90
0
from
the
next
one.
The
engine
alignment
should
be
rechecked
after
the
boat
has
been
in
service
for
one
to
three
weeks
and,
if
necessary,
the
alignment
remade.
It
will
usually
be
found
that
the
engine
is
no
longer
in
alignment.
This
in
not
because
the
work
was
improperly
done
at
first,
but
because
the
boat
has
taken
some
time
to
take
its
final
shape
and
the
engine
bed
and
engine
stringers
have
probably
absorbed
some
moisture.
It
may
even
be
necessary
to
re-
align
at
a
further
period.
The
coupling
should
always
be
opened
up
and
the
bolts
removed whenever
the
boat
is
hauled
out
orĀ·moved
from
the
land
to
the
water,
and
during
storage
in
a
cradle.
The
flexibility
of
the
boat
often
puts
a
very
severe
strain
on
the
shaft
or
the
coupling
or
both
when
it
is
being
moved.
In
some
cases
the
shaft
has
actually
been
bent
by
these
strains.
This
does
not
apply
to
small
boats
that
are
hauled
out
of
the
water
when
not
in
use,
unless
they
are
dry
for
a
considerable
time.
EXHAUST
SYSTEM
Exhaust
line
installations
vary
consid-
erably
and
each
must
be
designed
for
the
particular
job.
The
general
requirements
are
to
provide
an
outlet
line
with
a
mini-
mum
of
restrictions
and
arranged
so
that
sea
water,
rain
water,
or
condensation
cannot
get
back
into
the
engine.
There
should
be a
considerable
fall
in
the
line
between
the
exhaust
manifold
flange
and
the
discharge
end.
This
slope
in
the
pipe
makes
it
difficult
for
water
to
be
driven
in
very
far
by a wave; and a
steep
drop
followed
by a
long
slope
is
better
than
a
straight
gradual
slope.
Avoid any
depres-
sion
or
trough
to
the
line
which would
fill
with
water
and
obstruct
the
flow
of
exhaust
gas.
Also
avoid
any
sharp
bends.
Brass
or
copper
is
not
acceptable
for
wet
exhaust
systems,
as
the
combination
of
salt
water
and
diesel
exhaust
gas
will
