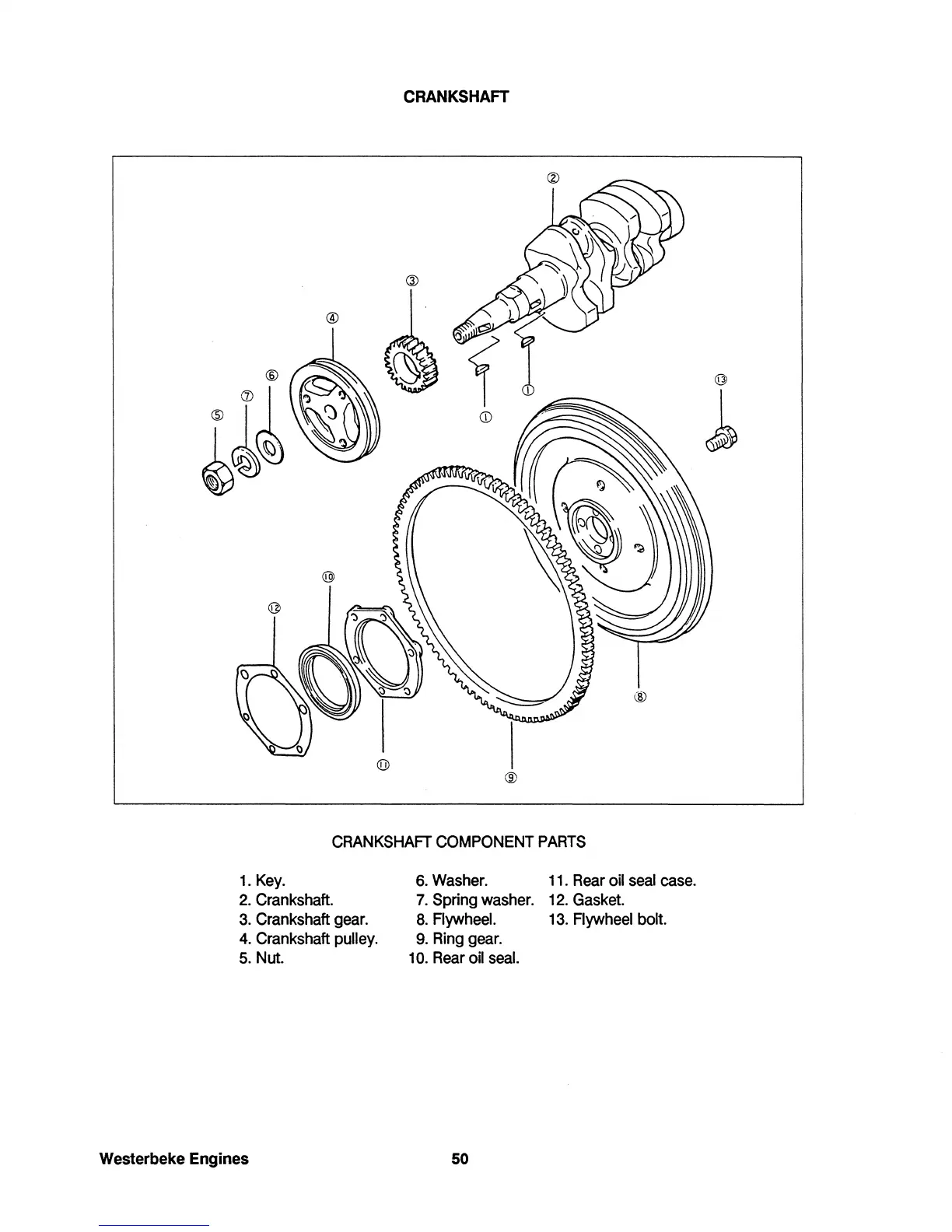

CRANKSHAFT
®
CRANKSHAFT
COMPONENT
PARTS
1.
Key.
6.
Washer.
11.
Rear
oil
seal
case.
2.
Crankshaft.
7.
Spring
washer.
12.
Gasket.
3.
Crankshaft
gear.
8.
Flywheel.
13.
Flywheel
bolt.
4.
Crankshaft
pulley.
9.
Ring
gear.
5.
Nut.
10.
Rear
oil
seal.
Westerbeke Engines
50
