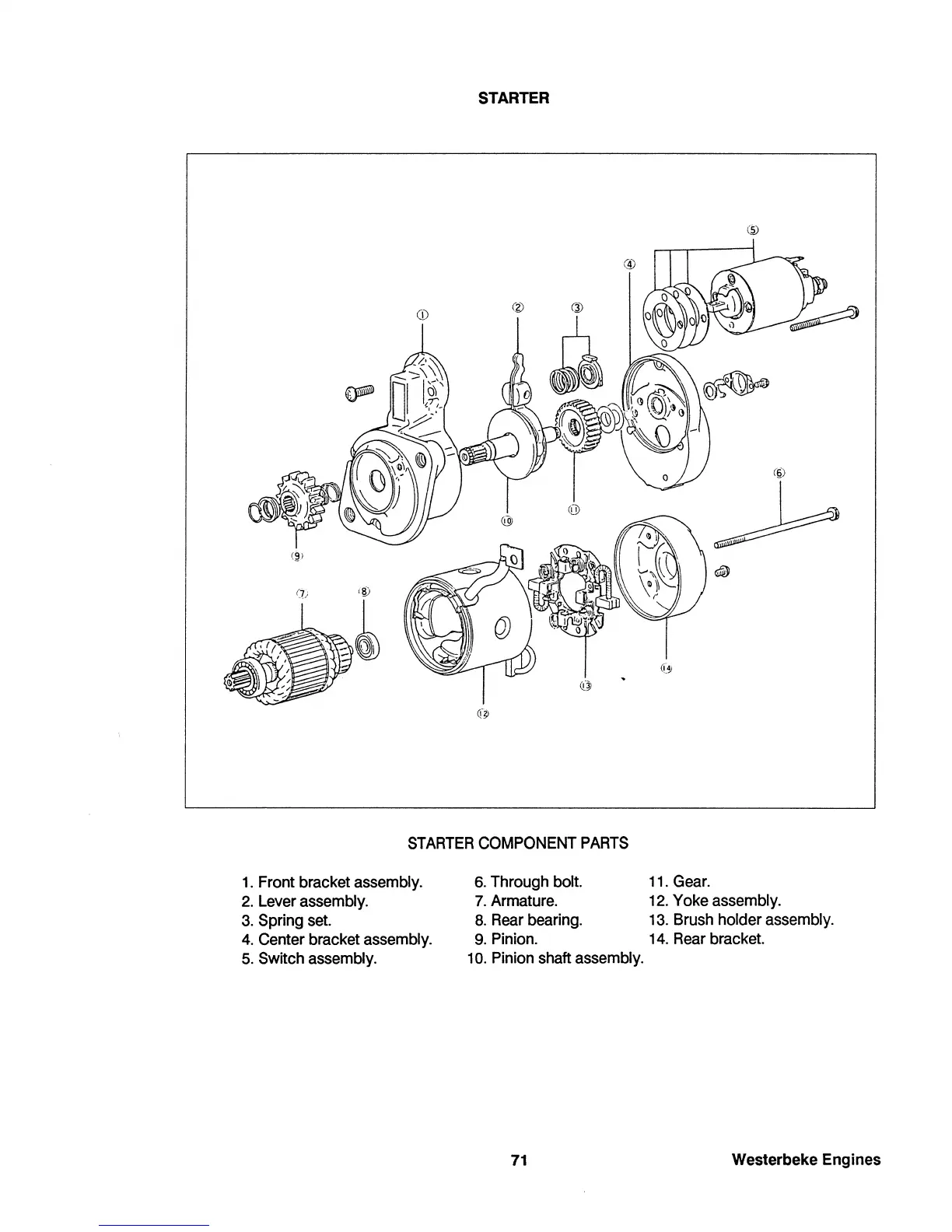

STARTER
(,!l)
I}) lID
.~~
STARTER COMPONENT PARTS
1. Front bracket assembly.
6. Through bolt. 11. Gear.
2. Lever assembly.
7. Armature. 12. Yoke assembly.
3. Spring set.
8. Rear bearing. 13. Brush holder assembly.
4. Center bracket assembly.
9. Pinion. 14. Rear bracket.
5. Switch assembly.
10. Pinion shaft assembly.
71
