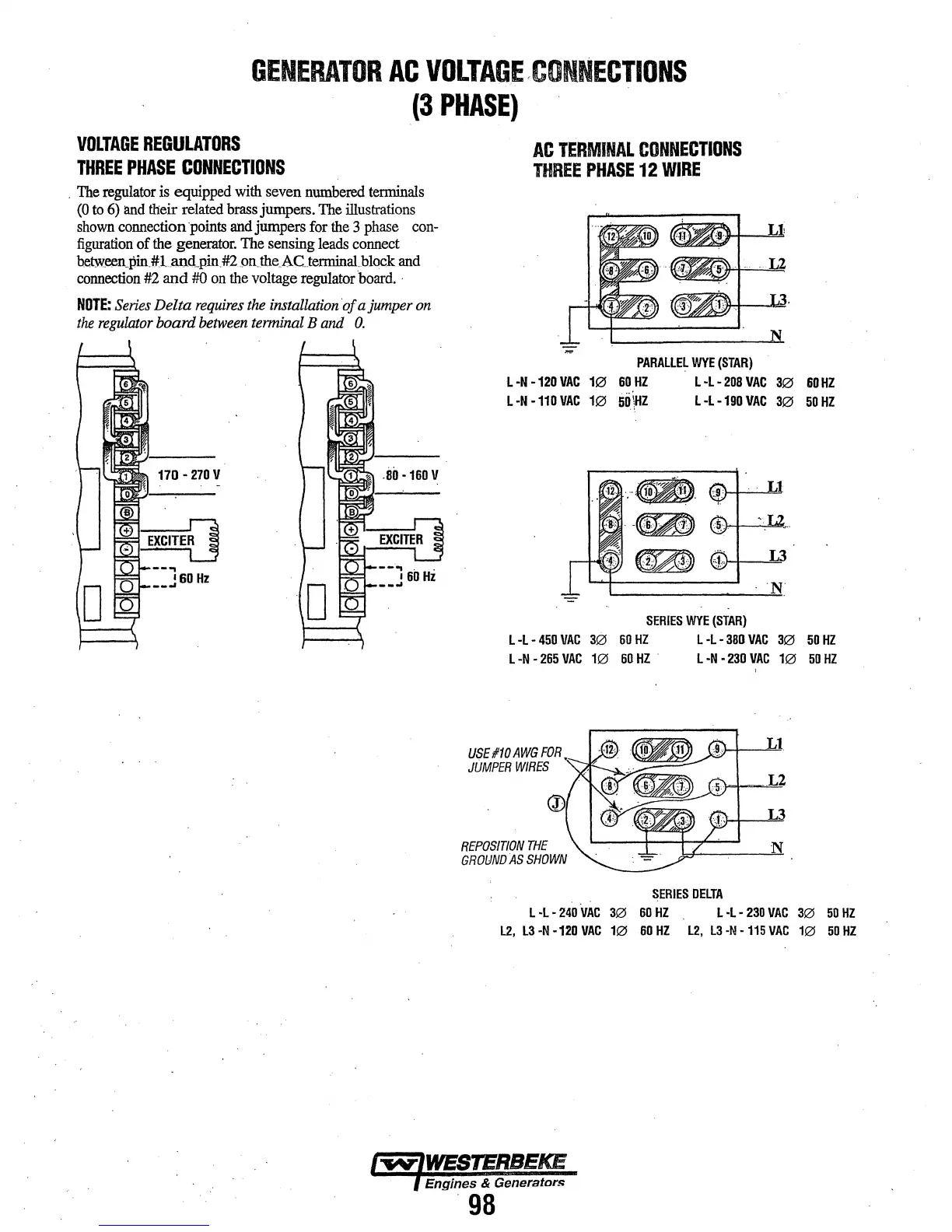

GENERATOR AC VOLTAG,E ,CONNECTIONS
(3 PHASE)
VOLTAGE REGULATORS
THREE PHASE CONNECTIONS
. The regulator is equipped with seven numbered terminals
(0 to 6) and their related brass jumpers. The illustrations
shown connection ·points and jumpers for the 3 phase con-
figuration of the generator. The sensing leads connect
betw.een_pin_#Land_pin_#2 on._the_AG.tenninal_block and
connection #2 and #0 on the voltage regulator.board. ·
NOTE: Series Delta requires the installation 'of a jumper on
the regulator board between terminal B and 0.
170 -270V
AC TERMINAL CONNECTIONS
THREE PHASE 12 WIRE
PARALLEL WYE (STAR)
l-N -120 VAC 10 60 HZ L ·l· 208 VAC 30 60HZ
L -N ·110 VAC 10 5ii \Hz L -l-190 VAC 30 50 HZ
SERIES WYE (STAR)
l·l-450VAC 30 60HZ L·l·380VAC 30 50HZ
L -N • 265 VAC 10 60 HZ . L -N - 230 VAC 10 50 HZ
USE #10 AWG FOR
JUMPER WIRES
REPOSITION THE
GROUND AS SHOWN
1
~ERIES DELTA
1
L2
L3
N
L ·L • 240 VAC 30 60 HZ L ·l- 230 VAC 30 50 HZ
l2, l3 -N -120 VAC 10 60HZ L2, L3 ·N ·115 VAC 10 50 HZ
