… TD-36 – Secure Call-back

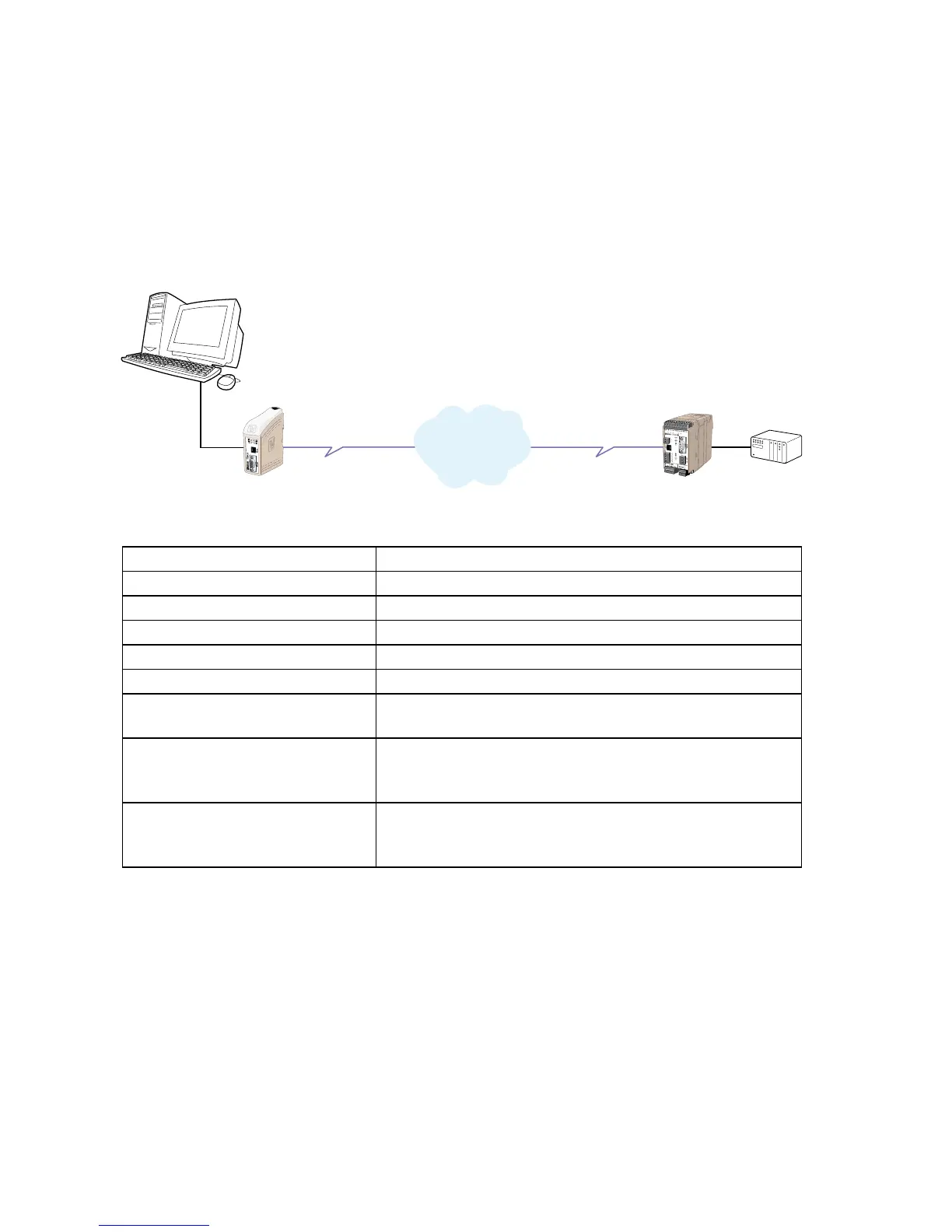

The TD-36 is connected to a PLC which one want to restrict access to. The TD-36 can
support access control through the Secure Callback function. In this example password
and callback to a predefined number is chosen. The modem in the calling end is here
chosen to be a PSTN modem, but can be any of the PSTN, ISDN or GSM modem from
the Westermo product range.
The DTE serial speed between the PLC – TD-36 and TDW-33 – PC is assumed to be
9600 8N1 but can be chosen to fit the actual system requirement.
Configure the TD-36
PSTN
Network
AT&F Set the unit to factory default
AT+IPR=9600 DTE baudrate 9600
AT+ICF=3,4 Character framing 8 data, 1 stop, parity none
ATS0=1 Auto answer after first ring
ATQ1E0&C1&K0&A1 Suitable for PLC communication
AT&W Store default settings
AT*WCB=4 Callback enabled, Password and callback number stored
in one or more positions of wcbtab
AT*WCBTAB=1,”+4670428000”,
”n3Y9kA6otYZu8”
Define callback number 1
When password 1 is entered number +4670428000 will
be called
AT*WCBTIME=10 Define delay time between hangup an callback
The TD-36 will wait 10s after hangup to callback
to allow the analogue modem to hangup
