Westermo TD-36 - DIP Switch Configuration; S1 DIP Switch Settings

23
6618-2202
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
NOTE DIP-switch alterations are only effective after a power on.

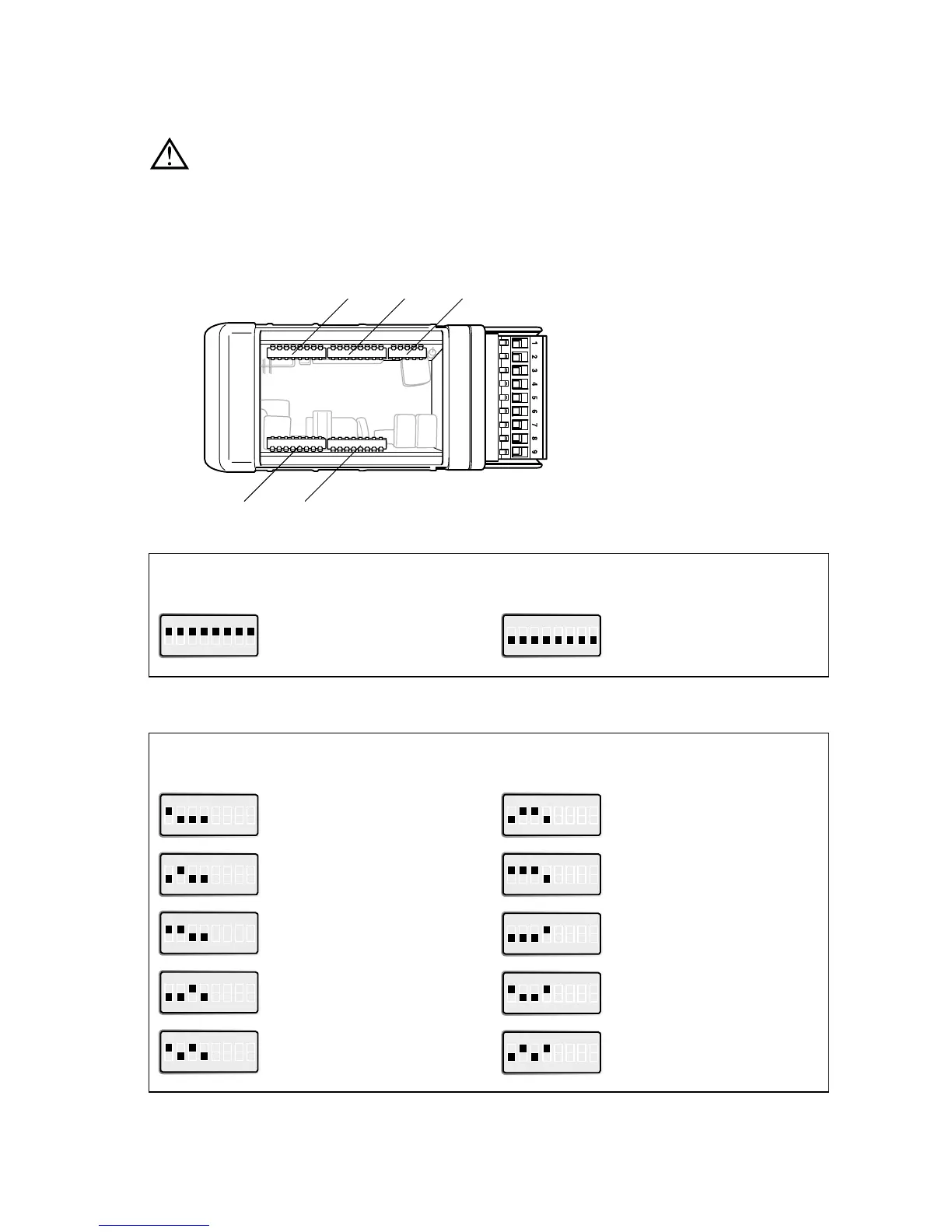

S4 S3
S5S2S1
S1 DIP-switch
Selection of DTE speed
S1 DIP-switch
Stored values / Auto detect
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
9600 bit/s
ON
1 2 3 4 5 6 7 8
Auto detect*
ON
1 2 3 4 5 6 7 8
1200 bit/s
ON
1 2 3 4 5 6 7 8
300 bit/s
ON
1 2 3 4 5 6 7 8
600 bit/s
ON
1 2 3 4 5 6 7 8
2400 bit/s
ON
1 2 3 4 5 6 7 8
19.2 kbit/s
ON
1 2 3 4 5 6 7 8
38.4 kbit/s
ON
1 2 3 4 5 6 7 8
57.6 kbit/s
ON
1 2 3 4 5 6 7 8
115.2 kbit/s
ON
1 2 3 4 5 6 7 8
4800 bit/s
* 300 and 600 baud not supported
