Westermo TD-36 - S2 DIP Switch Settings

24
6618-2202

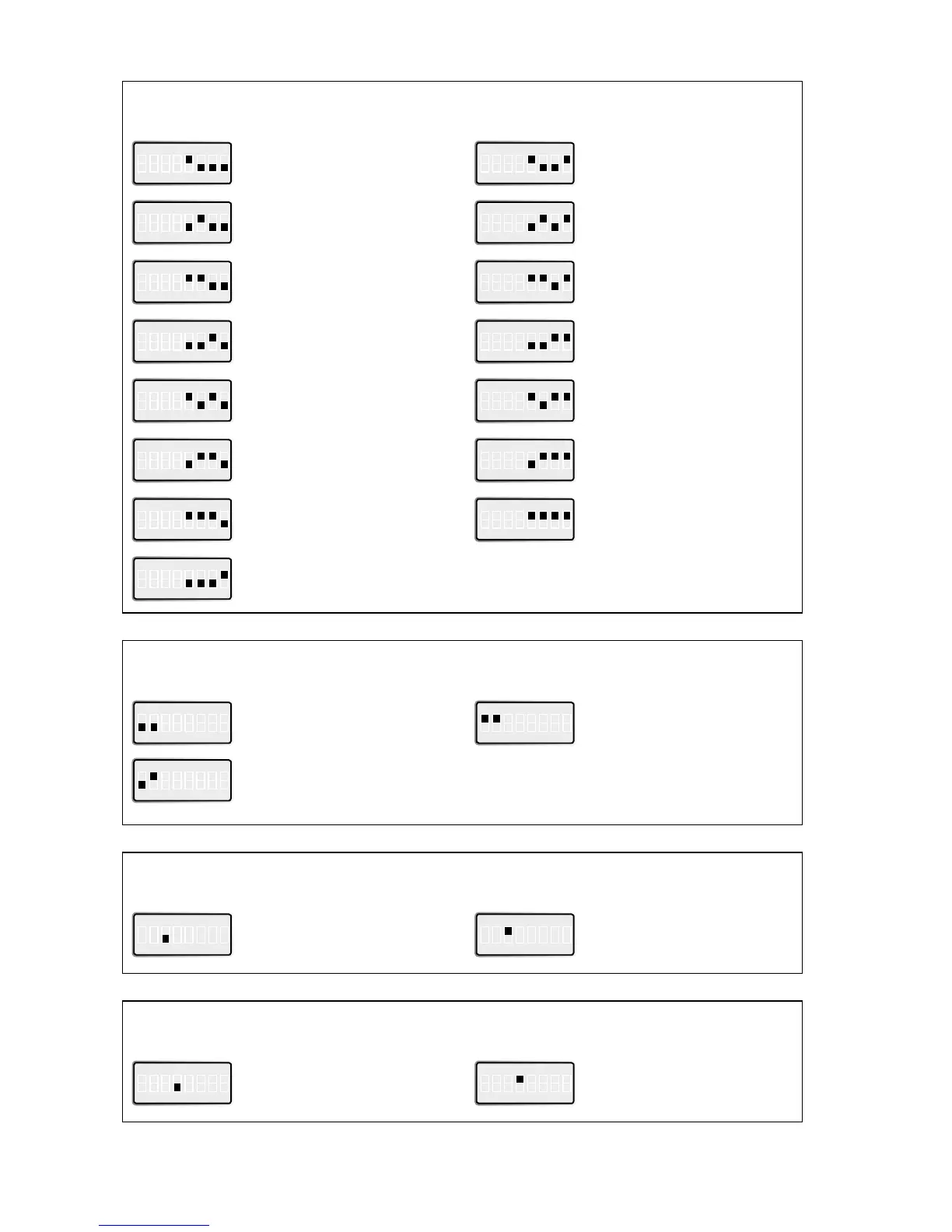

S1 DIP-switch
Selection of DTE format
ON
1 2 3 4 5 6 7 8
7E 1S
ON
1 2 3 4 5 6 7 8
7E 2S
ON
1 2 3 4 5 6 7 8
7O 1S
ON
1 2 3 4 5 6 7 8
7O 2S
ON
1 2 3 4 5 6 7 8
8N 1S
ON
1 2 3 4 5 6 7 8
8N 2S
ON
1 2 3 4 5 6 7 8
8E 1S
ON
1 2 3 4 5 6 7 8
8E 2S
ON
1 2 3 4 5 6 7 8
8O 1S
ON
1 2 3 4 5 6 7 8
8O 2S
ON
1 2 3 4 5 6 7 8
Direct mode 8E1 or 8O1. 8O1
in command mode
ON
1 2 3 4 5 6 7 8
Direct mode 8E2 or 8O2. 8N2
in command mode
ON
1 2 3 4 5 6 7 8
Direct mode 7E1 or 7O1. 8N1
in command mode
ON
1 2 3 4 5 6 7 8
Direct mode 7E2 or 7O2.8N2
in command mode
ON
1 2 3 4 5 6 7 8
7N 2S
S2 DIP-switch
Leased Line Mode selection
ON
1 2 3 4 5 6 7 8
Leased Line disable, PSTN enable
ON
1 2 3 4 5 6 7 8
Leased Line answering
ON
1 2 3 4 5 6 7 8
Leased Line calling
S2 DIP-switch
DTE interface selection
ON
1 2 3 4 5 6 7 8
RS-422/485 disabled,
RS-232 enabled
ON
1 2 3 4 5 6 7 8
RS-422/485 enabled,
RS-232 disabled
S2 DIP-switch
RS-422/485
ON
1 2 3 4 5 6 7 8
RS-422/485, 2-wire
ON
1 2 3 4 5 6 7 8
RS-422/485, 4-wire
