Westermo TD-36 - Page 25

25
6618-2202

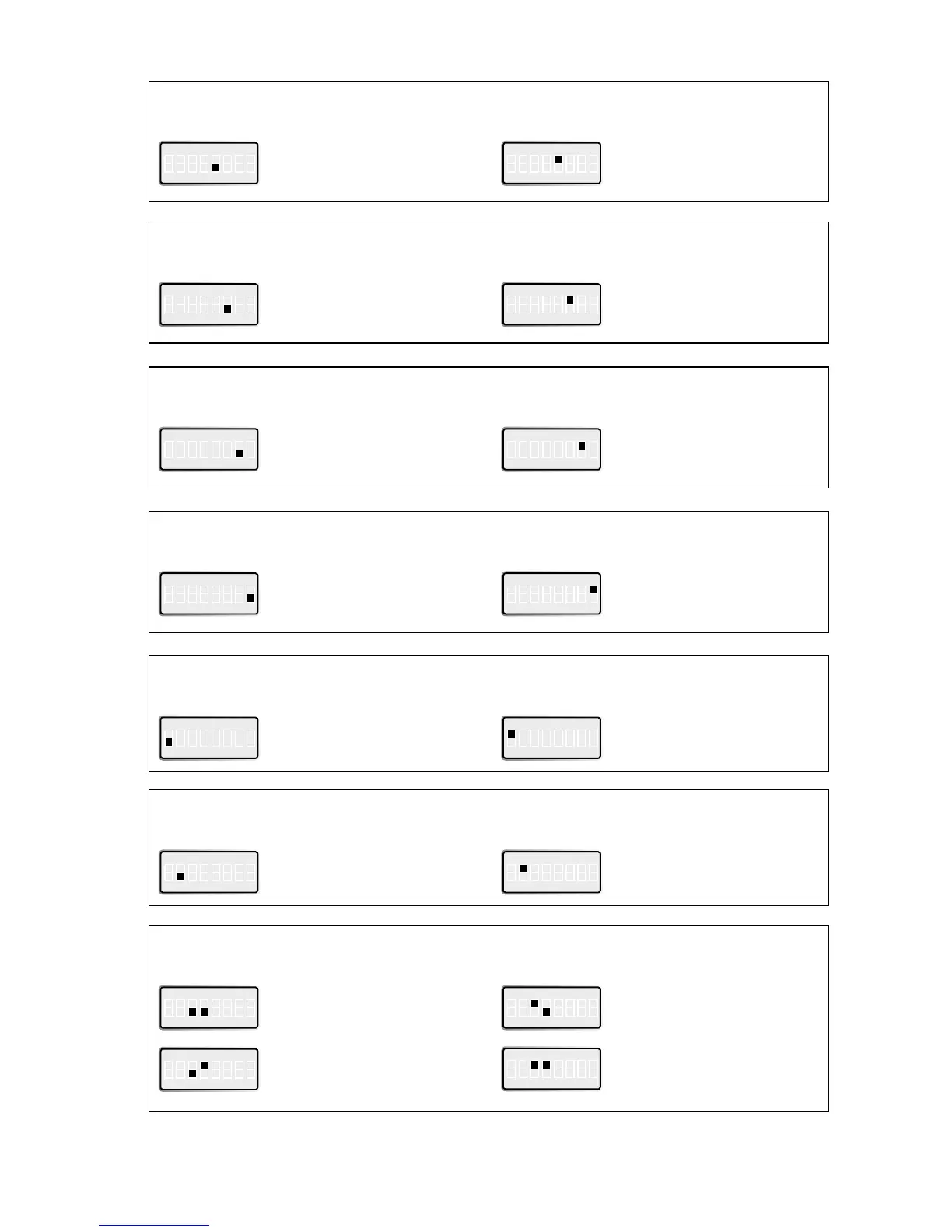

S2 DIP-switch
Selection PSTN backup of Leased Line
ON
1 2 3 4 5 6 7 8
Backup of Leased Line disabled
ON
1 2 3 4 5 6 7 8
Backup of Leased Line enabled
S2 DIP-switch
Remote configuration control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Remote configuration disabled
S2 DIP-switch
Leased Line 2/4 wire selection
ON
1 2 3 4 5 6 7 8
Leased Line 2-wire
ON
1 2 3 4 5 6 7 8
Leased Line 4-wire
S2 DIP-switch
Selection of answering/calling mode for PSTN backed up Leased Line
ON
1 2 3 4 5 6 7 8
Answering
ON
1 2 3 4 5 6 7 8
Calling
S3 DIP-switch
Line mode setting
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Reliable mode enabled (AT\N2)
ON
1 2 3 4 5 6 7 8
Buffer mode enabled (AT\N0)
S3 DIP-switch
Blind dialing
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Enable blind dialing (ATX3)
S3 DIP-switch
Dial abort
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Dial abort disabled (AT&A1)
ON
1 2 3 4 5 6 7 8
Direct Mode enabled (AT\N1)
