SECTIONAL TRUCK SCALE INSTALLATION GUIDE
INSTALLATION STRATEGIES
1. Mount the DLC Smart Boxes as close as possible to the weighing
platform.
2. The DLC Smart Boxes must be mounted in a NEMA rated enclosure,
as the modules themselves are not watertight.
3. Keep cable runs between load cells and the DLC Smart Boxes as short
as possible, to help eliminate the contamination of analog load cell
signals by RFI and EMI interference.
4. Identify the end of the scale where Section 1 will be located. The DLC
Smart Box that connects to Section 1 will be configured as the Primary
DLC.
5. Observe the green Cell/Section label on the DLC Smart Box. This
label is a miniature diagram of your scale. Where the loadcell is
physically connected becomes its “Electronic Address” when
navigating the scale elements during calibration.

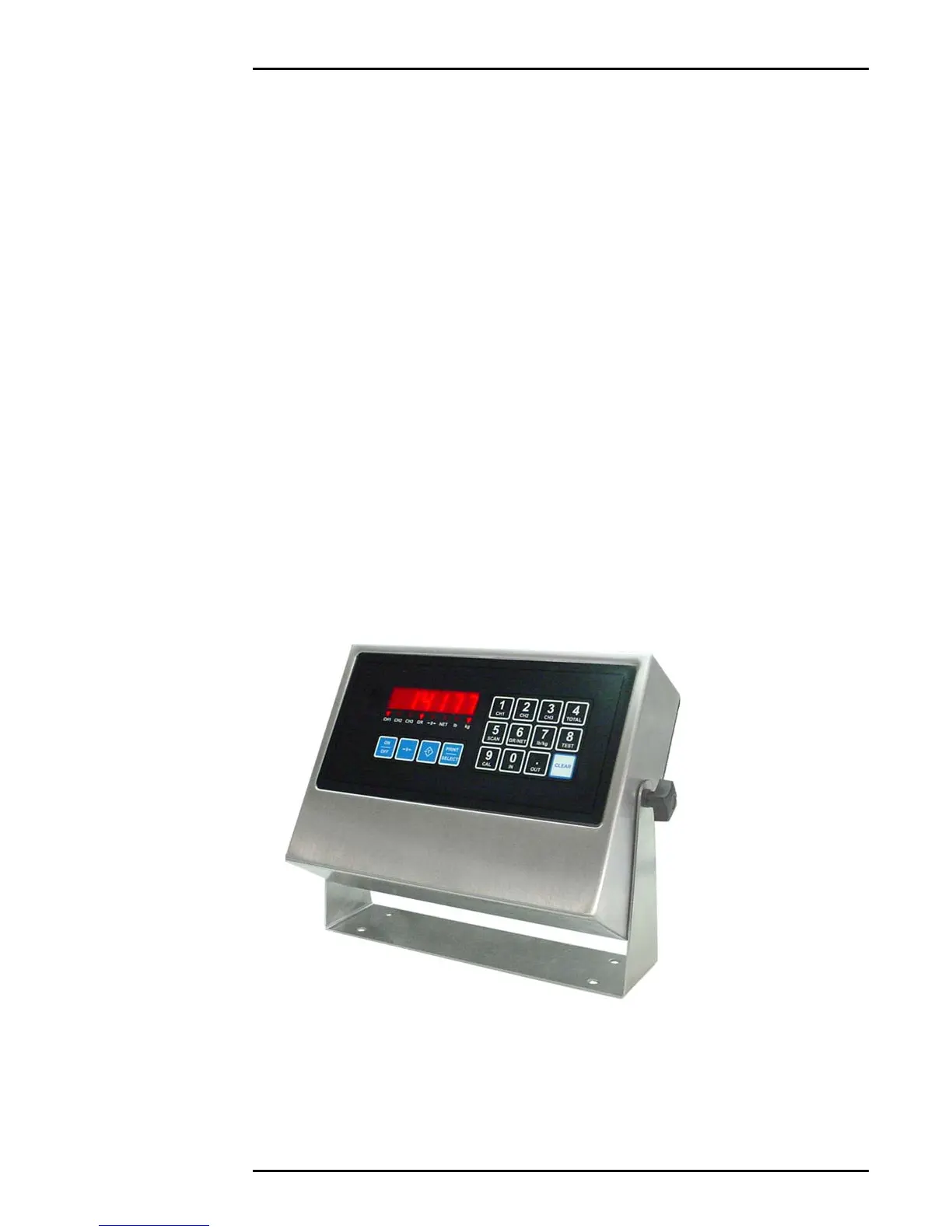

M2000D INDICATOR
