LEONARDO DATALOGGER
User manual
11
Inverter Update for Compatibility with the Leonardo Datalogger
All the inverters of the Leonardo System series, starting from serial 150555 014110 0001 (produced in September
2015), are already prepared for the installation of the Leonardo Datalogger.
However, it is possible to install the Leonardo Datalogger on a previous production inverter, through the installation
of the upgrade cable / kit, which makes the Leonardo System inverter compatible with monitoring operation.
WARNING!
The installation procedure must be carried out with the inverter switched off.
The procedure can only be performed by qualified personnel.

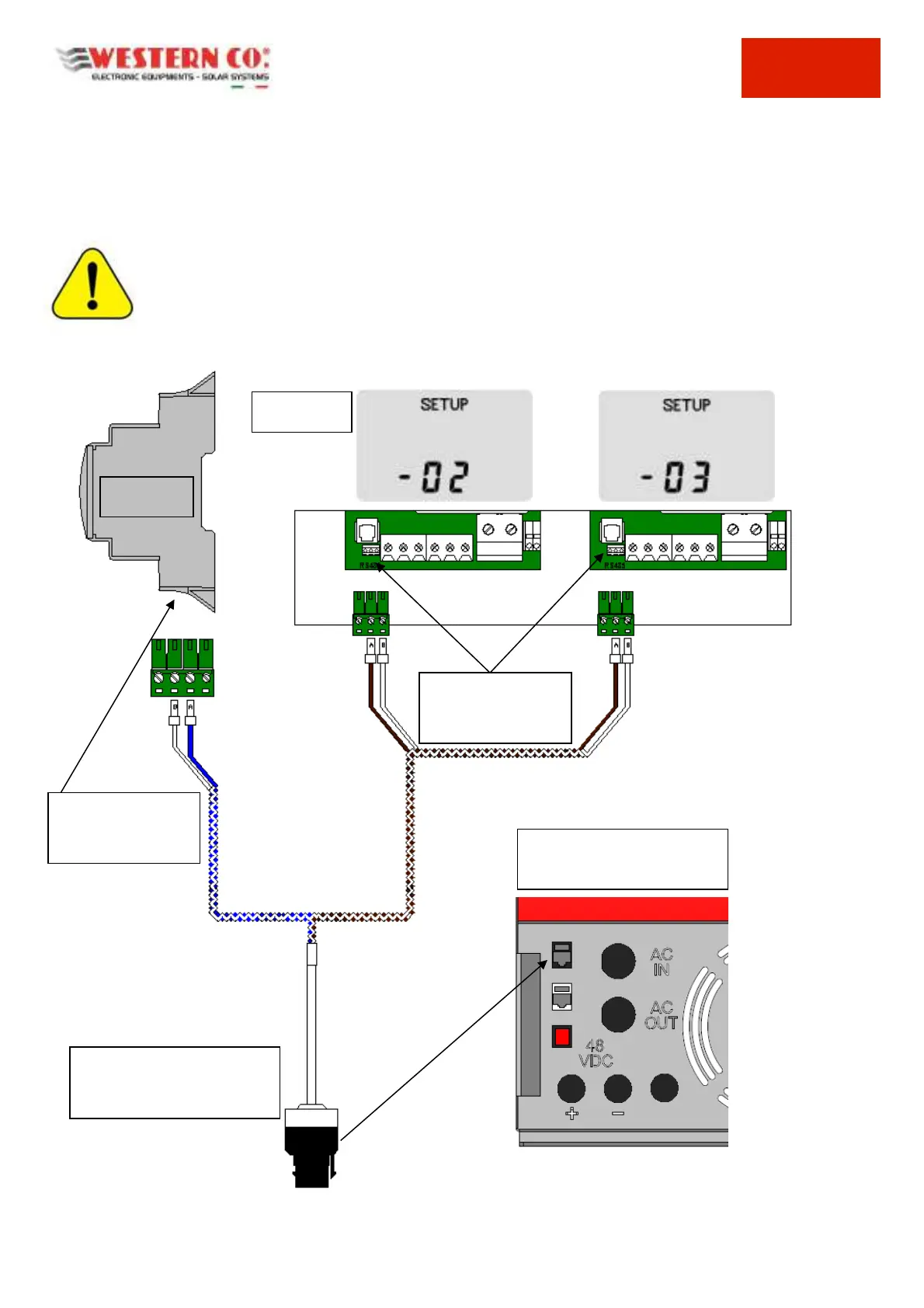

Pic.15 Inverter Update Cable Diagramm
ENERGY MANAGER
Blue white/blue wire
Pin.2 – White/blue
Pin.3 - Blue
INTERNALCONTROLLERS
Brown/white wire
Pin.2 - Brown
Pin.3 – White/Brown
RJ45 PLUG FROM THE PANEL
To be connected to a prearranged
metal bottom container, once the
engraved piece has been removed
PREARRANGED ENGRAVING
Remove the square metal plug,
engraved with an awl
To Next Page
