WESTLOCK CONTROLS CORPORATION
280 MIDLAND AVENUE, SADDLE BROOK, NJ 07663 TEL: 201-794-7650 FAX: 201-794-0913
www.westlockcontrols.com
1/24/12 TECH-455/D.W.O. 19909 Page 16 of 24
WD must be powered on before calibration can take effect.

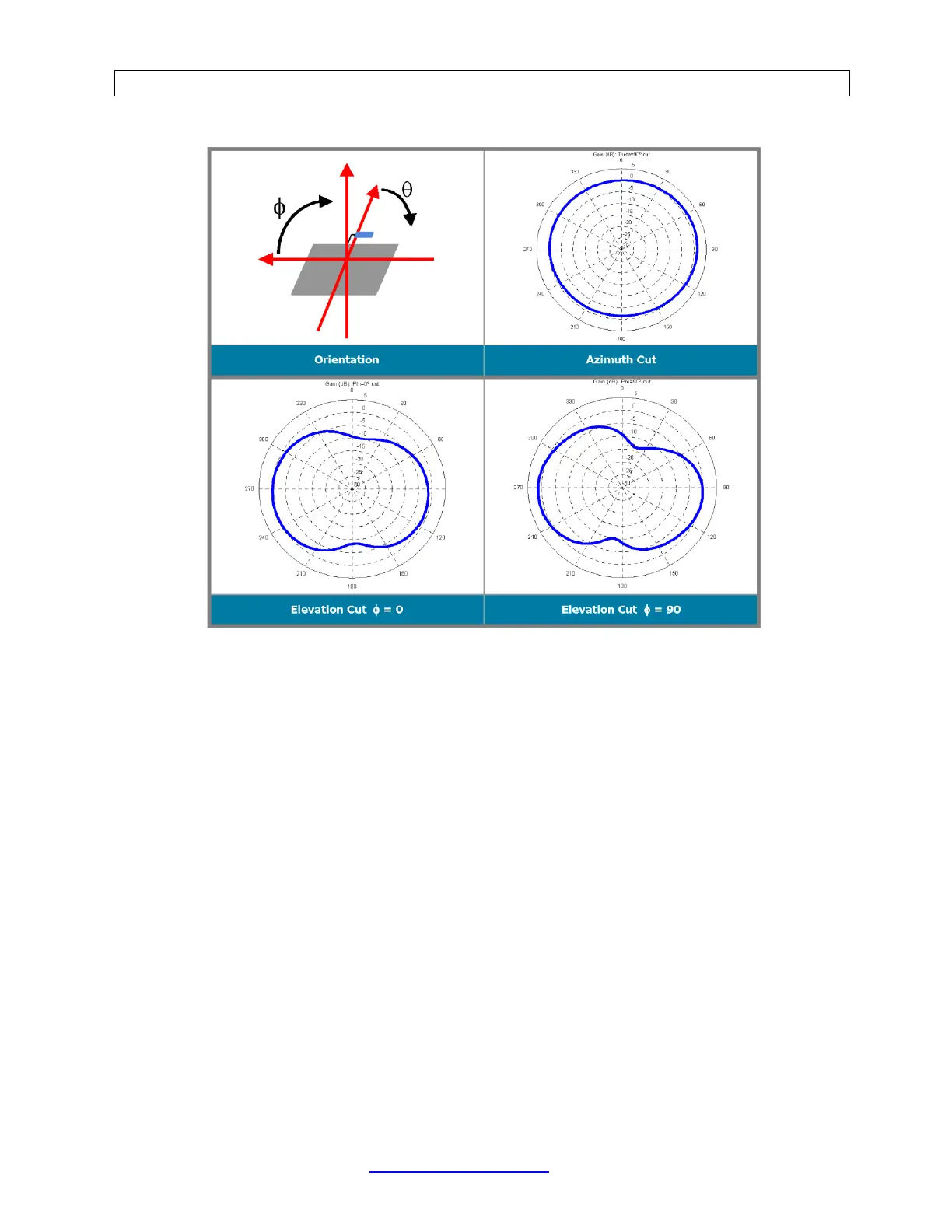

Figure 3 - WD antenna pattern
The WD should be installed, when possible, at least 1 m from the ground and 0.5 m from any
vertical surface.
