OPERATION
WF-5300 Series Pure Sine Wave Inverter
CONTROL/DISPLAY PANEL
The 5300 series inverters are operated with a control panel that is separate from the main
inverter unit, which is usually installed in an electrical compartment. The control panel is typically
wall mounted and allows convenient operation in or near a living area in a vehicle.
The control panel includes two pushbuttons and
a display (see Figure 1). The top pushbutton (1)
controls the inverter power on/o status. To turn
on the inverter, press the power button for about
1 second. If it is on, and you want to turn it o,
press the power button again for about 1 sec-
ond.
When the inverter is on, the display will show the
operational status of the power system in various
ways. The graphic shows whether external ac
power is present, whether the unit is in standby
mode, whether it is inverting, and the battery
charge level. In addition, if there is an overload or
other type of fault condition, this will be shown
on the display.
The lower SELECT pushbutton (2) changes the
information shown with the numeric readout on
the display. Initially it will show the ac output
voltage in rms volts. Each time the SELECT
button is pressed, the display’s numeric readout
will change as shown in Figure 2.

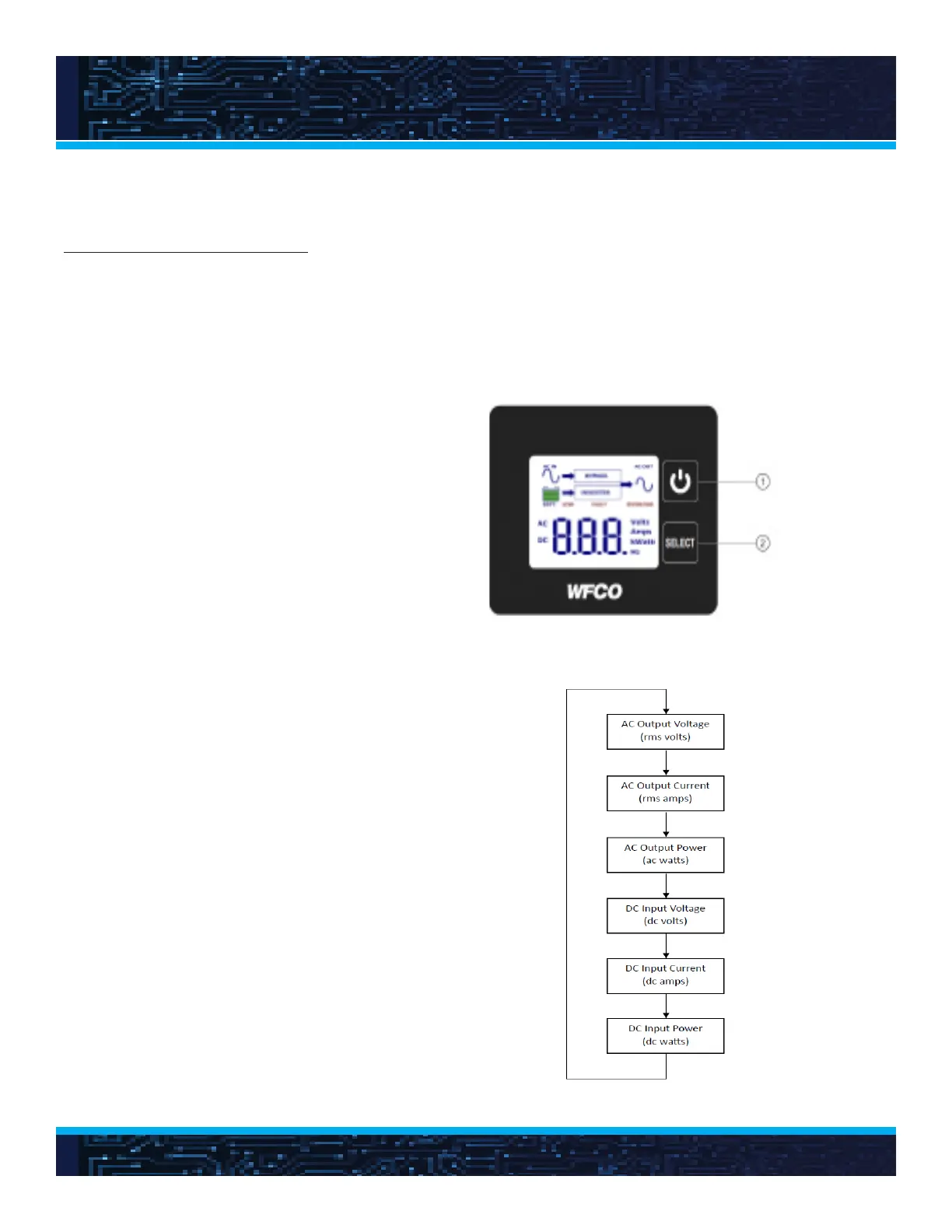

Figure 1. Control Panel
Figure 2. Display Readout Sequence
1
3
