Wiring the DC Fuse Board
Make sure the house battery is disconnected before beginning the DC wiring. Determine
what DC loads are to be connected to the fuse board and what position they will occupy. All
4 circuits on the WF-8712 and WF-8725 Power Centers have up to 20 Amp ATO or ATC
fuses installed. On the WF-8735 and WF-8740 Power Centers, circuits F5 and F6 can be
used for slide-outs or other higher current loads and can have a maximum 30 Amp ATO or
ATC fuse installed. e remaining 4 circuits are general purpose and can have up to 20 Amp
ATO or ATC fuses installed. Make sure the fuses are seated properly.

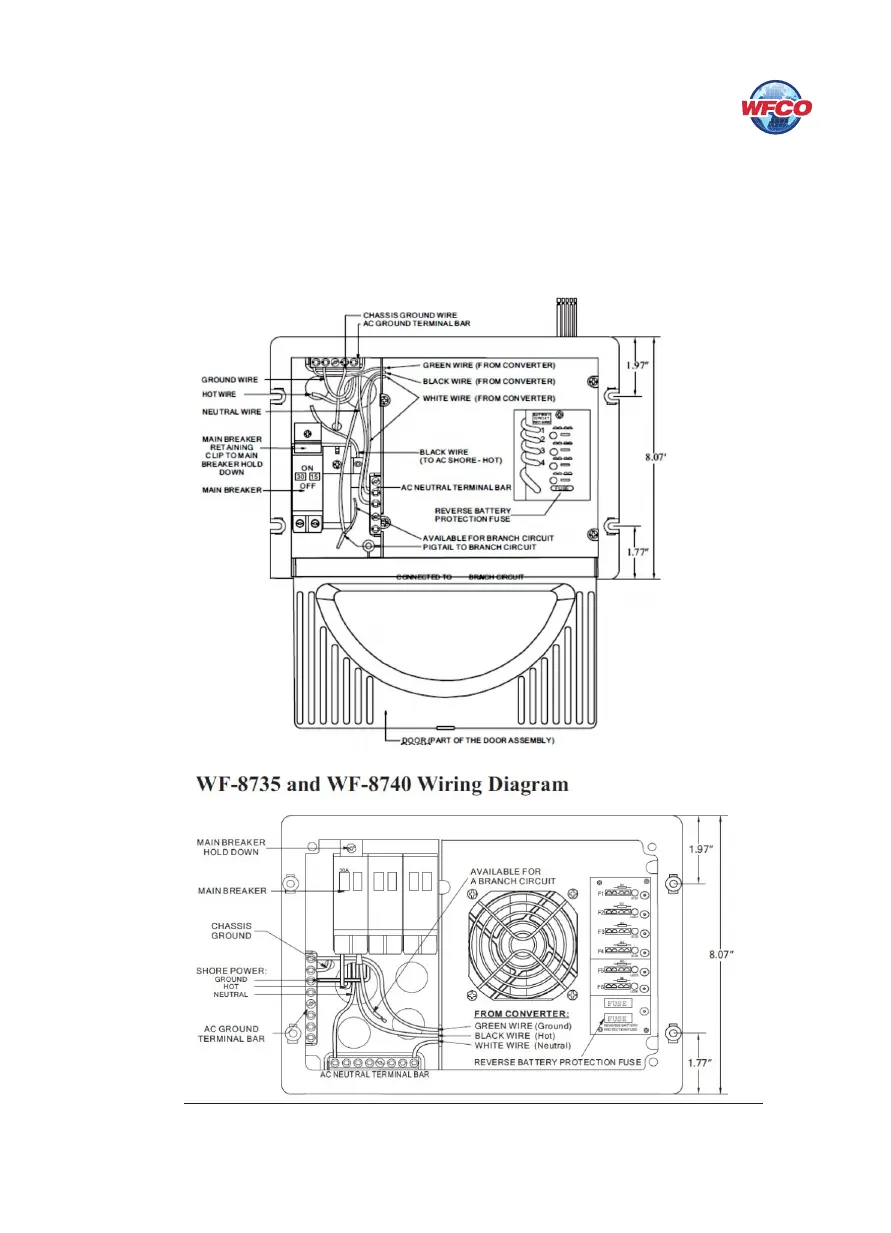

Figure 5
11
