3
REVERSE BATTERY HOOKUP PROTECTION
The WF-9800-AD Series Converter-Chargers will charge the 12-volt house battery if installed.
A battery does not have to be installed for WF-9800-AD Series Converter-Chargers operation.
When a battery is installed, two reverse polarity fuses are installed to protect the converter
circuitry. The fuses are located on the rear panel of the enclosure near the AC power cord (refer
to Figure 1 on the next page). This feature prevents permanent damage to the converter from a
battery connected into the circuit backwards. In addition to protecting the converter-charger, the
reverse polarity fuses are the main connection between the converter-charger and the DC fuse
board of a distribution center.

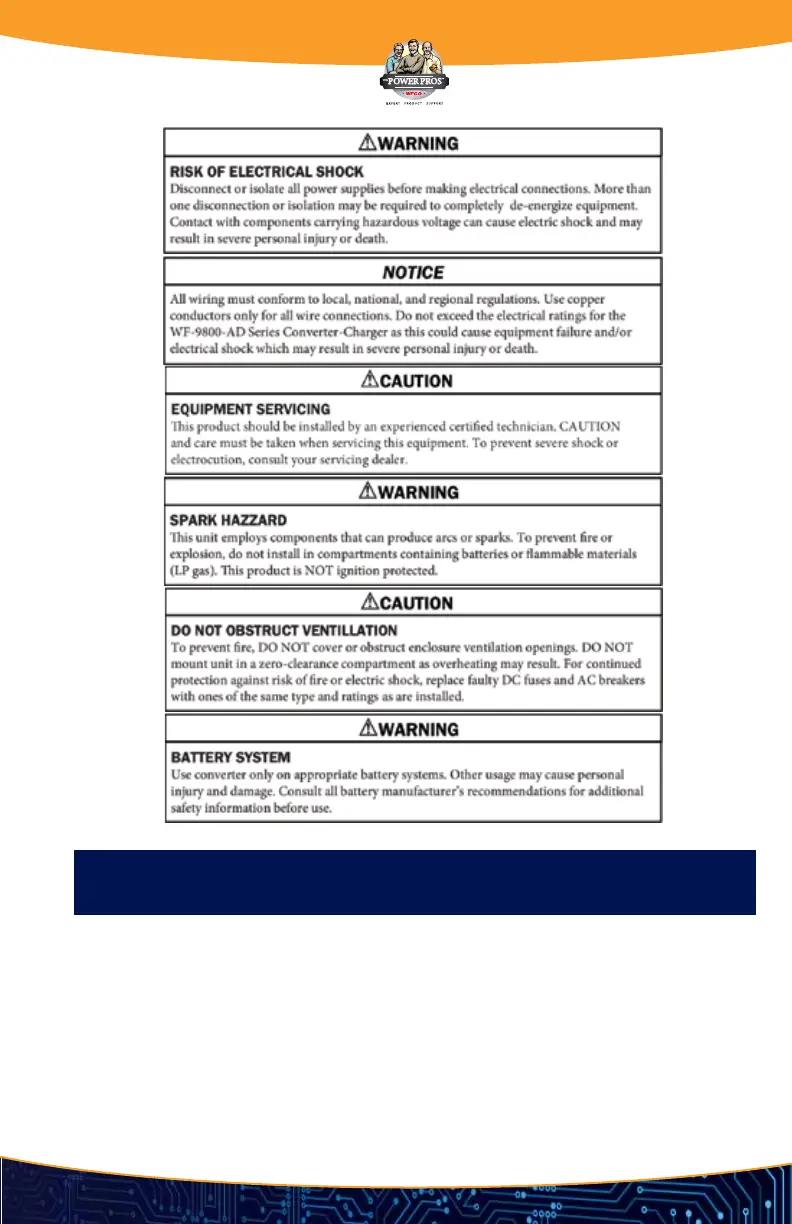

SAFETY AND PROTECTION FEATURES
WF-9800-AD Series Converter-Charger Safety Features
