Receiver and servo Link example
CH6
FLAP
CH5
UNDERCARRIAGE
CH4
RUDDER
CH3
THROTTLE
CH2
ELEVATOR
CH1
AILERON
CH7
AILERON 2/AUX 1
- Airplane

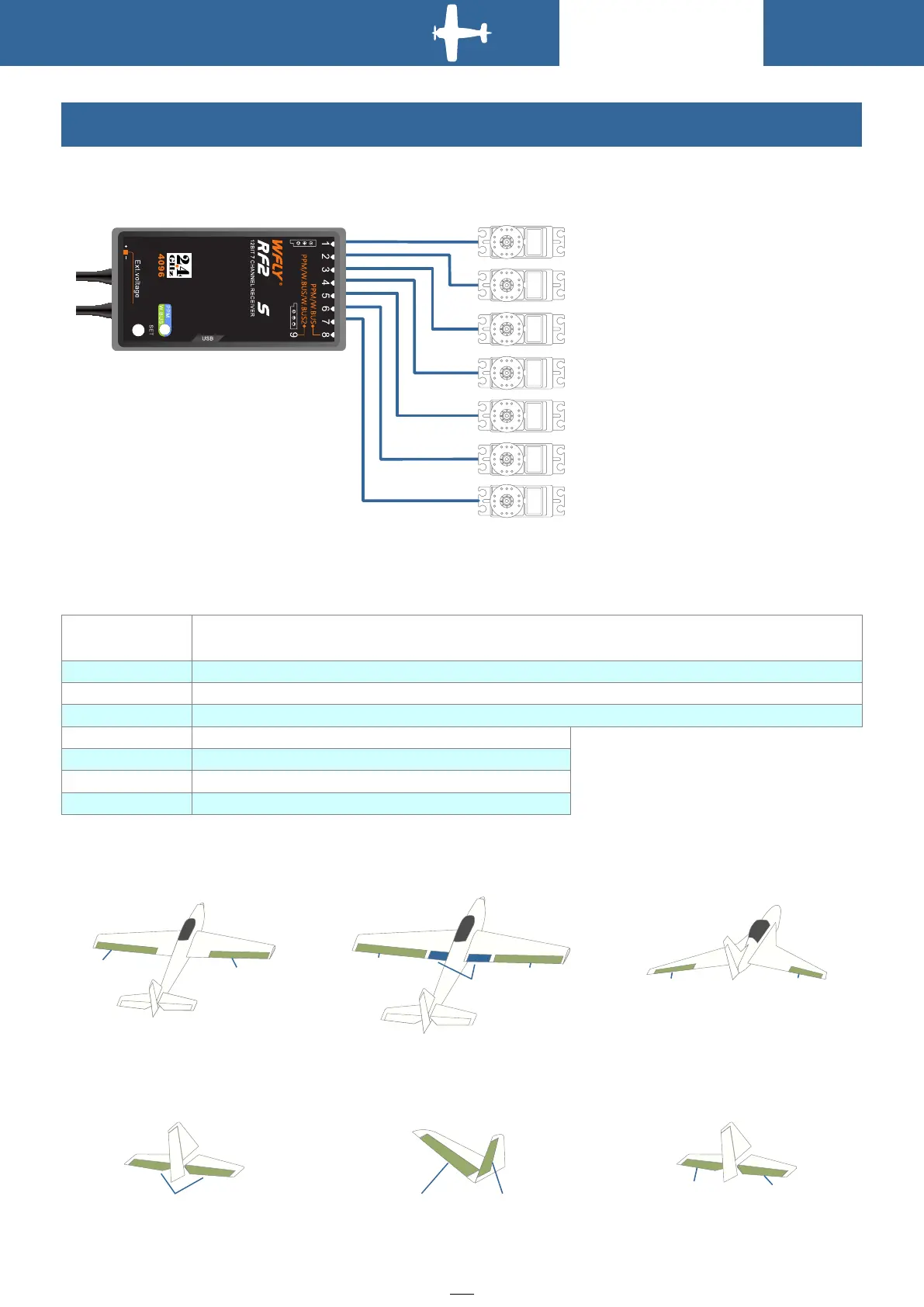

The figure below shows an example of airplane Link. Please use the actual wing type and tail type for
servo Link.
Wing
Tail
(Normal)
ELE
(CH2)
(V-Tail)(*4)
ELE2
RUD1
(CH4)
ELE1
RUD2
(CH4)
(Ailvator)
AIL3
(CH2)
ELE1
(CH1)
ACRO(Flaperon)(*2)
AIL1
FLP2
(CH1)
AIL2
FLP1
(CH6)
ACRO(AIL Differential)(*1)
FLP
(CH6)
AIL1
(CH1)
AIL2
(CH7)
ACRO(Ailvator)(*3)
AIL1
ELE2
(CH1)
FLA2
ELE1
(CH2)
Servo connection position (Airplane)
The table below shows examples of the servo connection positions for the different wing types and tail
types.
Airplane(ACRO)
1
Aileron/Aileron1(*1)1Aileron1(Aileron2)(*2)/Aileron1(Elevator2)(*3)
2
Elevator/Elevator1(Aileron2)(*3)/Elevator1(Rudder2)(*4)
3
Throttle
4
Rudder/Rudder1(Elevator2)(*4)
5
Spare/undercarriage
6
Spare/Flap/Flap1(Aileron 2)(*2)
7
Spare/Aileron2(*1)
Receiver
output channel
(*1)When it's AIL Differential
(*2)When it's Flaperon
(*3)When it's Ailvator
(*4)When it's V-Tail
