Basic Operation

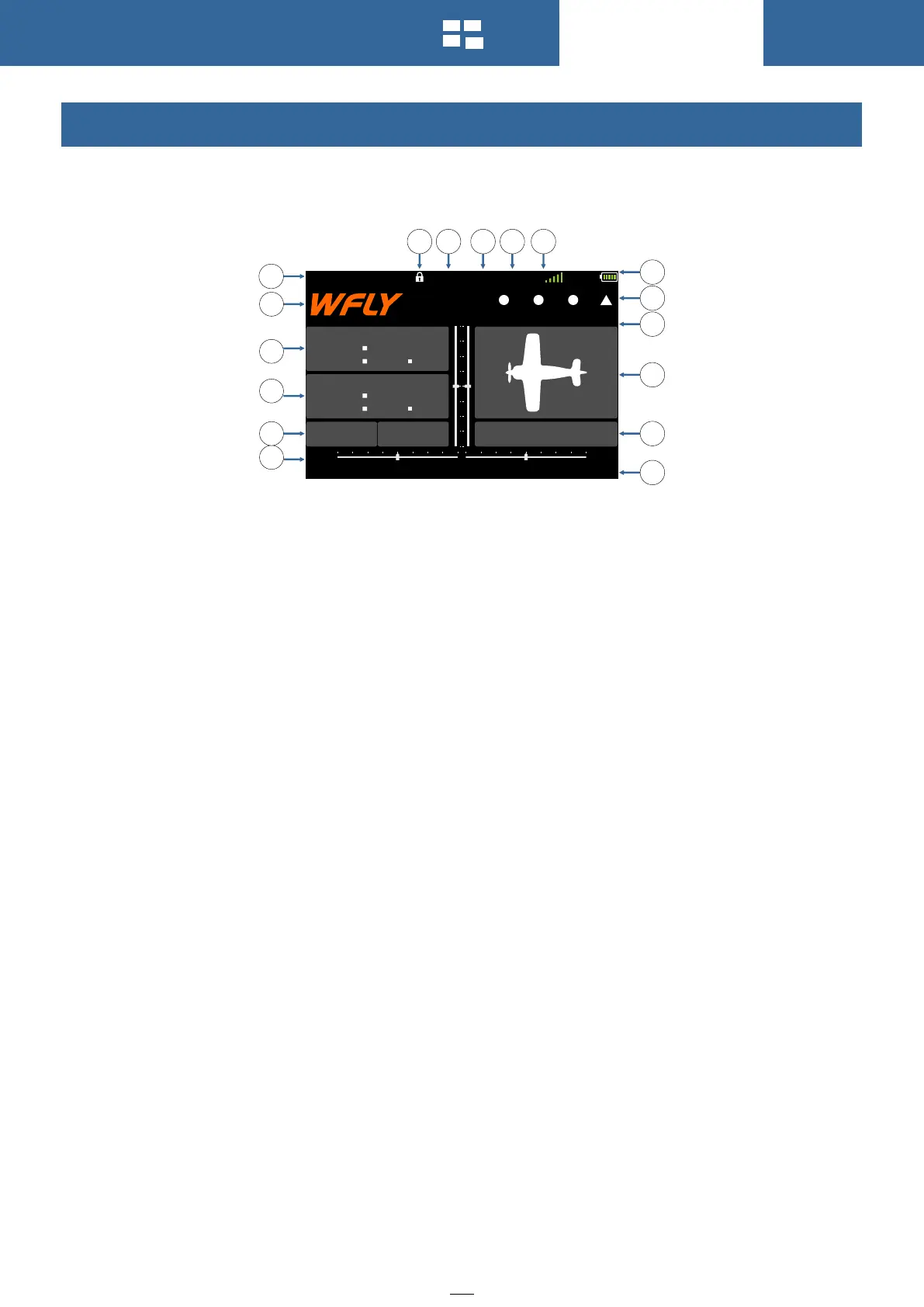

Home Interface Introduction
Operation and Introduction
1.Transmitter model
2.LOGO, Click to enter main menu 3.Normal Timer :Click and hold for reset,slightly click for start/pause
4.Mode Timer:Click and hold for reset,status is set by(Timer)menu
5.Voltage:Receiver voltage,external
5.Return data(External battery)
6.Trim monitor:display active trimming status
7.Boot time:The accumulation boot time , shutdown reset
8.Model name: Click to enter model selecting interface
9.Model types:Click to enter current machine type Interface
10.User name:click into user defined name
11.Trim status:display T1-T4 trim status(T1-T4 while the switch being used),more details please
refer to(Aux Channel)and[Trim Setting]
▲ me ans the pos ition is "up"
● means the position is "neutral”
▼ me ans the pos ition is "dow n"
12.Transmitter battery capacity
13.Receiver signal strength
14.Fly mode(Throttle lock,normal,Idle1,Idle2)
15.Mixing:Display the mixing after ACT the mixing function
16.Working mode:Display then ACT mode(Trainer,simulator,student)
17.Screen locking state : Press EXIT key for 2 seconds to toggle,
Advanced Lock state : Press EXIT key ten times, and then press it for 2 seconds to unlock.
