Connections - MX-218B
DISCRETE 8 OHM SUBWOOFER

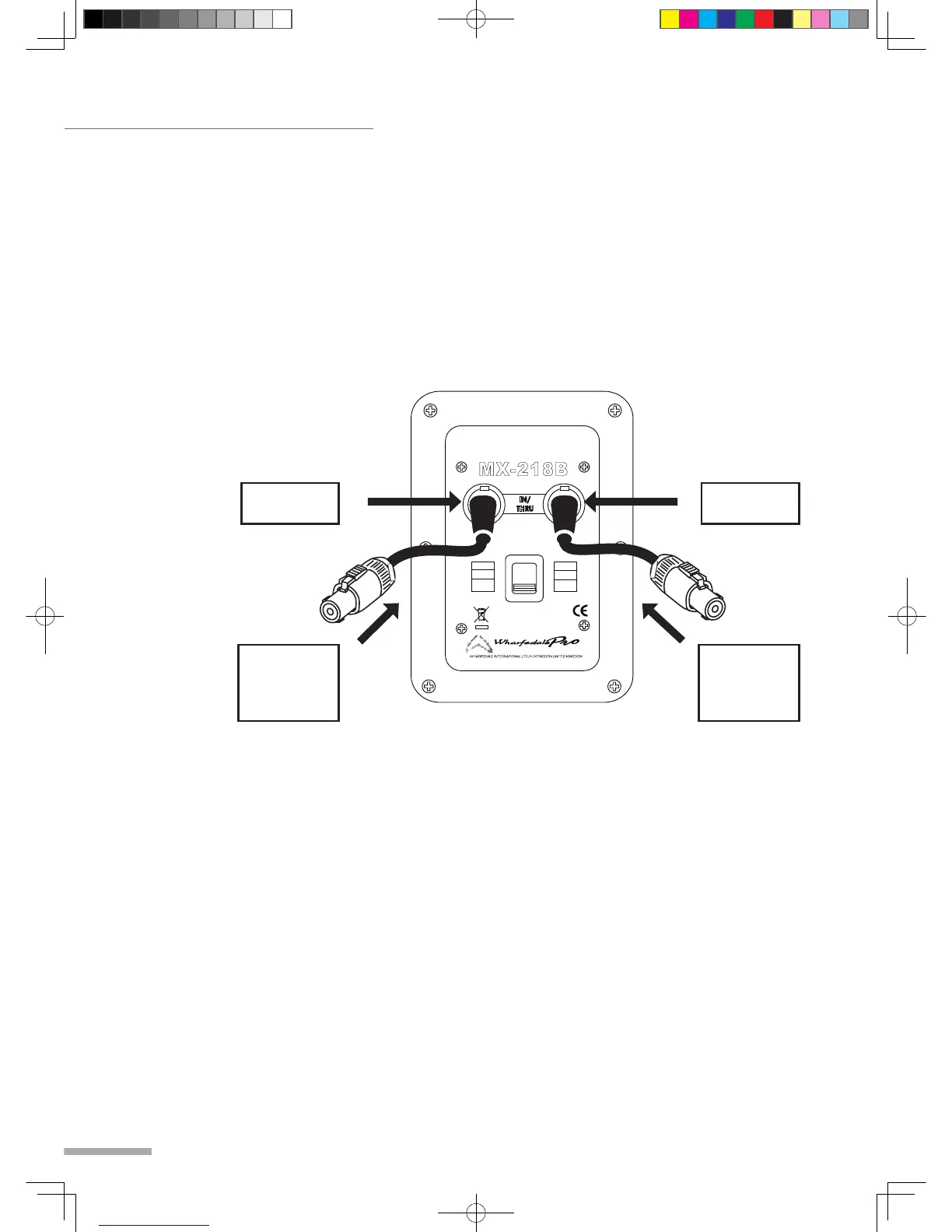

CONNECTIONS (MX -218B ONLY)
MX-218B
1600 WATTS CONTINUOUS
3200 WATTS PROGRAM
IMPEDANCE:
LF 2+,2 -
LF 1+ ,1 -
DI SCR ETE
1+ ,1-
LF /LF
2+ ,2-
PARALLE L
UN USED
PARALLE L
DISC RETE
PARALLEL: 4 OHMS
DISCRETE: 8 OHMS x 2
IMPEDANCE:
NL-4 WIRED
PIN 1+ & PIN 1-
OUTPUT
FROM LOW
FREQUENCY
AMPLIFIER
CHANNEL 1
NL-4 WIRED
PIN 2+ & PIN 2-
OUTPUT
FROM LOW
FREQUENCY
AMPLIFIER
CHANNEL 2
