Connections

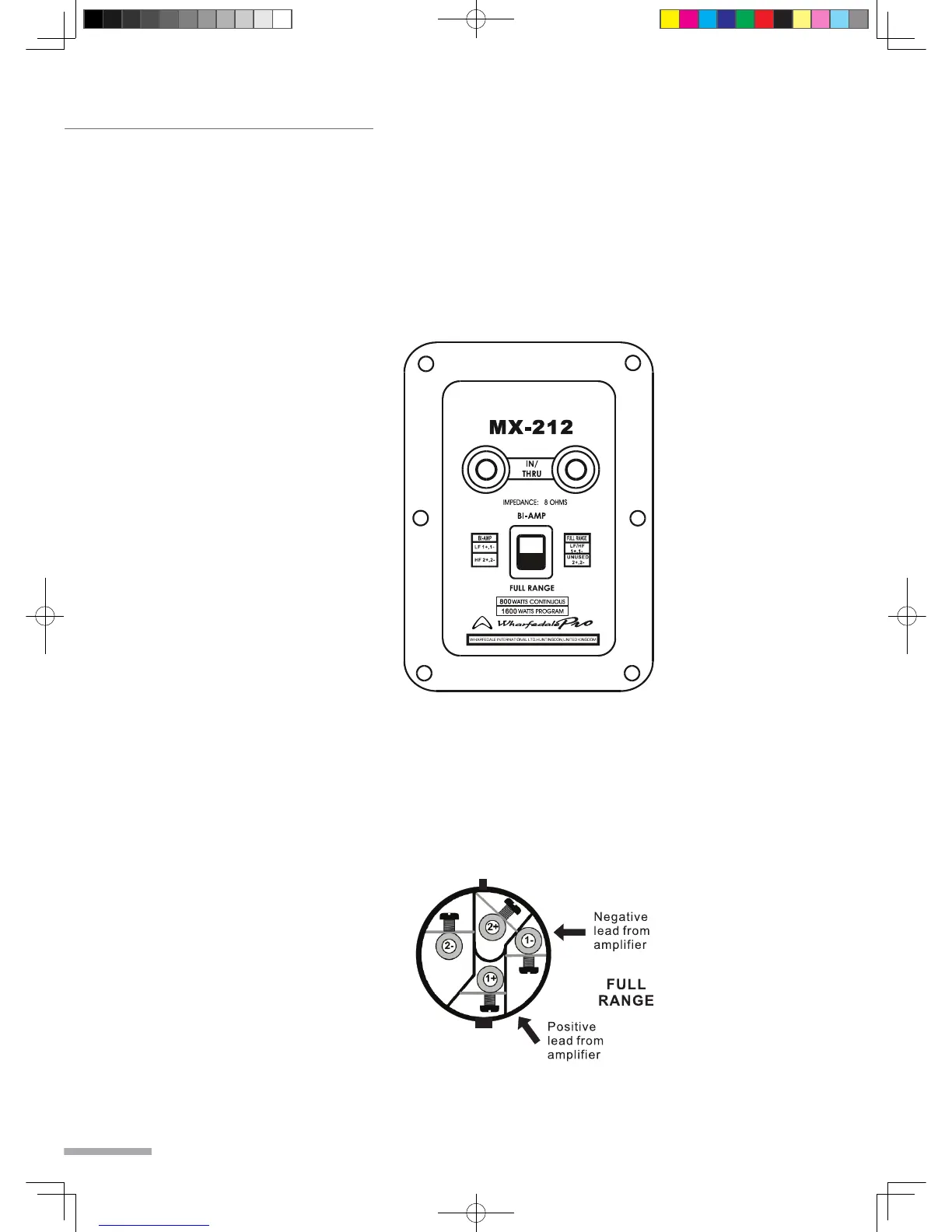

MX Series Two Way Connector Plate
FULL RANGE connections
FULL RANGE wiring connections from the output of the amplifier to the MX loudspeaker are
made via NL4-type connectors located on the rear mounted input plate on each MX Series
model.
Connector pin wiring is configured as follows:
1+ = Positive
1 - = Negative
