6
(For quick setup of two way enclosures in Full Range mode)
- Make all initial connections with the power switches OFF on all equipment.
- Check that all master volume, level, or gain controls are turned all the way down.
- Connect the line-level outputs from the system mixing console to the inputs of
the system power amplifier.
- Connect the Speaker Output from the power amplifier or powered mixer to the INPUT
connector on the MX Series two-way speakers with appropriate speaker cables.
- Turn on the mixing console (or other signal source).
- With the level controls all the way down, turn on the amplifier.
- Send a signal source through the mixer, such as a microphone or instrument. Gradually
adjust the volume controls on the mixer and amplifier accordingly.

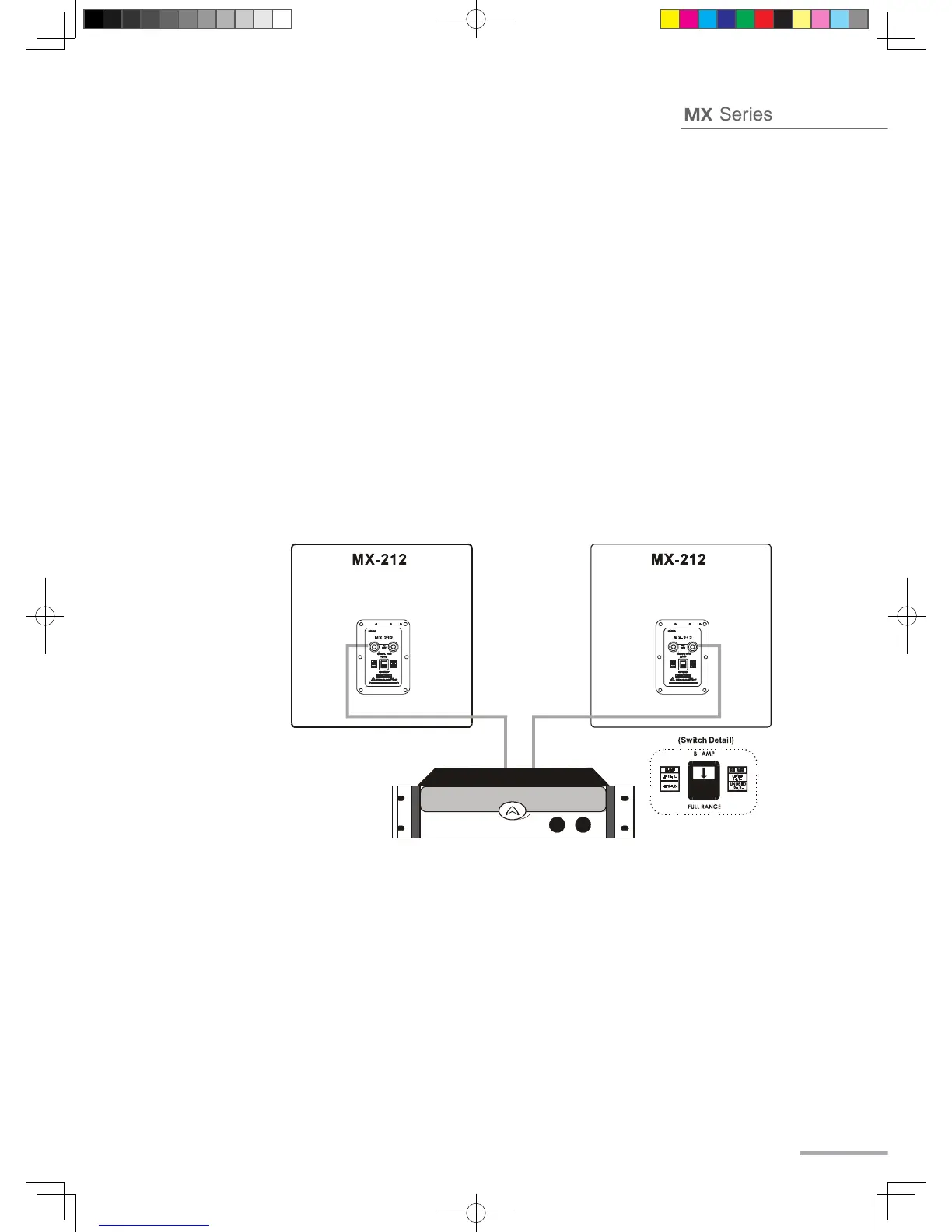

BASIC MX-212 FULL RANGE HOOKUP TO STEREO AMPLIFER
Quick-Start for Two Way Enclosures
