Sheet 4 of 6
Figure 4.

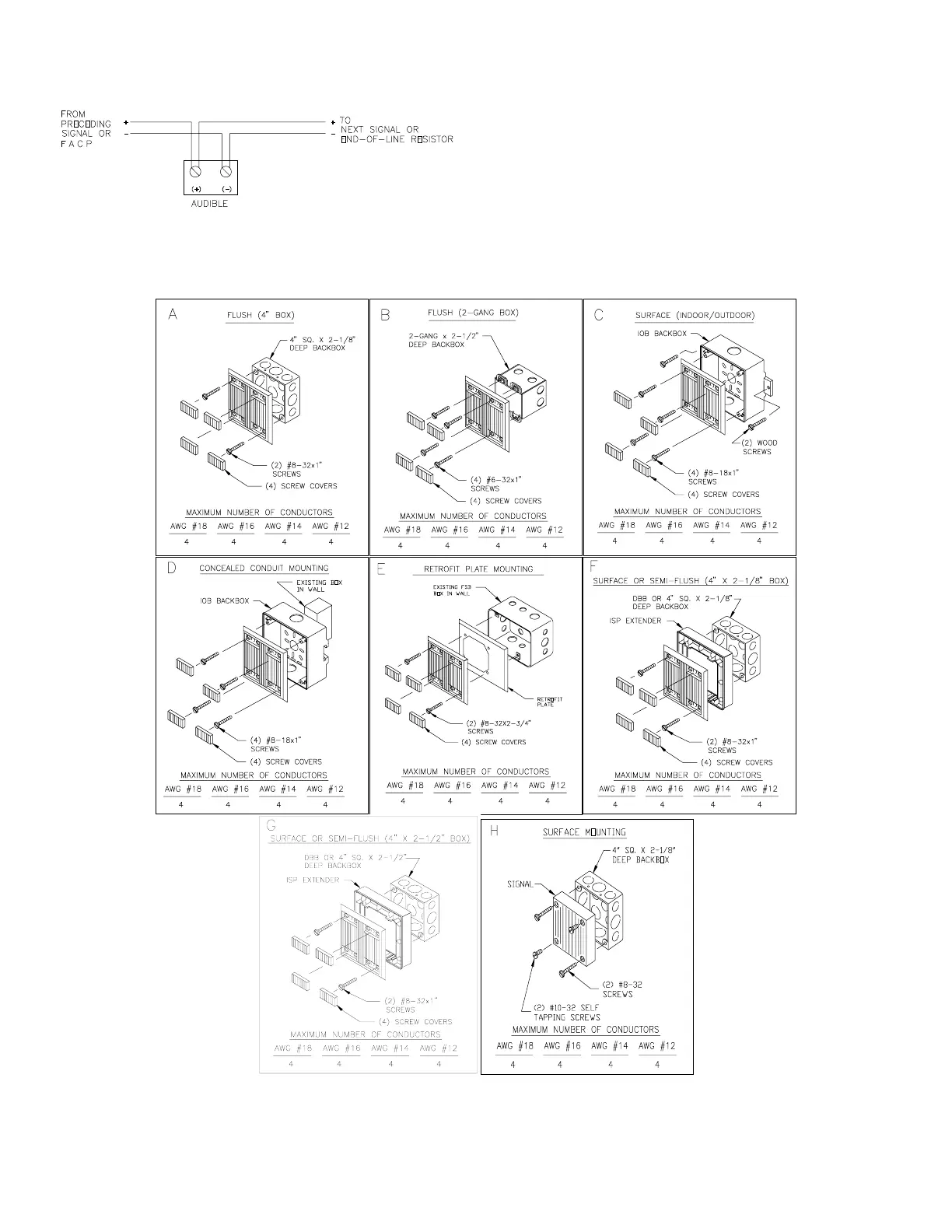

Multitone Appliance Wiring Diagram
1) Strip leads 3/8 inches and connect to screw terminals.
Multitone Appliances have in-out wiring terminals that
accepts two #12 to #18 American Wire Gauge (AWG) wires
at each screw terminal.
2) Break all in-out wire runs on supervised circuits to assure
integrity of circuit supervision. The polarity shown in the
wiring diagram is for operation of the appliances. The
polarity is reversed by the Fire Alarm Control Panel (FACP)
during supervision.
MOUNTING OPTIONS:
APPLICATION NOTES:
To Next Page
