27

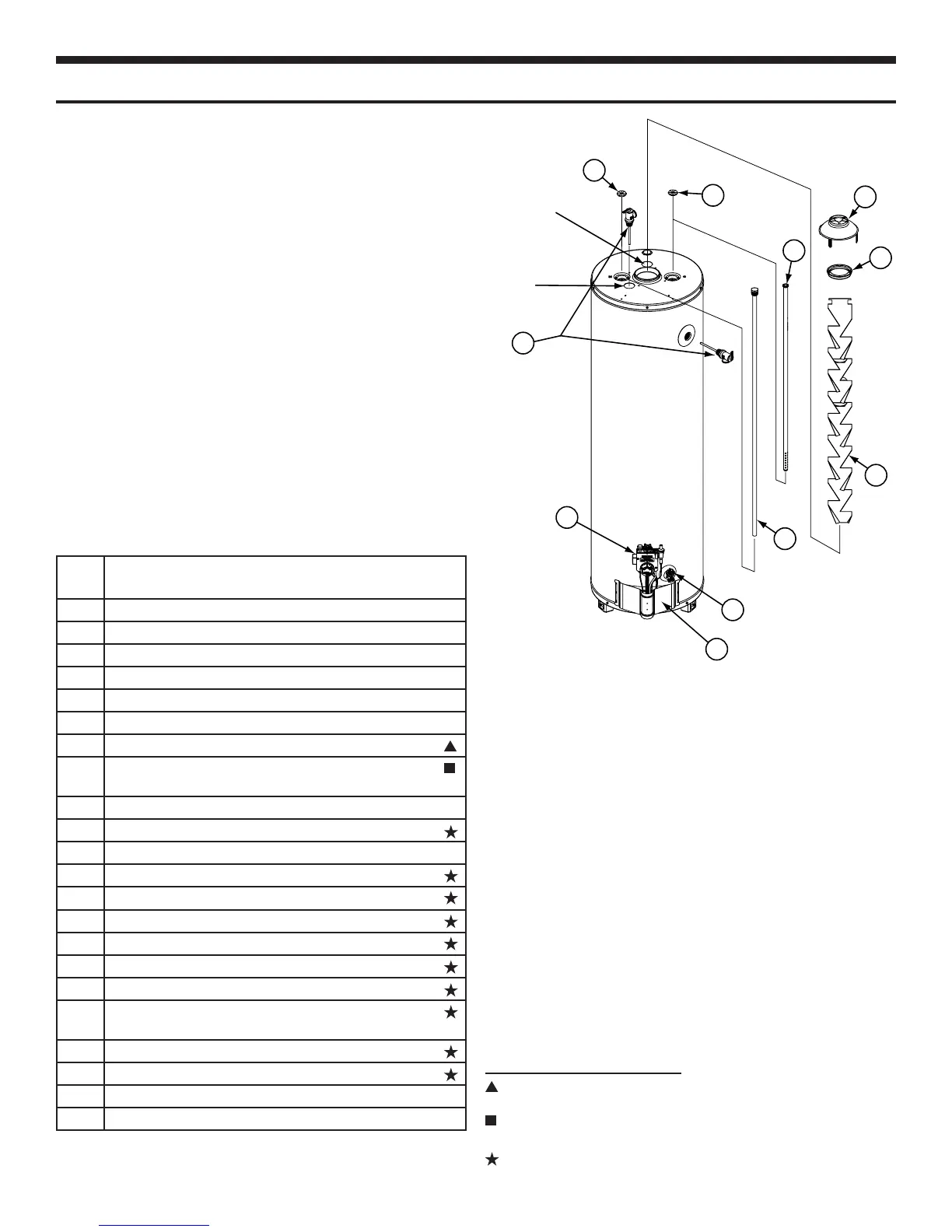

REPAIR PARTS ILLUSTRATION
*Pictured on next page.
When ordering repair parts always give the following
information:
1. Model, serial, and product number
2. Type of gas
3. Item number
4. Parts description
Repair Parts List
LEGEND
Special anode rod (see Anode Rod/Water Odor
section)
Temperature and Pressure Relief Valve is required,
but may not be factory installed
Unique: Flame Lock
™
Safety System parts
11
9
7
6
1
2
3
8
5
4
Alternate anode
location for top
T&P
Anode location
for side T&P
10
Item
No.
Parts Description
1 DRAFTHOOD
2 REDUCER RING - SOME MODELS
3 FLUE BAFFLE
4 HEAT TRAP (COLD) - SOME MODELS
5 HEAT TRAP (HOT) - SOME MODELS
6 COLD WATER DIP TUBE
7 ANODE ROD
8 TEMPERATURE & PRESSURE RELIEF VALVE
(LOCATED TOP OR SIDE)
9 DRAIN VALVE
10 GAS CONTROL VALVE/THERMOSTAT
(with wire leads)
11 OUTER DOOR
12* PILOT ASSEMBLY KIT (Natural Gas)
13* PILOT ASSEMBLY KIT (L.P. Gas)
14* BURNER (Natural Gas/Low Nox)
15* BURNER (L.P. Gas/Low Nox)
16* MANIFOLD DOOR ASSEMBLY (Natural Gas/Low Nox)
17* MANIFOLD DOOR ASSEMBLY (L.P. Gas)
18* TWO PIECE WIRE CONNECTOR
WITH RETAINER CLIP
19* MANIFOLD DOOR GASKET
20* VIEWPORT ASSEMBLY
21* PIEZOELECTRIC IGNITER BUTTON
22* THERMOCOUPLE
To Next Page
