28

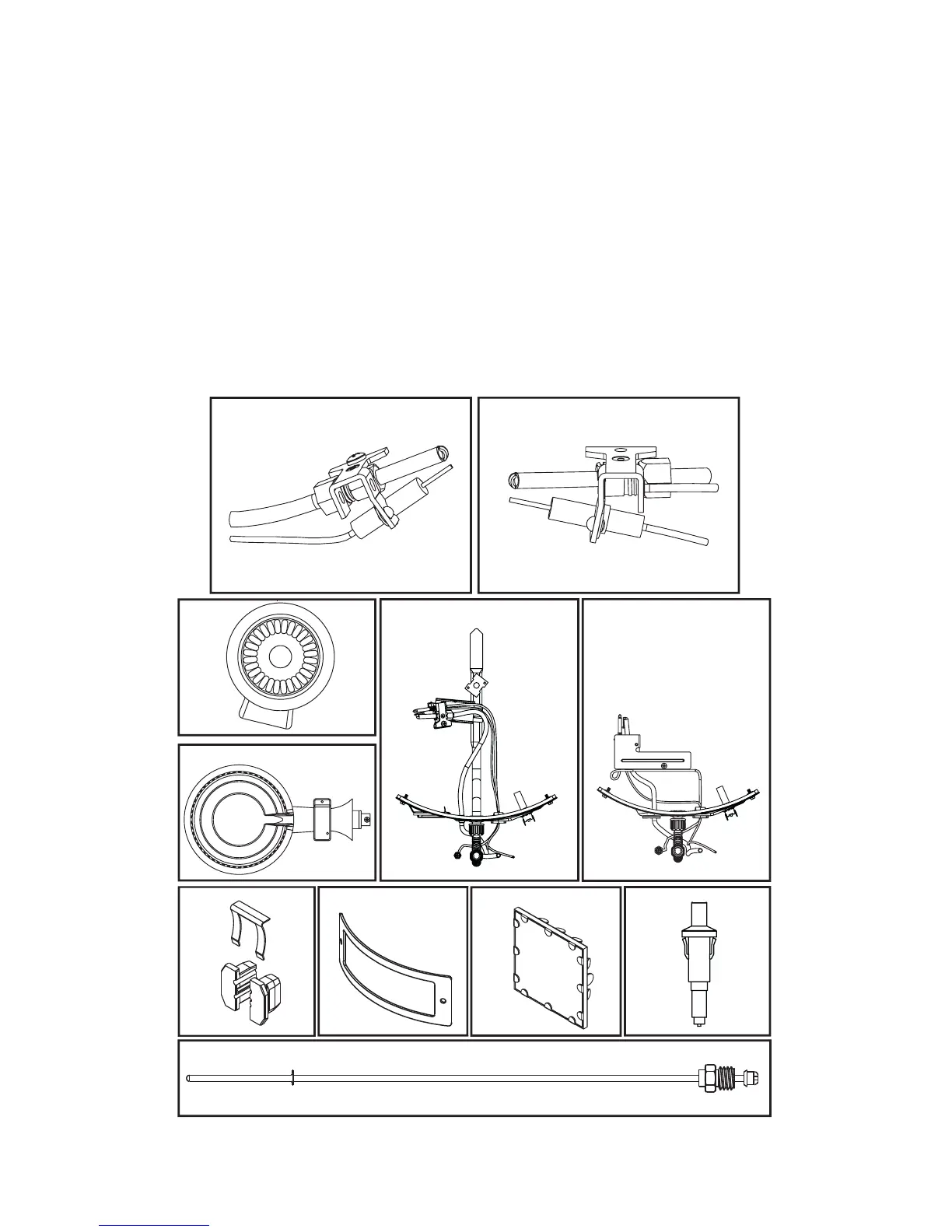

Listed Parts Kits and Illustrations
Item 12: Pilot assembly kit, which contains the pilot assembly, igniter electrode and retainer clip (Natural Gas)
Item 13: Pilot assembly kit, which contains the pilot assembly, igniter electrode and retainer clip (L.P. Gas)
Item 14: Burner (Natural Gas/Low Nox)
Item 15: Burner (L.P. Gas)
Item 16: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece wire
connector with retainer clip, thermal switch, and pilot assembly. (Natural Gas/Low Nox)
Item 17: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece wire
connector with retainer clip, thermal switch, and pilot assembly. (L.P. Gas)
Item 18: Contains two piece wire connector and retainer clip
Item 19: Contains manifold door gasket
Item 20: Contains viewport
Item 21: Contains piezoelectric igniter button
Item 22: Contains thermocouple
WHIRLPOOL, FLAME LOCK & DESIGN, and FLAME LOCK are trademarks of Whirlpool, U.S.A. © 2006 Whirlpool Corporation. All rights reserved.
Manufactured under license by American Water Heater Company, Tennessee.
Item #13
Item # 14
Item # 15
Item # 16 Item # 17
Item # 12
Item # 18
Item # 19 Item # 20
Item # 21
Item # 22
