Cooking Products Service Manual
Original March, 1997 4322167
Page 2-13

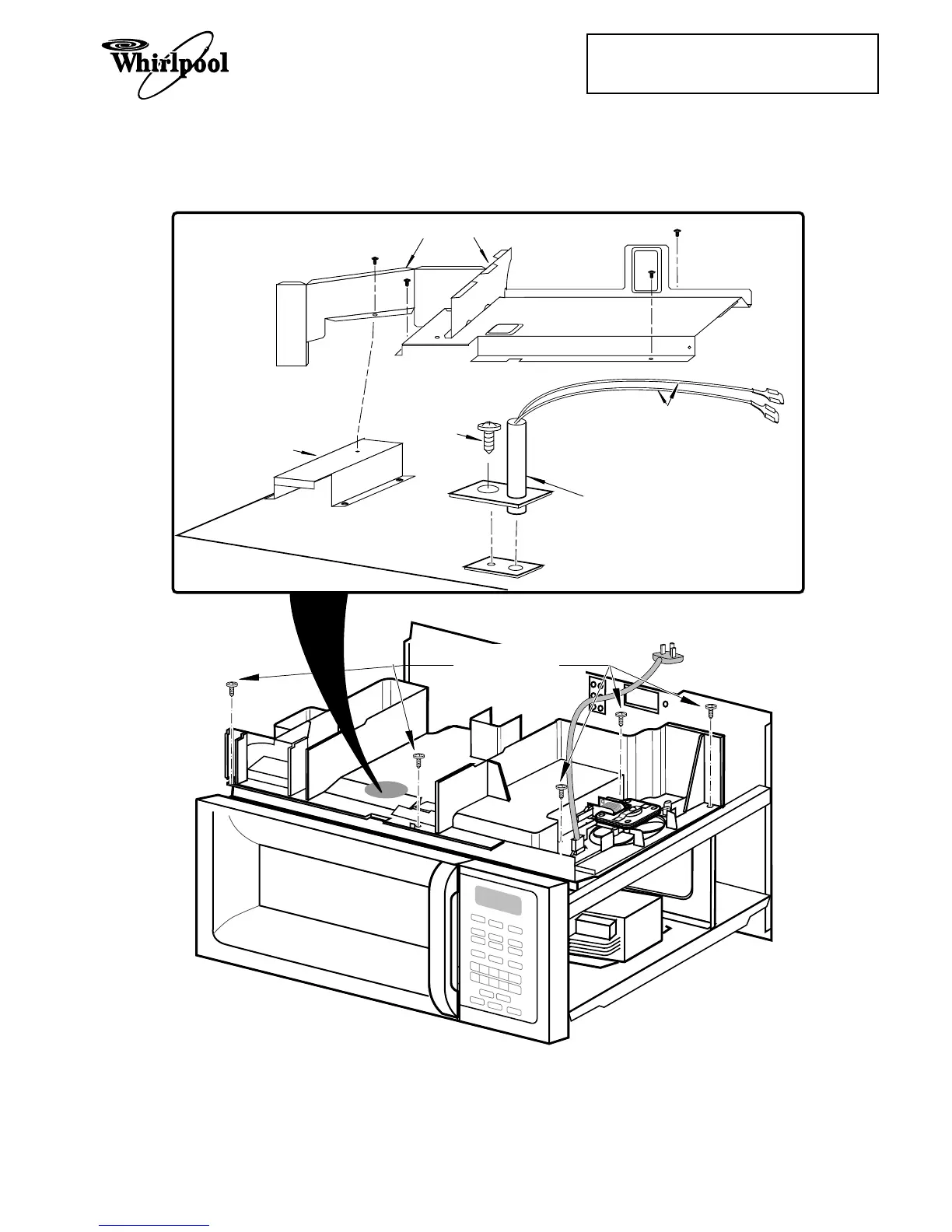

REMOVE FIVE
AIR DUCT SCREWS
PHILLIPS
SCREW
SENSOR
COVER
CONVECTION
THERMISTOR
WHITE WIRES
CAUTION: WHEN REPLACING THE
THERMISTOR, DO NOT CUT AND SPLICE
THE WHITE WIRES, OR AN IMPROPER
SIGNAL WILL BE SENT FROM THE THERMISTOR
TO THE MICROCOMPUTER BOARD
BRACKETS
CIRCULATION
PULLEY COVER
