BLOWER MOTOR
CAPACITOR
AIR DUCT
THE BLOWER MOTOR CAPACITOR

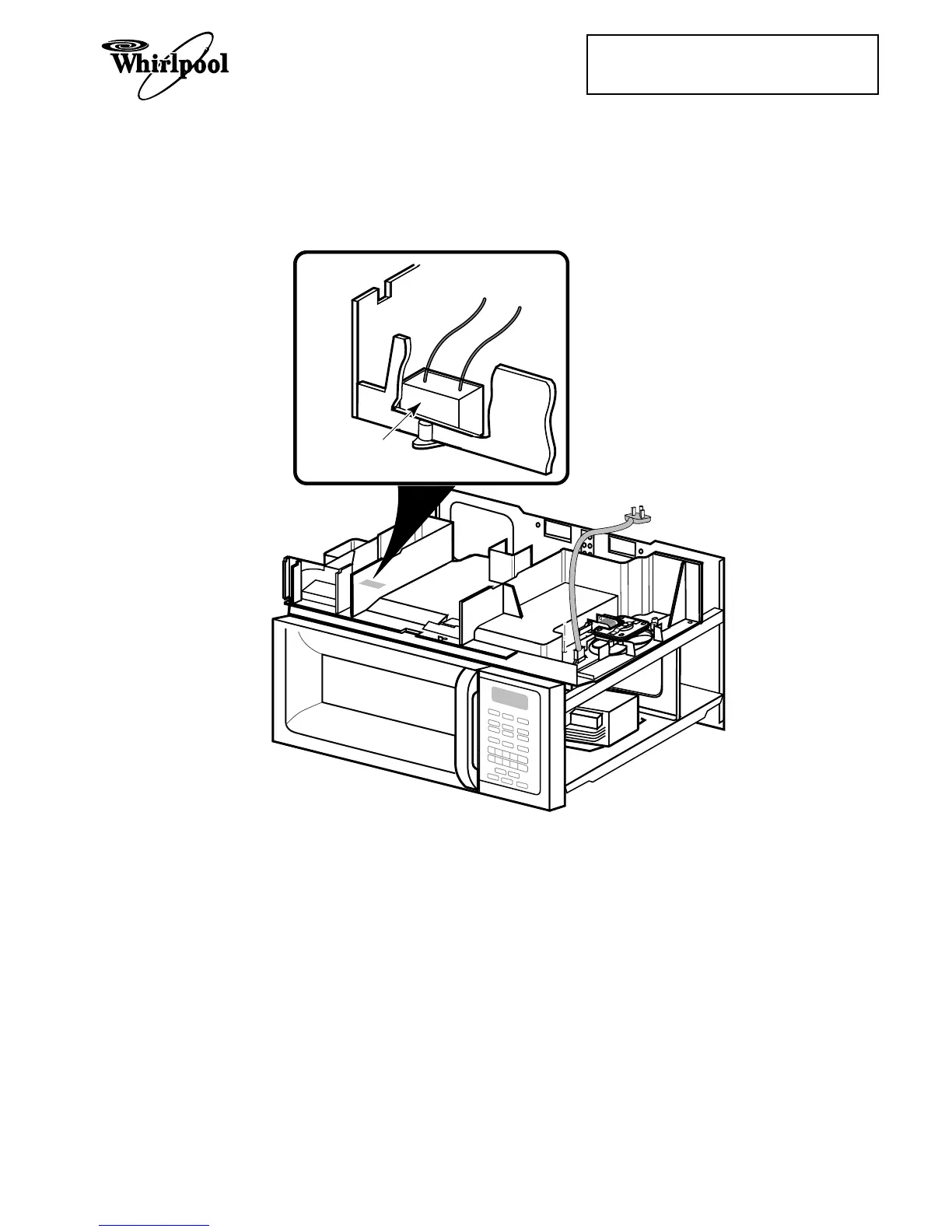

The blower motor capacitor is located below
the air duct at the indicated location. It is in
use any time the blower (vent) motor is oper-
ating. The capacitor helps to maintain a con-
stant voltage to the blower motor so that it
runs more efficiently.
TESTING
1. Set the ohmmeter to the
R x 10K
scale.
2. Measure across the capacitor terminals.
The ohmmeter should indicate several
ohms, then gradually return to infinity.
